Weuaste 6.25 motorcycle 22mm bar clamp

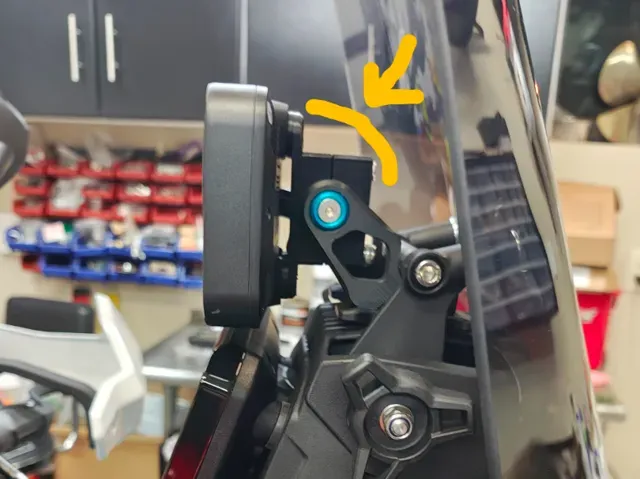

This bracket design solves a few issues with the included Weuaste hardware.  Weuaste only includes a ¼ center thread point for a ball mount which in many cases will push the unit forward creating more moment for rotation and forces in the z axis while riding which is less than ideal.  My design eliminates all the extra failure points and jenky universal handlebar stuff they include in the box.  This gives you a super strong mount that delivers all forces to the bar and easily carries this larger head unit flush with other displays in the stack as shown in my images from our CFmoto Ibex450

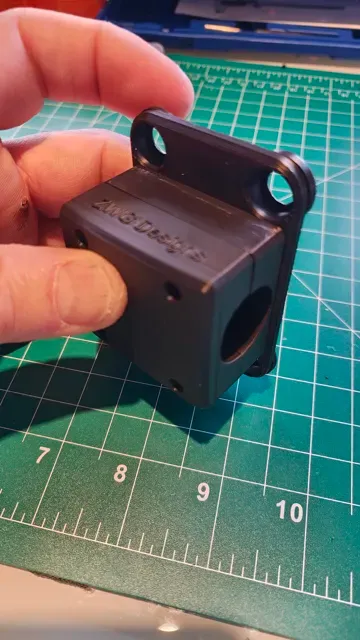

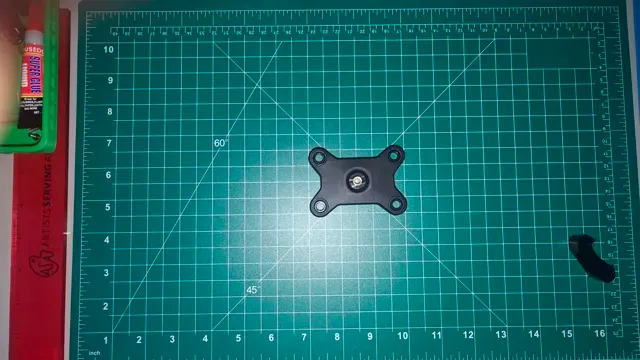

This bracket allows use of the factory vibration dampening washers which you can remove from the original included bracket.  The ZWG bracket will key into the back of the GPS unit exactly like the factory bracket and use all the existing hardware.

To clamp requires (4) m5x30 stainless hex head bolts.  Common at any ace hardware.

I printed this in black ASA for years of service in direct sun outdoor use

.16mm optimal

25mm/s initial layer

5 wall thickness

25% infill

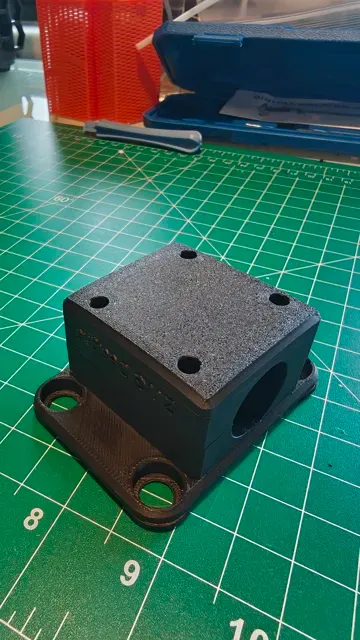

The parts on are on two plates so you can print the bracket with supports as it needs to be printed with the interface bosses down so you can remove the supports and that surface will be up against the GPS unit never to be seen again.  The clamp is set upside down so you get a nice plate texture showing forward.  This layout gives you the cleanest printed part for a factory look.

Features:

- Allows flush & direct mounting to a 22mm accessory bar on any ADV motorcycle tower - Factory look - Direct use of supplied vibration damper washers - Direct use of GPS bracket hardware - Compatible with standard accessory bars for ADV bikes - Wide clamping surface for tight but tiltable tensioning
