Solar LoraWan Node V3.2 Meshtastic / Meshcore

This is a weatherproof case for a LoraWan Solar node. These are great for Meshtastic or Meshcore repeaters, and are totally self sustaining. I've been testing one for over a year, and it's still working great.

Based on feedback I received, I did a ground-up redesign of this model, and I'm now ready to release version 3.0. You can find my previous version here:

https://makerworld.com/en/models/724129-meshtastic-weatherproof-case-with-solar-rak-19003#profileId-655215

There are multiple versions, and multiple mounting options. Each print profile includes all the optional parts for that particular board. I'll be continuting to build versions for more boards as i'm able to make time.

Enjoy

Update 6/7/26

- Added an an optional solar arm to mount the commonly found 110mm X 60mm solar panel.

Update 5/28/26

- Added Profile to Support Heltec T114 and V4 Nodes with 18650 Battery Holder.

Update 5/27/26

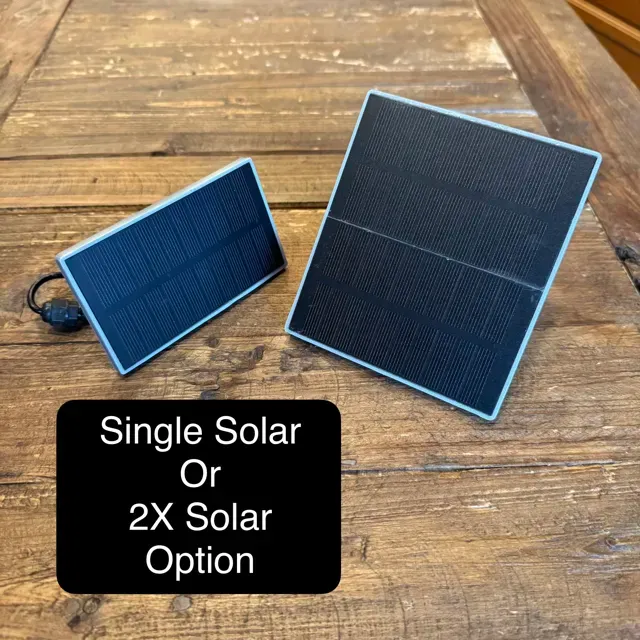

- Added optional 2X solar panels to all profiles - The 2X solar panel provides additional solar charging for nodes with High power consumption, or limited sun exposure.  Update 5/23/26

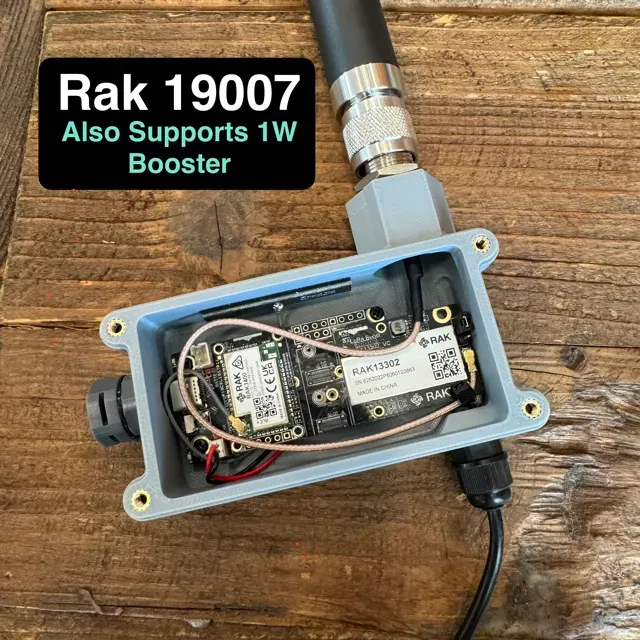

- Added an aditional profile for the Rak 19007 and the 19007 with the 1W booster!

Update 5/7/26

Added two additional profiles with a slightly larger body.

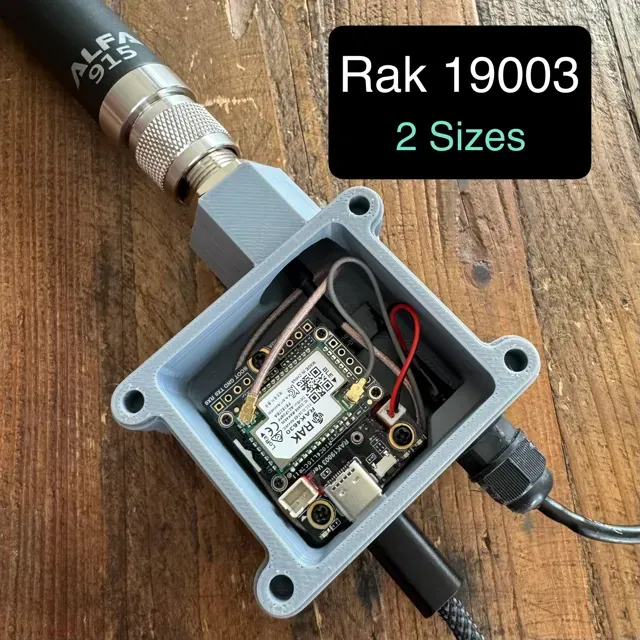

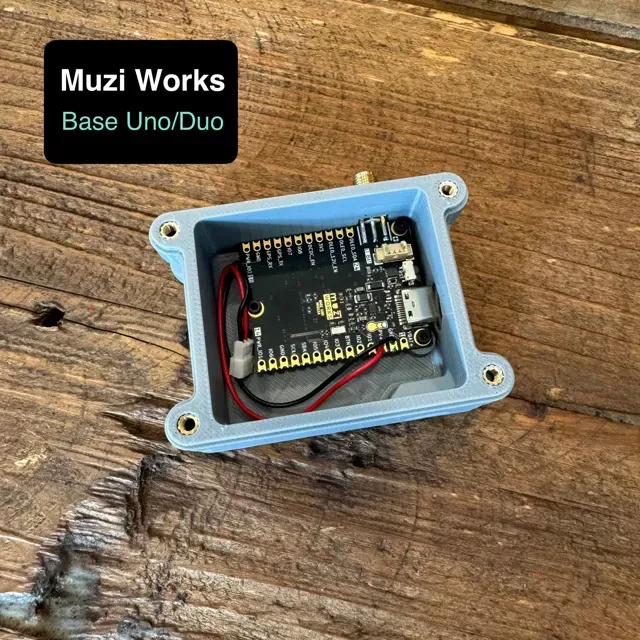

- Rak Wizblock 19003 with more space to accomidate more popular 103450 2,000Mah Lipo Battery - Muziworks Base Uno Board with Muziworks 1,500Mah 803450 battery - More variants coming to support other boards.

Update 3/14/26 - Version 3.2

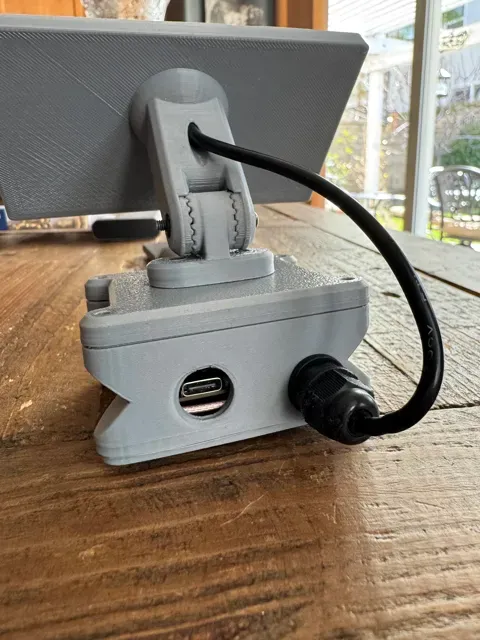

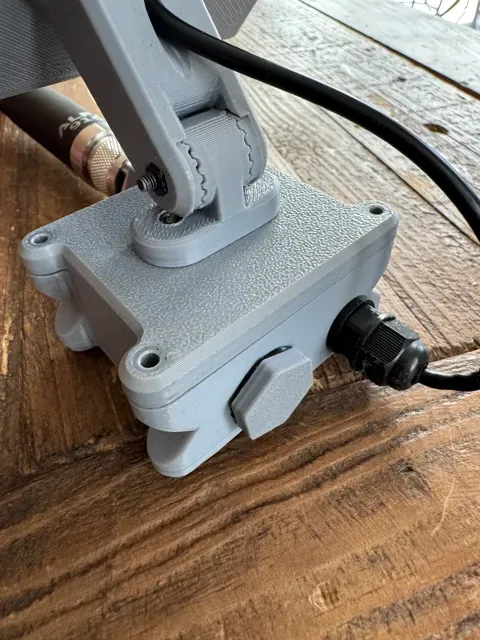

I've updated the profiles to include an optional version of the body that has an access port for the USB. The profile is tuned for ASA, so you may need to scale the plug to fit properly if you are using a different material. The plug can be tightened with a standard 17MM wrench, and I have also included a TPU gasket to maintain weather resistance.

The same opening can now support an M12 Pressure Vent. Use the Vent to plug the USB access port and keep the pressure from building inside the case.

Shoutout to Darkextratoasty for the basis of the model design, LupusWorax for the design of the teeth on the arm, and Leuktra for the inspiration to do an N-Antenna version.

Version 3.0 adds:

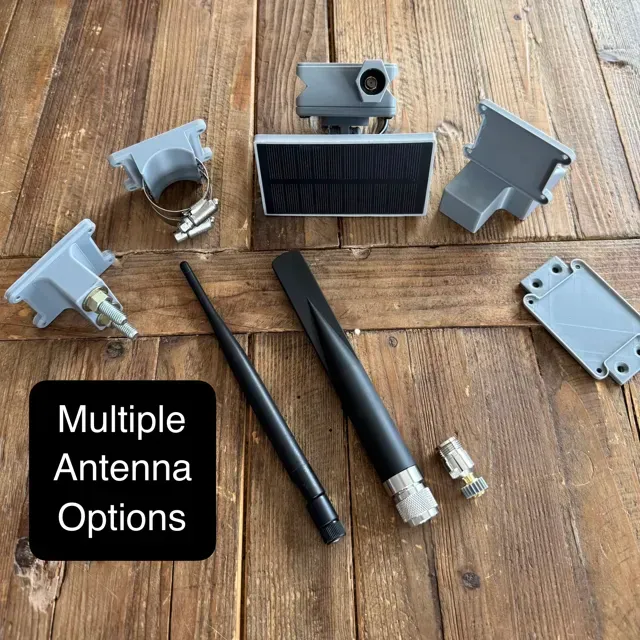

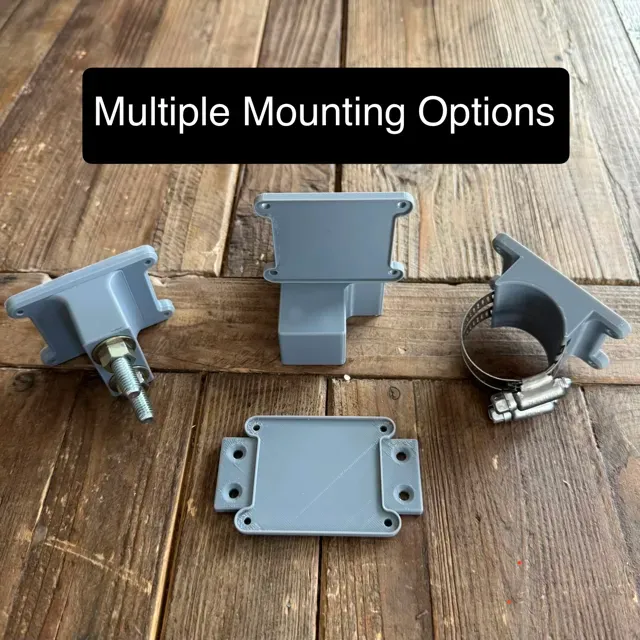

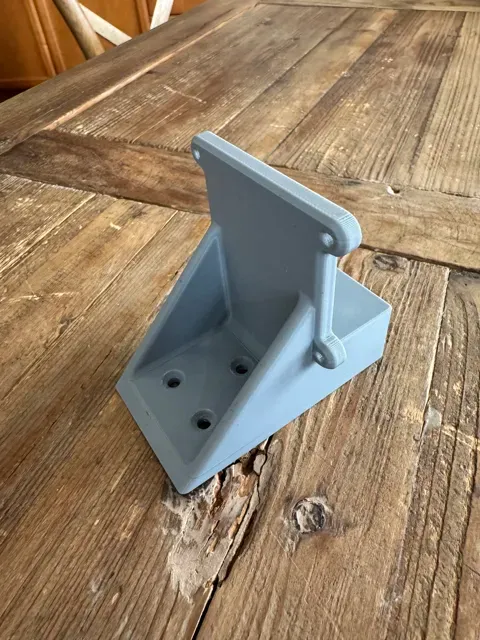

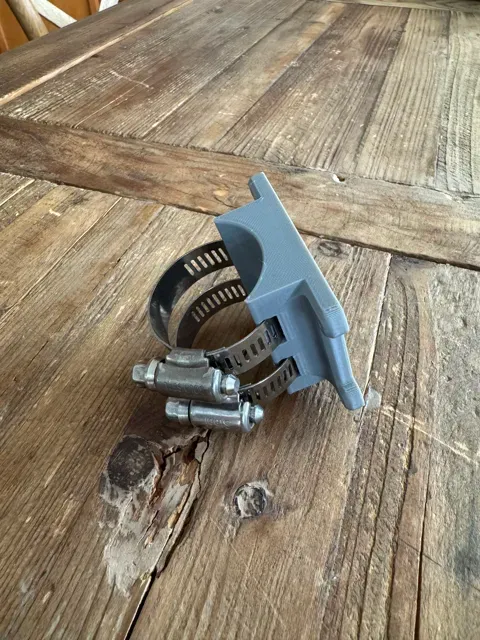

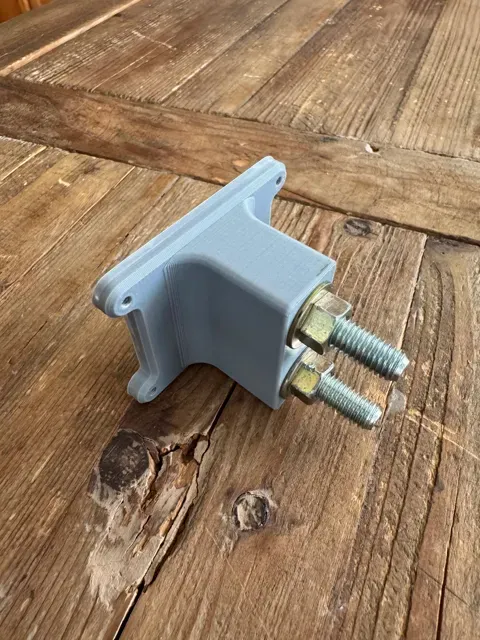

- Three Antenna connector options - SMA Antenna Version - N-Type Direct Antenna Version - Universal Antenna Version that has an SMA connector and can accommodate an SMA to N-Type Adaptor - All new case back profile that can accept different mounts for a variety of different applications. - Updated internal geometry to eliminate the need for the brass standoffs.

See the assembly instructions for the particular version you decide to print.

Let me know if you have any assembly questions. It's pretty tight but it fits, and it's super small. I printed in ASA and mounted outside in summer heat and direct sunlight. I ran the previous version of this outside in rain and direct sunlight, and it still looks brand new.
