Voron 2.4 Magnetic Door Handle

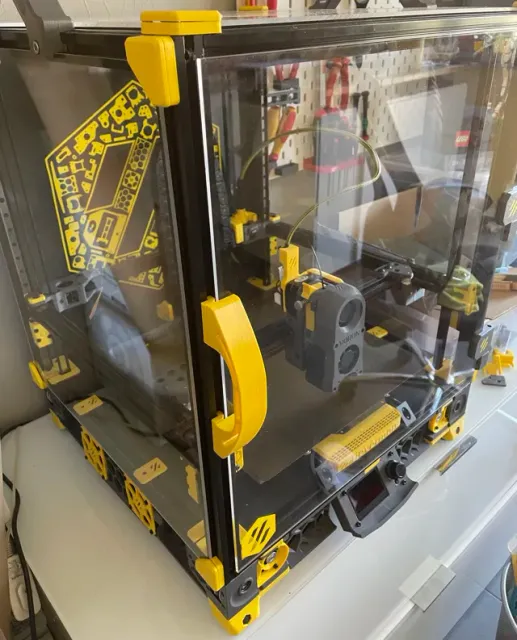

Magnet Door Handle for Standard Voron 2.4 Frame with 3mm single door and 3mm sealing tape.

Installation requires drilling - works only with acrylic glass not plexi(C)-glass. Check yours!

What to print:

- 2x Door Latch - 1x Door Handle

BOM:

- 2x M3x8 BHCS - 2x M3x6 BHCS - 2x M3 shim - 4x 6x3 magnets (N52) - 2x M3x5x4 heat-set insert - 2 M3 t-nuts - 2 M4 drill

Installation:

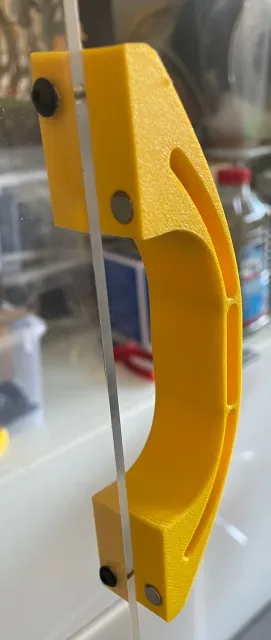

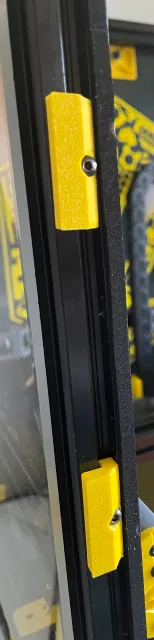

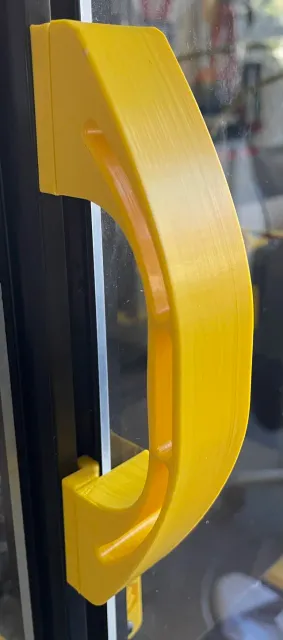

- Drop in M3 t-nuts where the handle should be - Insert magnets in door latch (without glue) and screw tight with M3x8 BHCS. - Insert heat-set insert into handle (small holes) - Super glue the magnets into the handle (mind polarity) - don't worry the latch-magnets can be changed easily - Align everything so the door is shut and everything is flush - Mark the door-panel from inside where the heat-set insert are - Gently drill both holes ( check if your panel is suited for drilling! ) - Secure handle with M3x6 BHCS and M3 shim.
