"Airless" Ping Pong Ball - Table Tennis Ball

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 5 767 Лайки
  • 33 592 Загрузки
  • 30 810 Напечатали
  • 14 122 В подборках
  • 481 Бусты
  • 2 723 Комментарии
  • 0 Просмотры

Эта модель на других площадках

Автор:shawn.mek

Опубликована

Описание

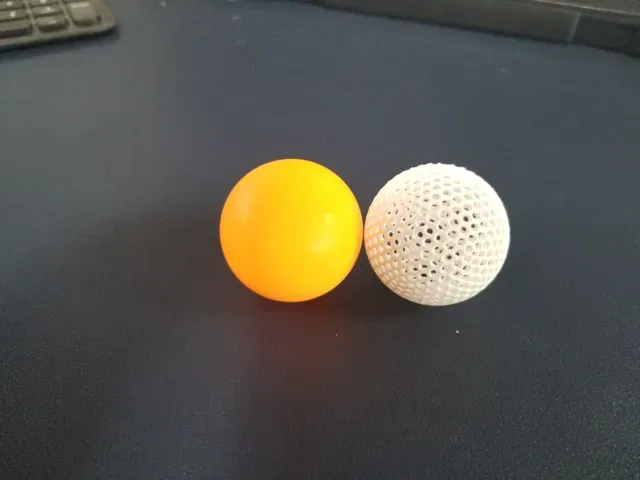

Membership Support me a little for $3/month. Thought I'd try this out. An airless ping pong ball! Seen with some of my other ping pong machinations ( https://makerworld.com/en/models/166872 & https://makerworld.com/en/models/207809 ).

Legal weight is theoretically slightly high (based on design program and slicer filament predictions), but I can't feel a difference (and can't weigh down to 2.7g - the slicer says over 3g)

Plays super well! Hasn't broken yet (like my pickleball which takes a little more abuse - https://makerworld.com/en/models/232041 )

Is quieter than a normal ping pong ball, but similar feel.

When putting spin on the ball - the flight is fascinating compared to a regular ping pong ball.

UPDATE (2025_02_04)

Added a print profile for BIQU PLA-HR filament. It is more TPU-like than PLA, but bounces more than TPU filaments that I have tried in the past. The PLA and PETG prints of this ping pong ball have highly variable durability - but this filament is very durable and makes a fun ball.

V2 (2024_03_07)

Beefed up the thickness and opened up the hexagons/pentagons. More durable and better looking.

V1

A little rough at top and bottom, maybe slow it down. But so far testing not showing much changes required in the future. Please let me know.

I tried the scaled profile to use this as a foosball and liked it enough that I worked on designing a more dense airless foosball ( https://makerworld.com/en/models/245307 )

Руководства и профили печати

Профили печати и шаги

BIQU PLA-HR Flexible 0.16mm layer, 6 walls, 25% infill Using this TPU-like filament, the ball bounces reasonably well and is now very durable. It obviously doesn't play like a real ping pong ball, but it is very fun to play with. I needed to ‘sand’ down the base to get it more round, but pretty cool material.

6 walls strength - PLA - easy to switch to better plastics V2 - Update 20240307

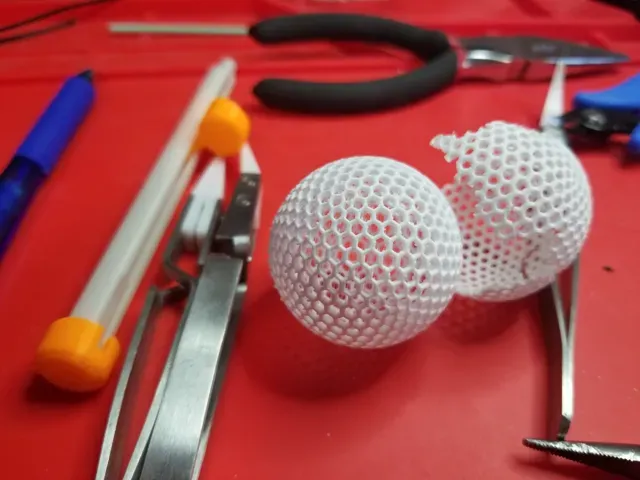

After some stress testing (ABUSE), I made the ball thicker and the open hexagons/pentagons a little more open in order to stay close to official weight but be a little more durable.

(PETG) 0.16mm layer, 4 walls, 15% infill Prints Perfect in Polylite PETG

Smooth and Fast | 0.24mm layer, 6 walls, 25% infill My personal Printsetting which I figured out for this Ball. Thanks for the Design!

0.2mm layer, 6 walls, 25% infill

0.2mm layer, 6 walls, 25% infill The supports are a little hard to get off.

BIQU PLA-HR 0.16mm layer, 3 walls, 20% infill My own print settings, printed out great for me, good bounce. Great design.

0.2mm layer, 6 walls, 25% infill
