Wio Tracker L1 Case (Meshtastic/Meshcore)

I have been using this (https://www.printables.com/model/1512081-case-for-wio-tracker-l1-meshnology-3000mah-battery) case for a few weeks now and although it is an excellent design I wanted something that was easier to hold in one hand.

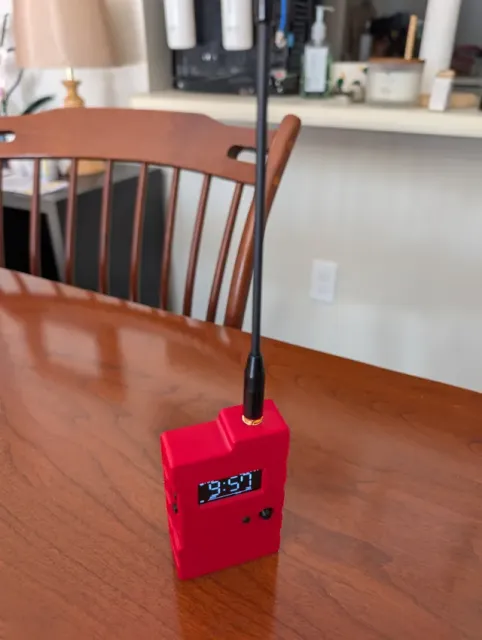

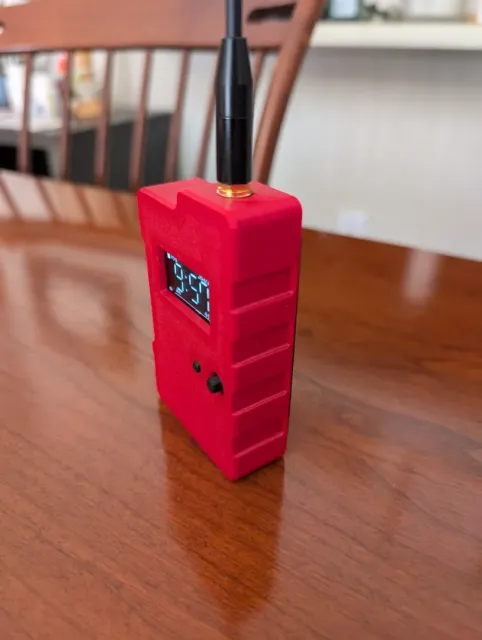

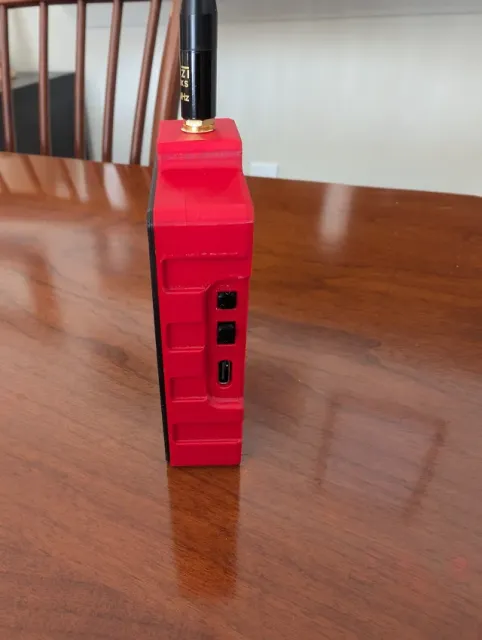

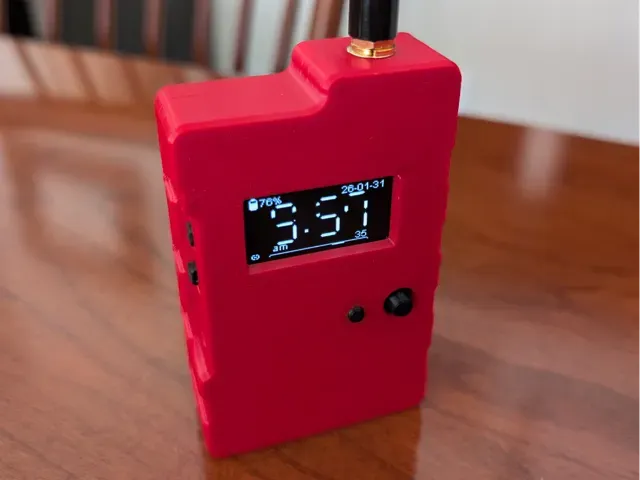

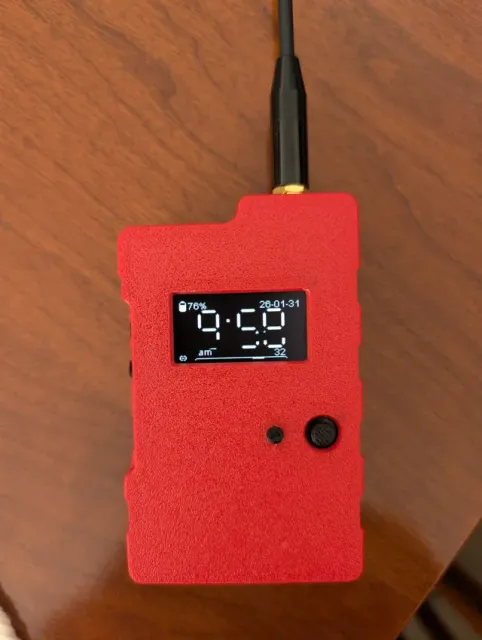

So I started from scratch and designed a slimmer case that would fit better in my hand. The only parts I reused from the original design were the power switch, joystick cover, reset button cover and the PCB cover.

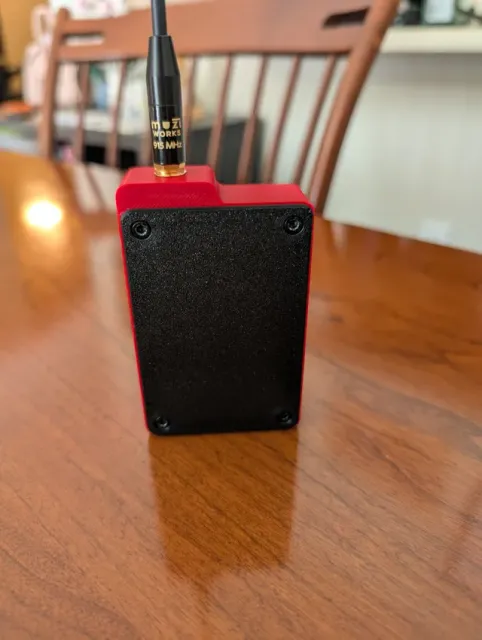

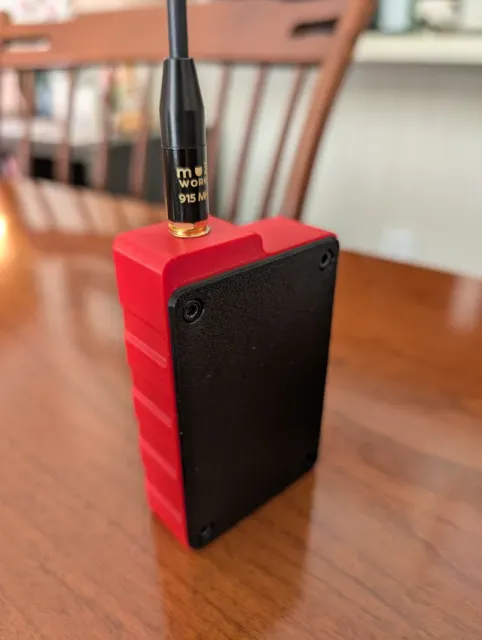

The assembly of this case is nearly identical to the original model except you must start with installing the PCB, followed by the GPS and LORA antenna then you can install the PCB cover and screw it down.

Hardware:

4 x M3 nuts

4 x M3 * 8mm screws

4 x M2 * 6mm screws
