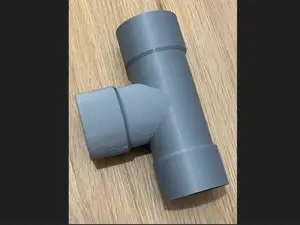

Any Angles Customizable 3-Way Tube/Pipe Connector

This is a fully parametric 3-way tube/pipe connector (Y-junction) designed in OpenSCAD for fast customization in the MakerWorld Customizer. Dial in your exact inner diameter (with clearance), wall thickness, insertion depth, and arm angles —including full 3D orientation using azimuth + elevation —to match your project.

To boost strength in angled configurations, the model includes optional triangular reinforcement ribs (gussets) between arm pairs where the angle is < 180° . Rib “strength” is configurable via:

- Rib thickness (mm) - Rib length (%) along each arm - Rib width (%) toward the gap between arms Common uses

- PVC-style fittings , tubing and hose adapters - Conduit / cable routing , enclosures, ducts, shop vac lines - Frames, jigs, racks, DIY structures, tent poles, custom assemblies Printing notes

Print flat on the hub for clean sockets and strong ribs. For press-fit joints, adjust clearance based on your printer/material (PLA/PETG/ABS) and the real tube OD/ID.
