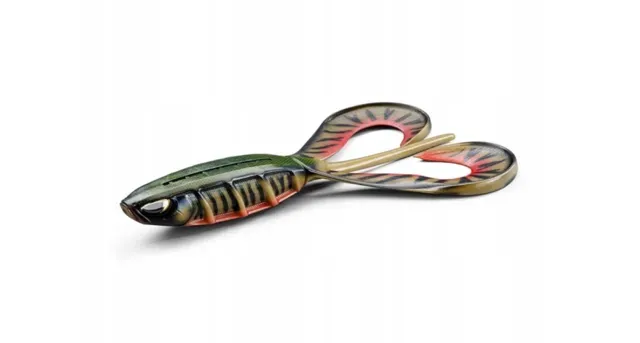

Inspired by Nays TWN - Custom Soft Bait Mold 10cm — Фото 2 из 4

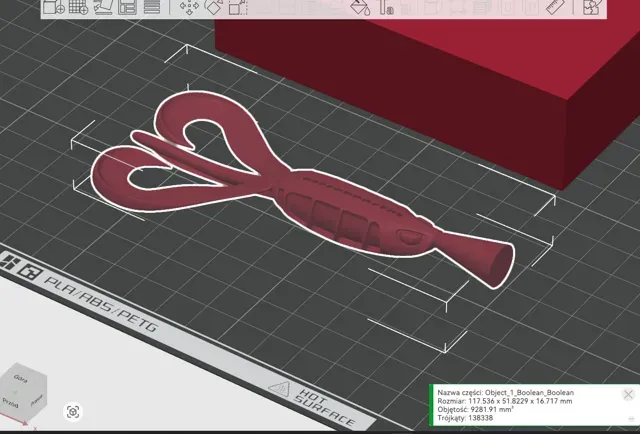

Inspired by Nays TWN - Custom Soft Bait Mold 10cm — Фото 3 из 4

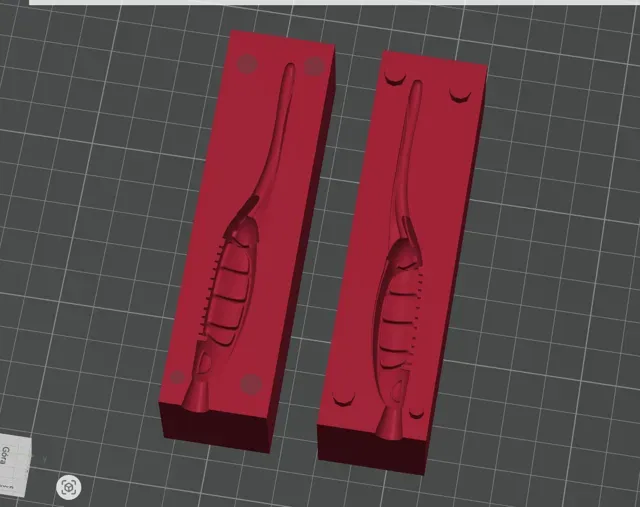

Inspired by Nays TWN - Custom Soft Bait Mold 10cm — Фото 4 из 4
3D-модель · MakerWorld

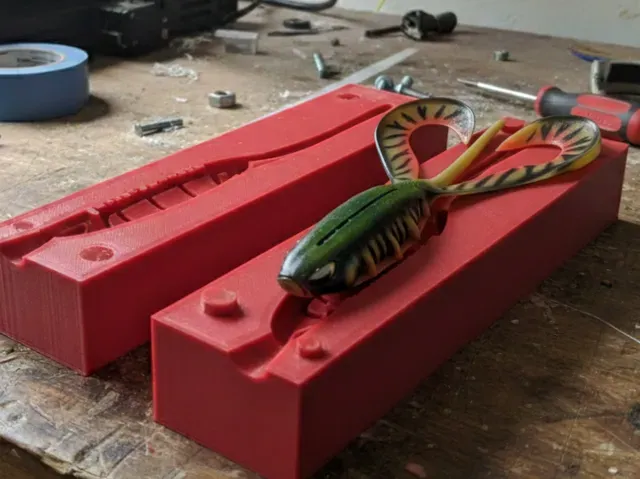

Inspired by Nays TWN - Custom Soft Bait Mold 10cm

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 294 Лайки
  • 302 Загрузки
  • 173 Напечатали
  • 848 В подборках
  • 5 Бусты
  • 11 Комментарии
  • 0 Просмотры

Автор:Kryspinn

Опубликована

Скачать на MakerWorld

Описание

Boost Me Support my work with a Boost! ⚡ If you enjoy my models, a quick Boost is the best way to say thanks! It helps me cover the cost of filament for future prototypes. Happy printing! 🛠️ 🎣 Custom Soft Bait Mold - Inspired by Nays TWN (10cm) 🐟

Description

Ready to catch some monsters? 🏆 Enhance your fishing game with this custom-designed mold for soft plastic lures! This project is an artistic interpretation inspired by the iconic Nays TWN 10cm . It’s perfect for hobbyists who want to pour their own unique color patterns and "secret" scents 🧪 while maintaining that legendary high-action twin-tail profile.

Features ✨

- 🎯 Precision Design: Optimized for 3D printing with fine details to ensure a smooth, professional finish on your bait. - 🌀 Dual-Tail Action: Perfectly balanced tails that flutter like crazy even at ultra-low retrieval speeds! - 🌊 Ribbed Body: Designed to create micro-vibrations in the water that drive Pike, Zander, and Perch insane! 👺 Printing Tips 🖨️

Injection & Demolding Tips 🧪

• ✨ Lubrication is Key: Make sure to thoroughly coat the mold with a silicone mold release or mineral oil before injecting.

• ⚠️ Tail Section: Pay extra attention to the tail area . Since the mold is closed and the tails are very thin, they can easily stick or tear during demolding. Proper lubrication ensures the delicate dual-tails slide out smoothly without losing their action!

• 🌡️ Cooling: Let the plastisol cool completely before opening to avoid deforming the fine ribbed texture.

- 🧵 Material: For the mold, use PETG or High-Temp PLA 🌡️ (Resin is 👑 for the smoothest results). - 📐 Layer Height: 0.12mm or lower for that "shop-bought" look. - 🧱 Infill: 25%+ for durability when using clamps. - 🛡️ Wall Loops: 3-4 walls to ensure a 100% leak-proof experience. Disclaimer: This is a fan-made tribute for personal use. Tight lines! 🎣🔥

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 6 walls, 25% infill Optimized Soft Bait Mold – Improved Parting Line Angle 🎣✨

This version of the mold features a key redesign to make the de-molding process much smoother! The main improvement is the altered parting line angle for the tail section. 🛠️

Why this matters? 🤔 Traditional splits can often cause delicate tails to stick or tear. By changing the angle where the mold halves meet, the tail is released naturally and with minimal friction. 🦐💨

- ✅ Easy Release: Greatly reduces the risk of tearing the tail when opening the mold. - ✅ Better Detail: Less stress on the cooling plastic means perfect results every time. - ✅ Pro Results: Works great with all plastisol types. 🧪 Printing Tips: 🖨️

- Use heat-resistant filaments like PETG , ASA , or ABS . - A layer height of 0.12mm or lower is recommended for a smooth, professional finish. 💎

0.2mm layer, 6 walls, 25% infill
