GoPro Dual-Orientation Mount (Vertical/Horizontal)

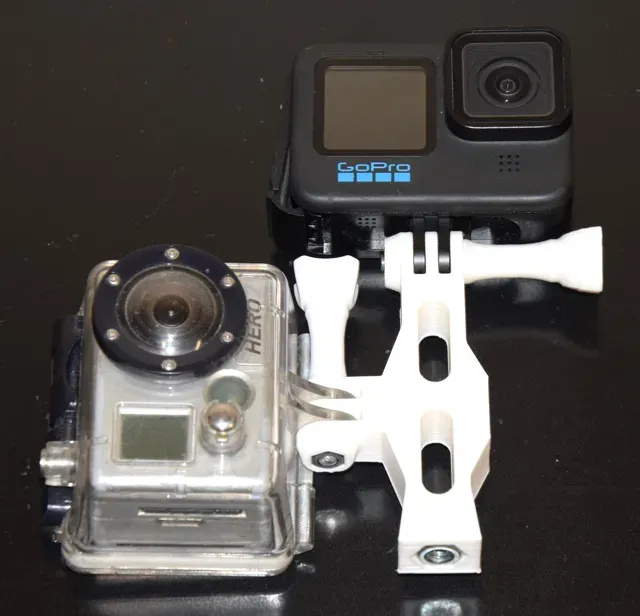

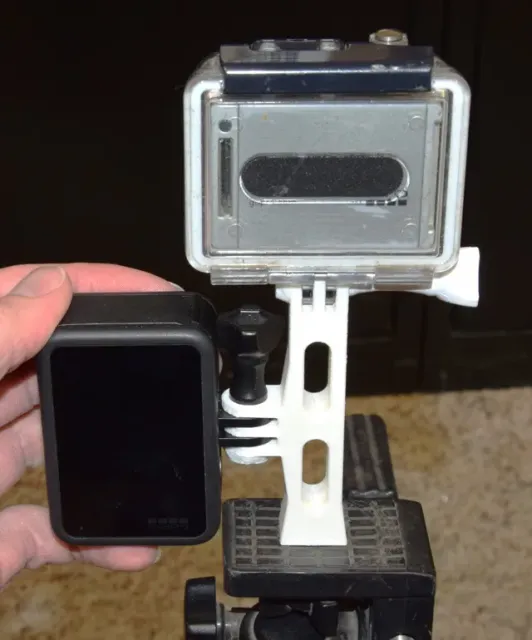

I decided I wanted a custom gopro mount that will allow me to do horizontal and vertical recording at the same time without using multiple adapters. The dual Gopro mounts I did find would put the gopros in the same general orientation.  Once I had the modules made up to build what I wanted I went a little crazy and made every other variation I thought a person may want. The aesthetics may not be on point but it is designed to be functional. The holes in the middle are big enough to feed most USB C cables through or use them for velcro straps.

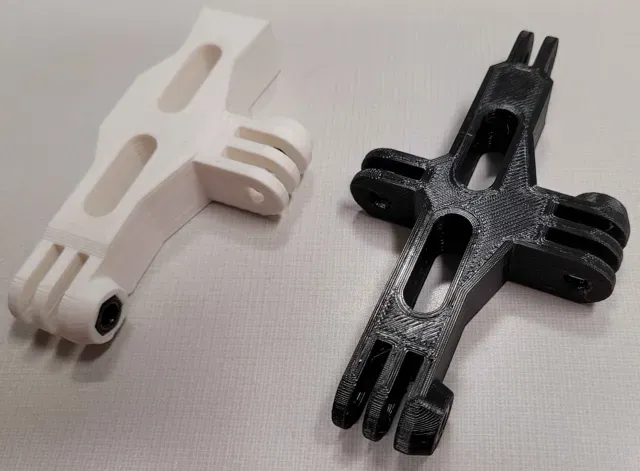

I have only printed the model with bad ergonomics, bottom tripod mount, and the dual tripod mount version.  I did verify the two prong mounts are dimensioned correctly though.

With the tripod mount capable models you will probably want to use supports because the Gopro prongs sit 1mm above the print bed. Also will need supports for the top of the tripod nut since it sits flat. The two prong only models shouldn't need any supports.

The bad ergonomics one works but for the vertical camera you will need a short thumbscrew and it is a little trickier to use. Also the amount of material around the ¼-20 nut is a little lacking.

You will need ¼-20 nuts for the tripod mount and M5 nuts for the 3 prong Gopro mounts.

If you like the model and want to support what I do I have the M5 nuts that work with these for sale on my eBay store:  https://www.ebay.com/itm/227254954491
