💧 ESP32-CAM Water Meter Case – AI-on-the-Edge

Adjustable Mount for “AI-on-the-Edge Device”

Turn your conventional water meter into a smart water meter with this practical ESP32-CAM Water Meter Housing , designed for use with the AI-on-the-Edge-Device project.

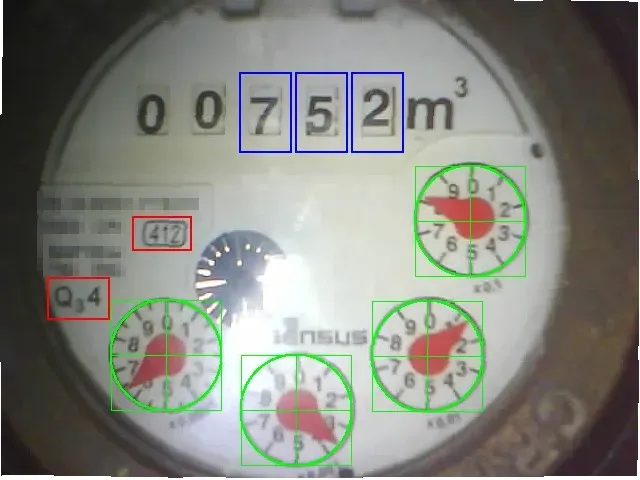

The housing provides a practical way to position an ESP32-CAM at your water meter so the camera can automatically capture the meter reading for digital processing.

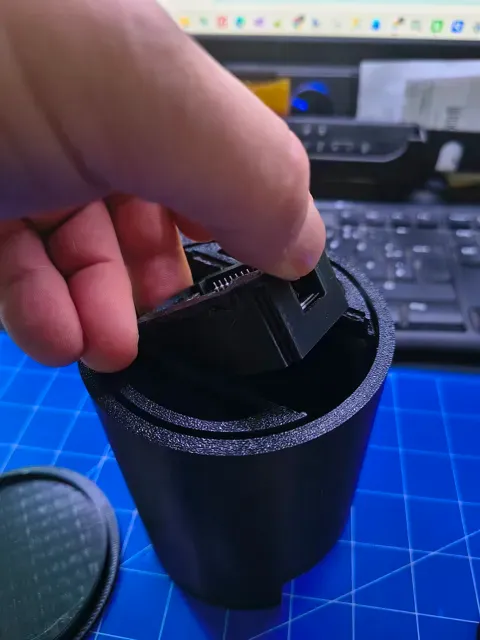

This project is a modular, adjustable ESP32-CAM housing designed specifically for the open-source project “AI-on-the-Edge Device” , which enables you to digitize analog water meters using computer vision.

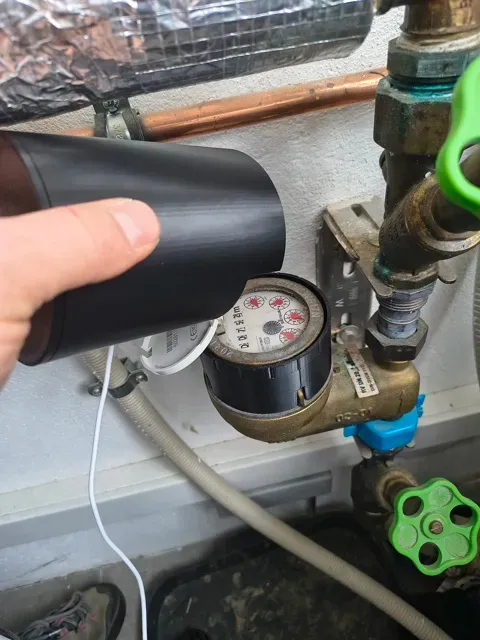

The housing is built for reliable alignment, easy installation, and precise camera positioning , making it ideal for quick installation on water meters.

✨ Key Features

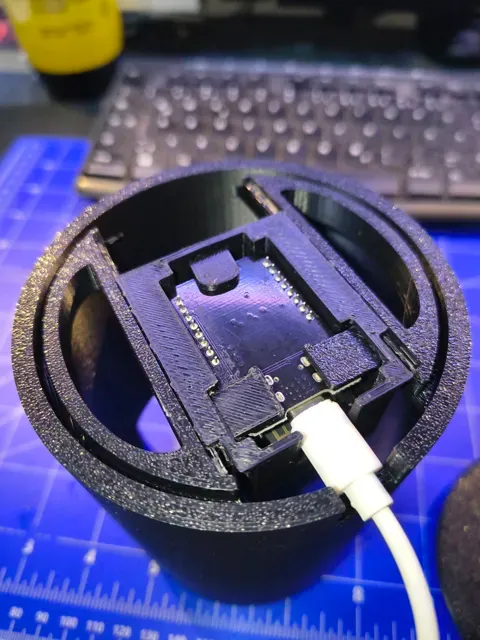

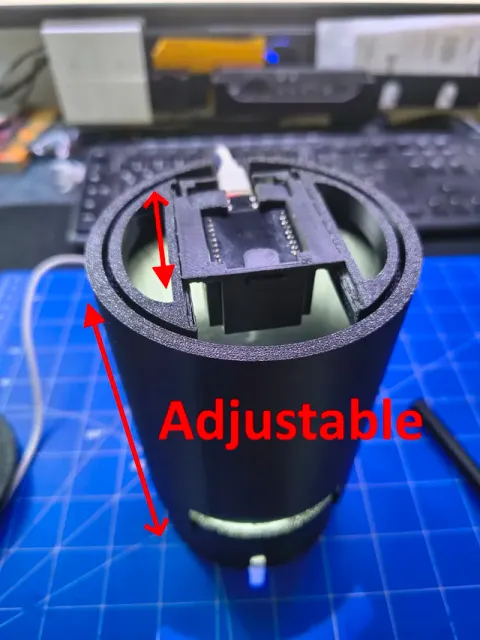

- 🔧 Adjustable camera alignment (Z & Y axis) Easily center the ESP32-CAM perfectly over the water meter dial.

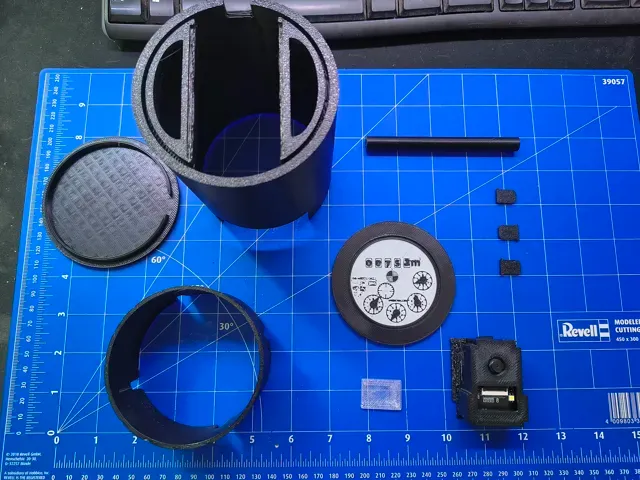

- 💧 Water meter–specific adapter Designed to fit directly onto the meter for stable mounting. in sizes from 35 to 75 mm - 🎯 Dial in alignment template included Allows you to pre-align and focus the camera before installation , saving time and frustration.

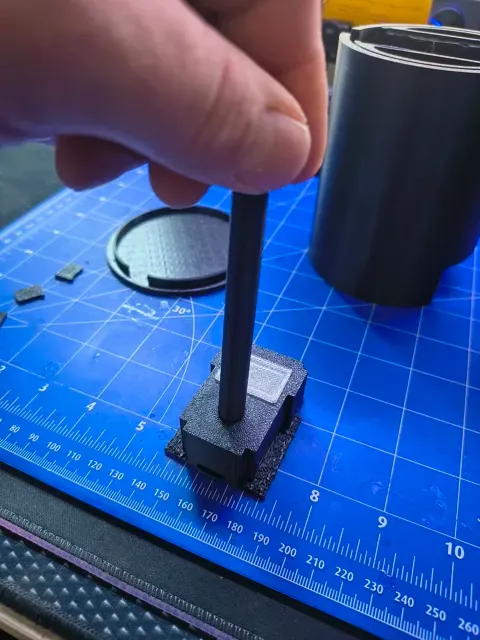

- 🔍 ESP32-CAM focus adjustment tool Included tool makes fine focus adjustments simple and repeatable.

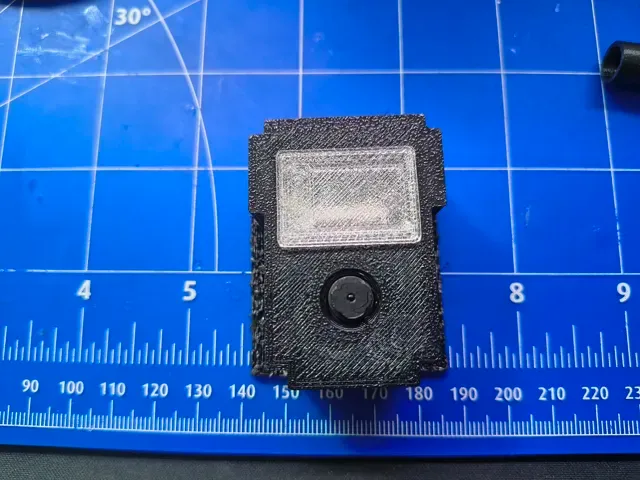

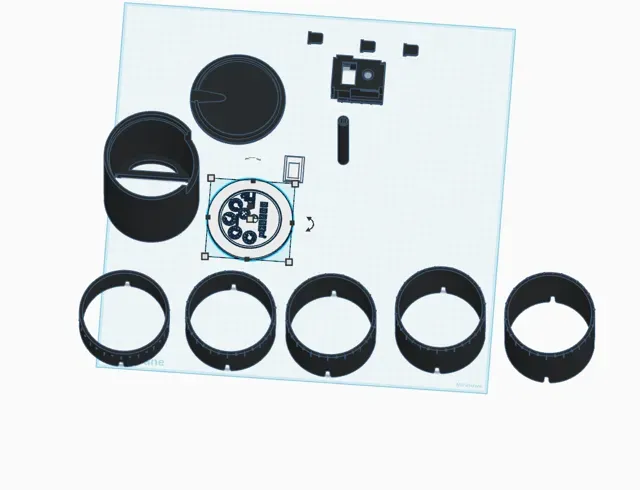

- 🧩 Modular design Different height adapters from 35 to 75mm mount - Build in LED Diffuser, you can print it in white or transperant  filament

🔌 What You Need

- ✅ ESP32 + ESP32-CAM module - ✅ Micro-USB or FTDI programmer for flashing - ✅ AI-on-the-Edge Device firmware 📖 Software & Project Info

This housing is made for the excellent open-source project:

👉 AI-on-the-Edge Device

You’ll find firmware, setup guides, and model training instructions there.

🎯 Use Cases

- Smart water meter monitoring - Home automation & energy tracking - DIY IoT projects - Utility digitization without replacing meters Like what you see?, click here to see my other creations and designs
