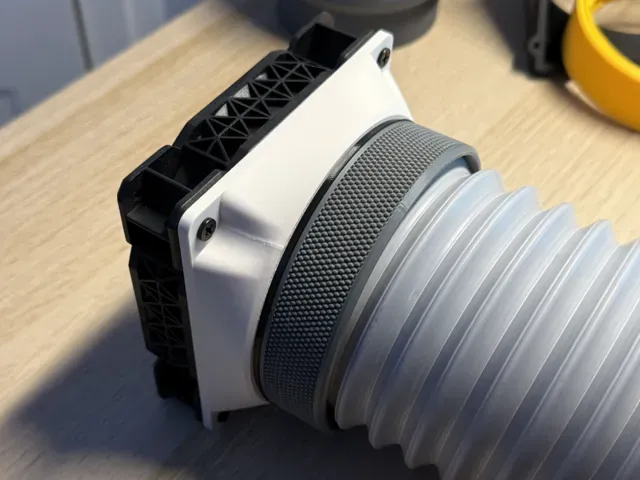

ModulAir L - 120mm Fan Adapter Mount

Part Number: MA-L-FAN-120

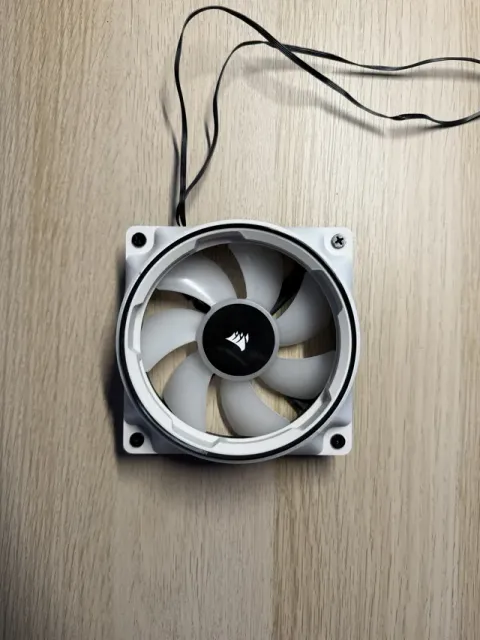

Female adapter for mounting standard 120mm fans to the ModulAir Large system. Universal 4-hole pattern compatible with most 120mm PC and industrial fans.

🔗 ModulAir Collection

This part is part of the ModulAir modular air system, a comprehensive ecosystem of quick-connect adapters for workshop air handling.

Browse the full collection: https://makerworld.com/en/collections/7342813-modulair-modular-air-system

Find all Large compatible parts: https://makerworld.com/en/collections/7342813-modulair-modular-air-system?query=MA-L

🔧 Model Overview

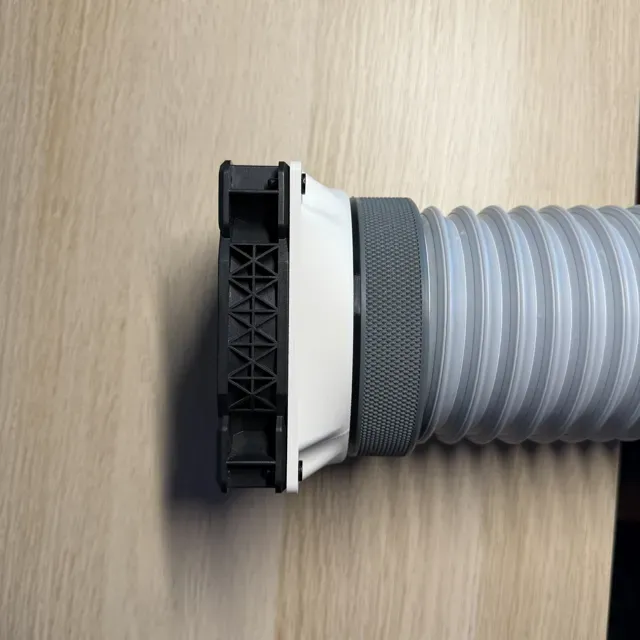

- Interface Size: Large (female - accepts ModulAir Large male parts) - Fan Size: 120mm x 120mm (standard PC fan) - Mounting Pattern: 105mm diagonal hole spacing (4x M4 screws) - ModulAir Connection: QuickLock bayonet (1/10 turn ) - Fan Connection: 4-hole mount with M4 screw holes - Seal Required: MA-L-SEAL (for airtight connection to male adapters) - Configuration: Fan → Fan Adapter → L Male Adapter → Hose 💡 Recommendations

- Compatible with standard 120mm PC fans and industrial blowers - Use 4 screws for fan mounting - MA-L-SEAL gasket recommended for airtight seal to hose adapters - Perfect for active ventilation, fume extraction, or air filtration setups - Connect to 100mm (4") hose via MA-L100 screw-on adapters - PETG, ABS, or ASA recommended for durability with continuous fan operation - PLA acceptable for low-temperature applications
