ustom Soft Bait Mold: 10cm Fork-Tail Shad Minnow

Boost Me 🚀 Support my work! If you find this mold useful and it helps you catch some big fish, please consider giving it a Like, adding it to your Collections, or even sending a Boost! 🚀 🐟 Custom Soft Bait Mold: 10cm Fork-Tail Shad 🐟

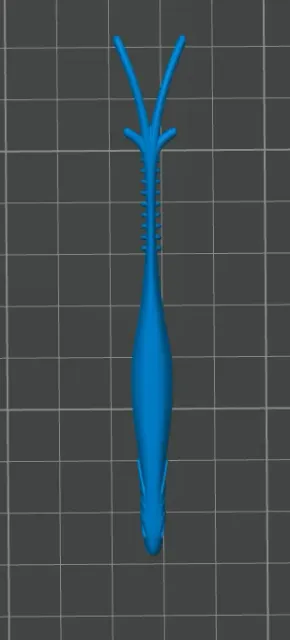

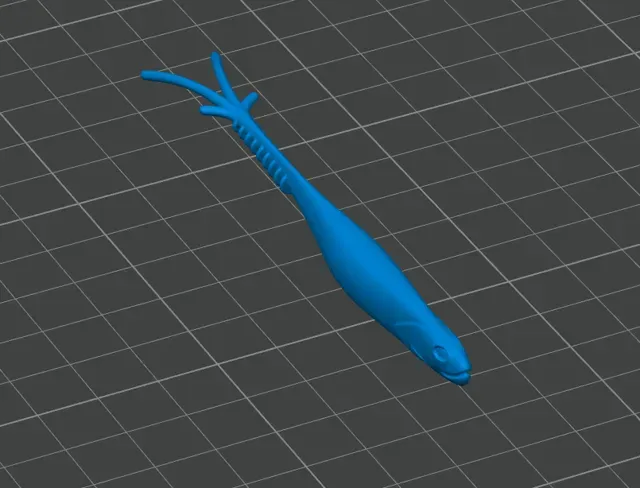

This is my original, custom-designed mold for pouring Shad/Fork-tail soft plastic lures. Designed from scratch to offer a unique profile that stands out from mass-produced lures! 🛠️

✨ Project Features:

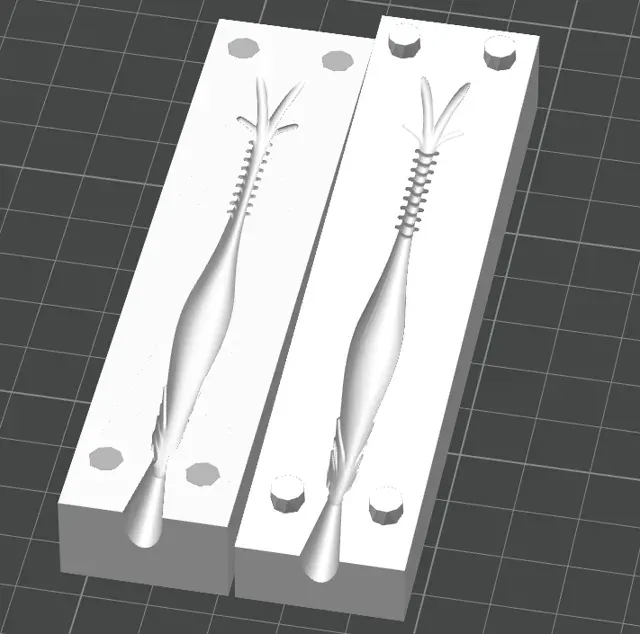

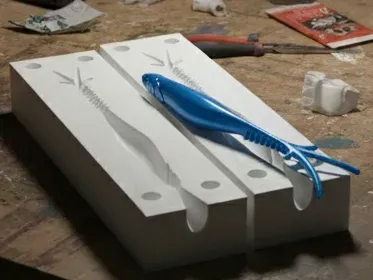

- Innovative Tail: Features a 4-way split tail (quad-fork), providing a unique visual profile and incredible action in the water 🌊. - Perfect Size: 10 cm (approx. 4 inches) length – a versatile "sweet spot" for Zander, Pike, and trophy Bass 🎣. - Precision Fit: A two-part mold designed for a tight seal and easy demolding. ⚙️ Print Settings & Tips:

- Material: I recommend PET-G or high-temp resins/filaments to withstand the heat of the liquid plastic 🌡️. - Layer Height: Use 0.12mm for a smooth finish on the lure’s surface. - Infill: At least 25% (Gyroid) to ensure the mold remains rigid under clamping pressure. - Walls: 3-4 perimeters for extra durability and leak prevention. If you print this mold, please share your results in the "Makes" section! I'd love to see your custom color combinations! 📸
