Universal PVC Pipe Extension – Custom Fit

3D Printable Parametric PVC Pipe Extension

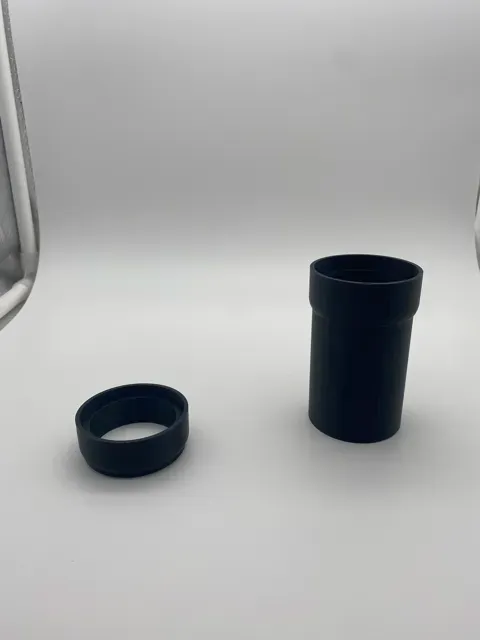

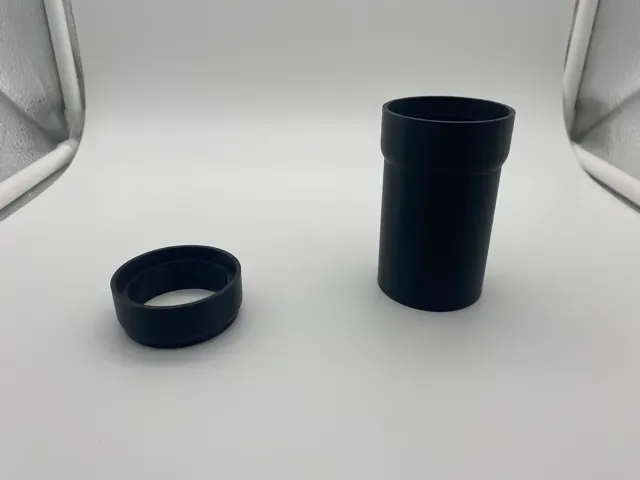

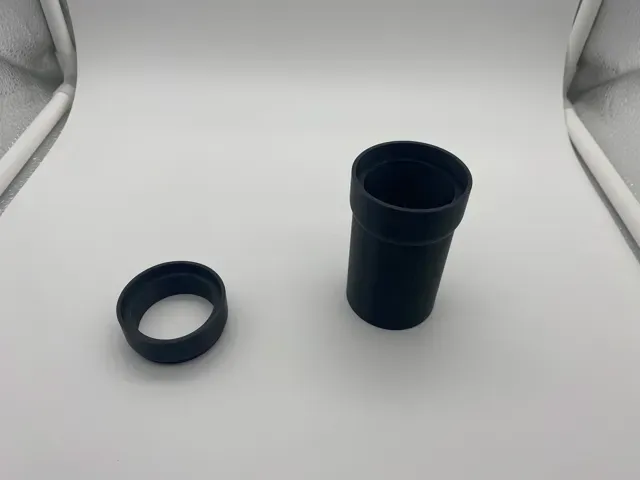

This fully customizable PVC pipe extension and reinforced collar system allows you to adjust inside diameter, outside diameter, length, wall thickness, and tapered shoulder geometry to match your exact application in SolidWorks – everything is parametric. Whether you're prototyping, building shop jigs, extending dust collection lines, or creating custom plumbing adapters, this parametric model gives you total control.

✅ Key Features

- Fully configurable inside & outside diameters - Adjustable length and wall thickness - Reinforced collar design - Optional tapered shoulder for secure fit - Clean, print-ready geometry - SolidWorks source file included - Ideal for functional prints 🛠 Perfect For

- Workshop dust collection systems - Custom pipe adapters - Shop tool modifications - DIY plumbing projects - Prototype fittings - Garage organization builds - Maker and engineering projects 📦 What’s Included

- 3MF file - Fully editable SolidWorks file 💡 Print Recommendations

- PETG, ASA, or ABS recommended for strength, but PLA is acceptable for light work - Increase wall count for high-load applications - Print vertically for optimal roundness - 40–60% infill for structural use Create the exact pipe extension you need — no compromises, no sanding oversized prints, no guesswork.

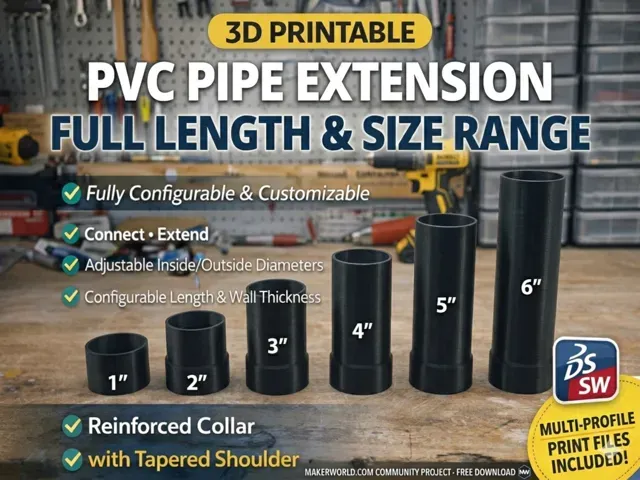

The default print profile includes extensions for inside diameters 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-¼", 1-½", 2", 2-½", 3", 3-½", 4" and extension lengths of 1", 2", 3", 4", 5", 6". The inside diameters are scaled per Schedule 40 PVC, so the actual numbers vary a bit. However, I have included the SolidWorks file with global variables for everything in case you want to change it, or I am happy to do so if you send me the diameters you need.

Added a print profile for an integrated end cap also.

If you make something cool with it, post your build — I’d love to see it!
