Jigsaw Blade Holder (with Internal Magnets)

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
STL
  • 72 Лайки
  • 77 Загрузки
  • 58 Напечатали
  • 373 В подборках
  • 0 Бусты
  • 7 Комментарии
  • 0 Просмотры

Автор:JRaffi

Опубликована

Описание

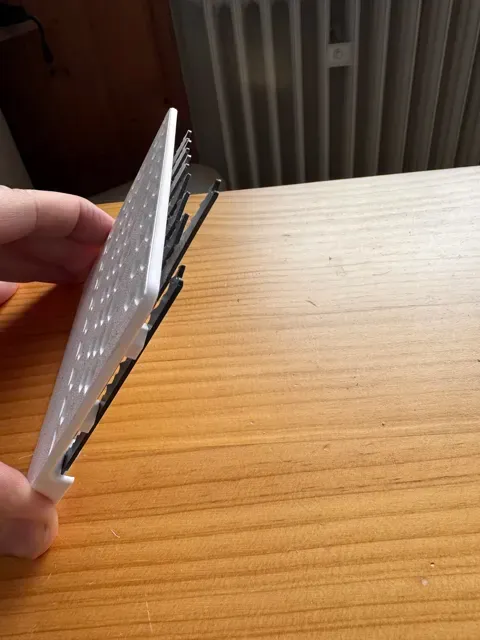

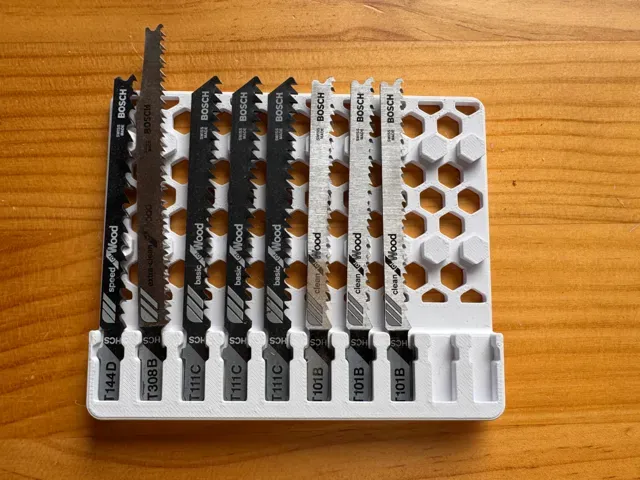

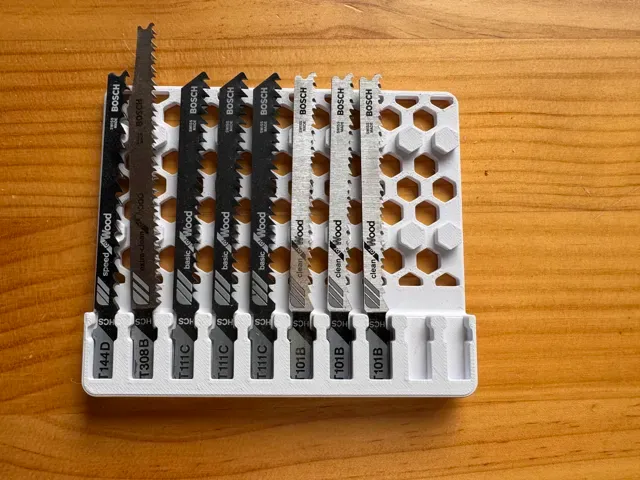

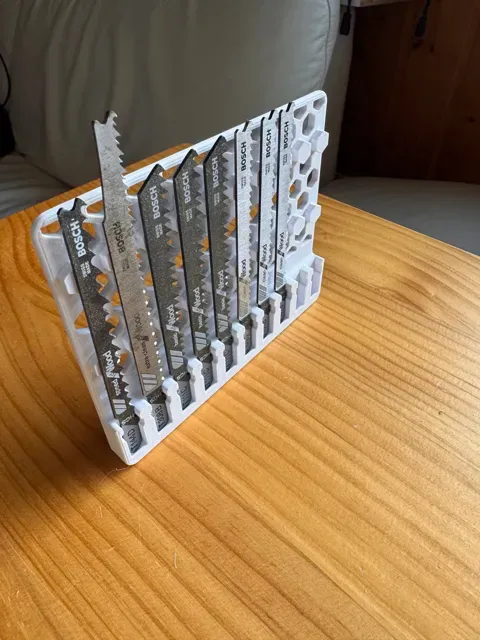

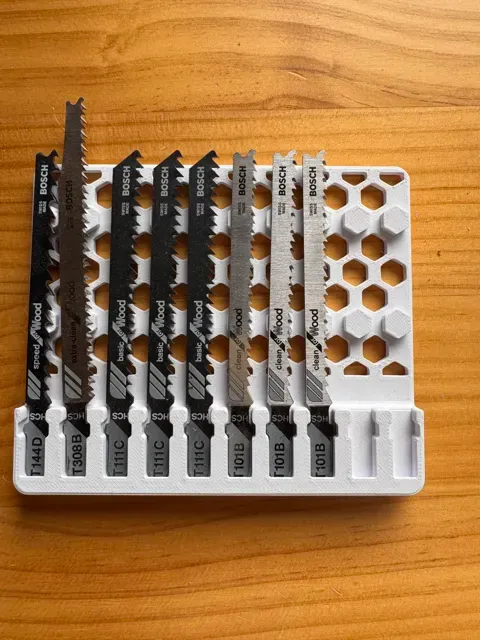

Stop losing your jigsaw blades in the bottom of your toolbox! This compact holder keeps your T-shank blades organized and securely in place using integrated magnets.

Features

- Encased Magnets: Designed for 6mm x 2mm magnets that are hidden inside the print. - Secure Hold: The magnets ensure blades won't fall out, even if the holder is stored upside down. - No Glue Required: The magnets are sealed inside during the printing process. How to Print (The "Pause" Method)

The provided .3mf file is already set up with a pause, but if you are slicing from the .stl, follow these steps:

- Insert a Pause: In your slicer, locate the layer just before the magnet pockets are closed (typically around the 6mm height mark depending on your orientation). - Drop in Magnets: When the printer pauses, place the 6mm x 2mm magnets into the slots. - Resume: The printer will cover the magnets with the next layers, locking them in forever. Print Settings

- Material: PLA or PETG. - Infill: 15-20%. - Supports: None needed. - Walls: 3 Wall loops for a solid feel around the magnet pockets.

Руководства и профили печати

Профили печати и шаги

Jig Holder PLA
