Gridfinity Caliper Organizer for Mitutoyo

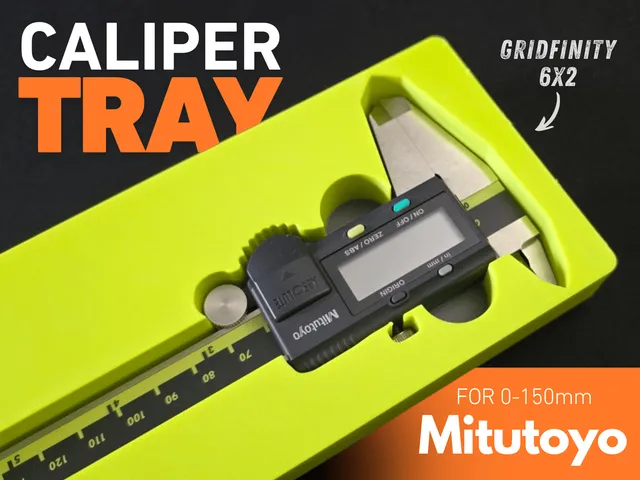

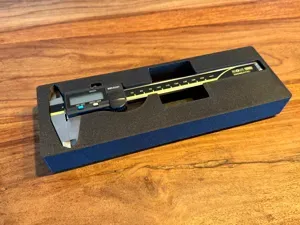

I made this shadow box for my Mitutoyo Calipers . After a few refinements, they fit perfectly.

Link to exact model of calipers: Mitutoyo MIT500-196-30 Absolute AOS Digimatic Calipers GTIN: 04946368667751 UPC: 637230482704 , 796299777999 , 709466942915

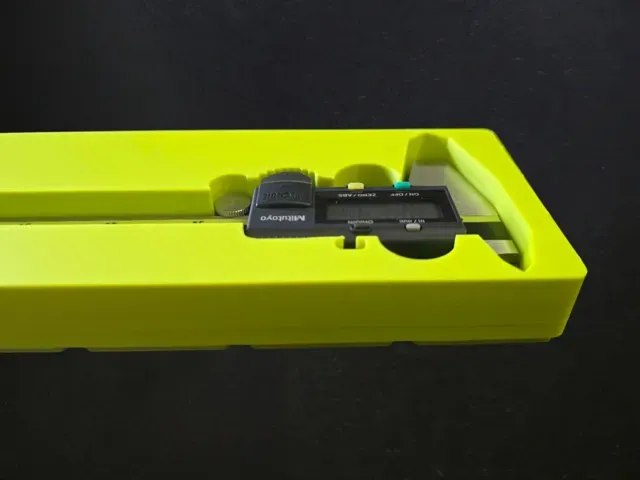

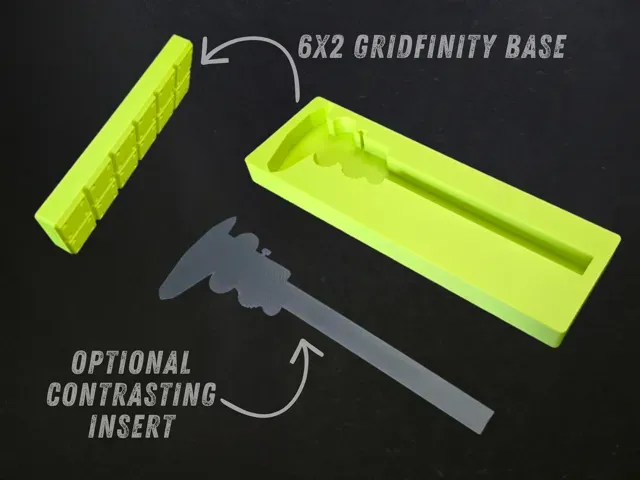

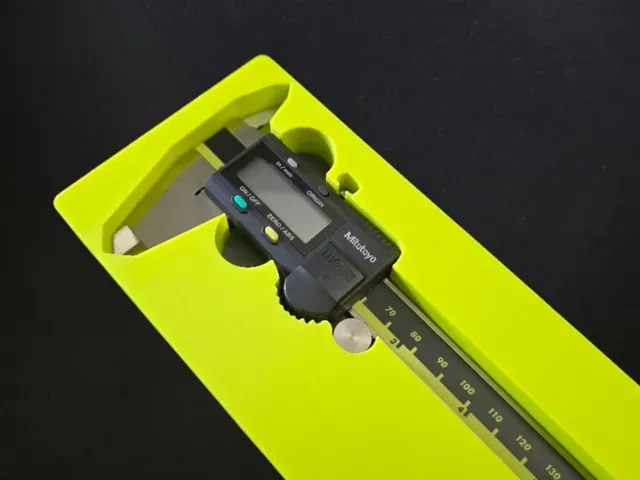

The box features a Gridfinity base compatible with 6x2mm magnets (48 total). The caliper recess is 15mm deep with 2 finger notches. Adding a thin insert in a constrasting colour works well.

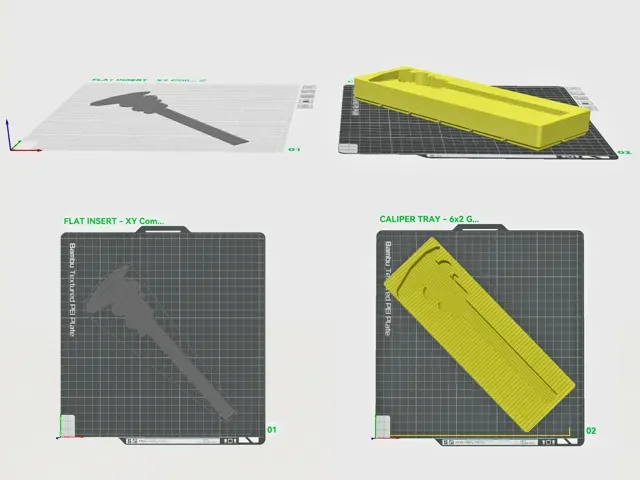

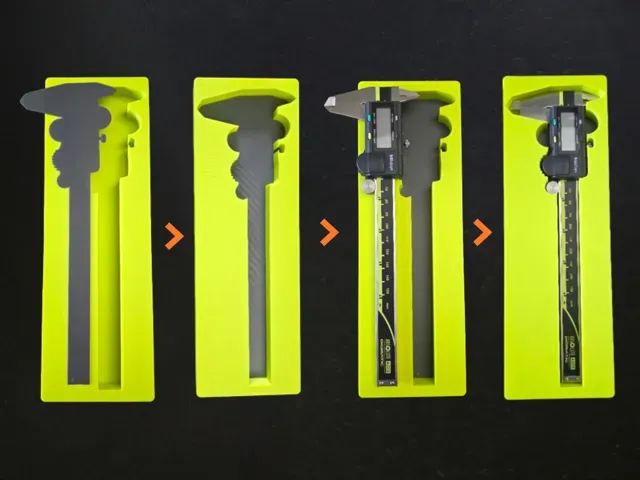

At first, the insert wouldn't fit into the recess but it fits like a glove when given an X-Y Contour Compensation of -0.2mm . This is set for the object in the uploaded print profile. Chose to print this slowly but happy with how it came out. Added the STL if you wish to customize anything.

FILAMENTS:

- Gridfinity box - Sunlu Matte PLA (Bright Green) - matches quite closely to the Mitutoyo yellow/green - Contrasting insert - Sunlu PLA + 2.0 (Grey) PRINT SETTINGS (as in uploaded profile) : Nozzle : 0.4mm Layer Height : 0.2mm Wall Loops : 2 Infill : 20% for the main box, 100% for the insert X-Y Contour Compensation : 0 for the main box, -0.2mm for the insert

Printed great on Bambu Lab P1S.

Newer to this. Hope it works the same for you :)

This model uses the Gridfinity base system by Zack Freedman. Gridfinity is licensed under CC BY 4.0.
