Flashforge AD5M AD5X LED Switch Plate filter door

Flashforge AD5M and AD5X LED Switch Filter Door Replacement

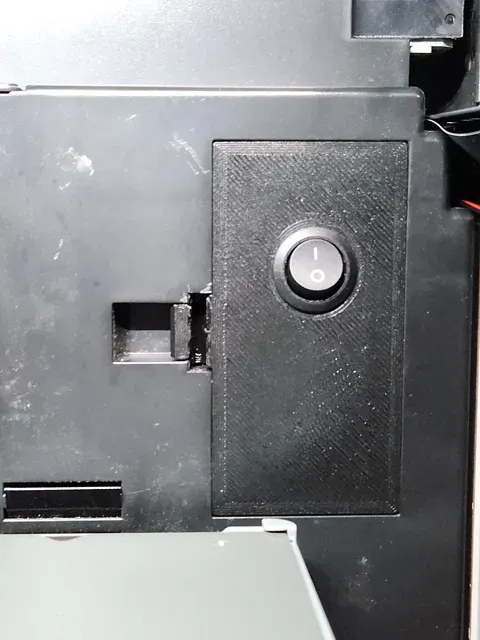

This replacement filter door for the Flashforge AD5M and AD5X is designed to accommodate a simple on/off toggle switch, allowing you to control the add-on LED light independently.

Installation is straightforward:

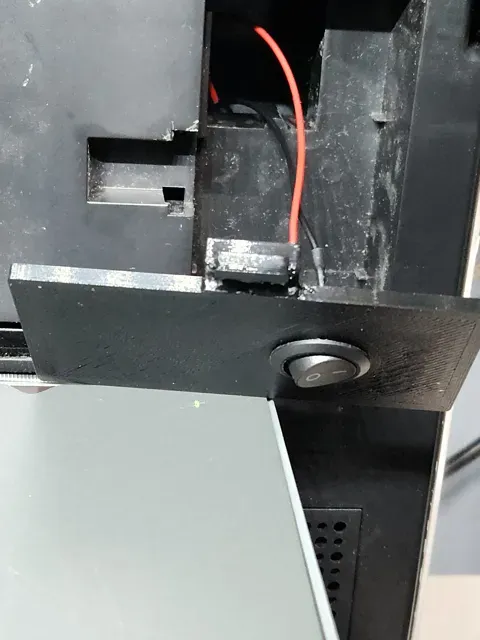

- Unplug the 3D printer. - Locate the positive (red) wire running to the factory LED add-on light bar. - Cut and splice the red wire. - Connect one end of the red wire to one terminal of the toggle switch. - Connect the other end of the red wire to the opposite terminal of the switch. This creates a simple power on/off control for the LED.

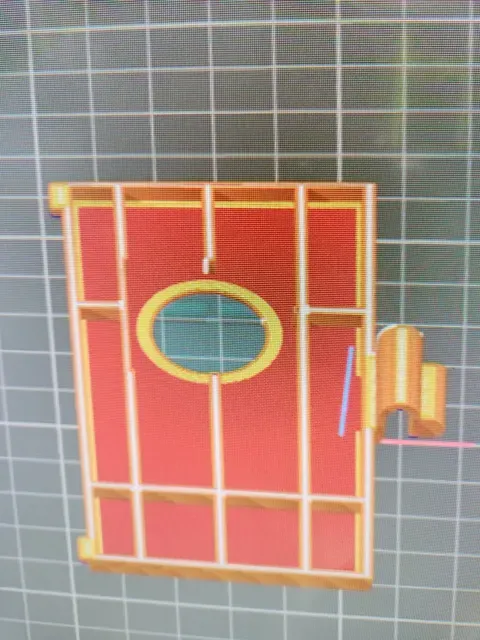

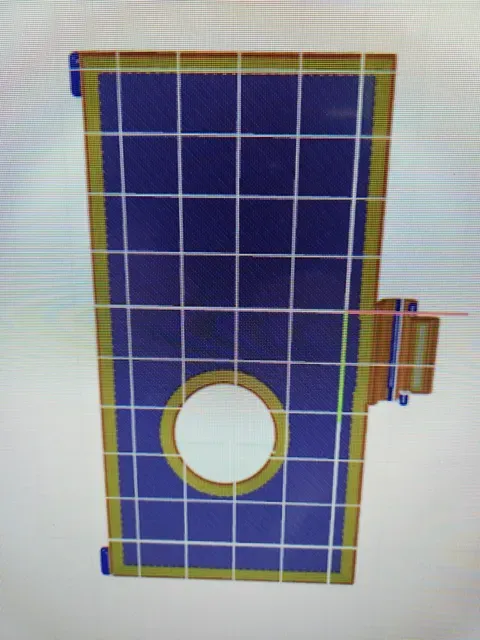

Print Settings:

- Printed face down - 0.6mm nozzle - Supports under the push-in tab - 5 walls for added rigidity - Material: PETG A standard 2-wire toggle switch will work and is widely available.
