PTFE cable chain clip for P1P/P1S and X1C

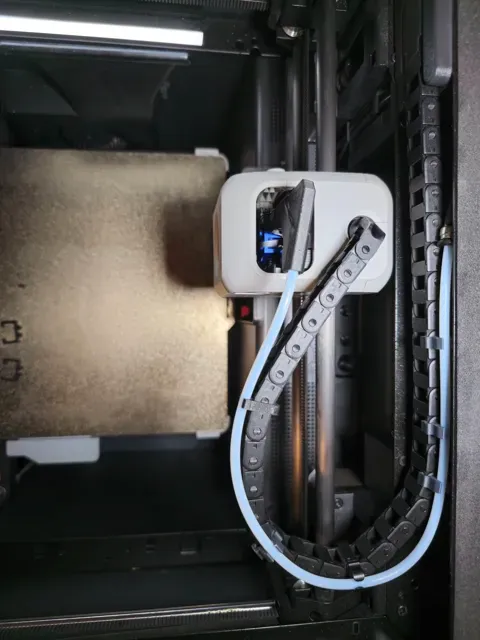

PTFE cable chain clip for P1P/P1S and X1C — Фото 2 из 2
3D-модель · MakerWorld

PTFE cable chain clip for P1P/P1S and X1C

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
3MF
  • 1 238 Лайки
  • 7 151 Загрузки
  • 5 018 Напечатали
  • 3 207 В подборках
  • 112 Бусты
  • 935 Комментарии
  • 0 Просмотры

Автор:Pixel2Plastics

Опубликована

Скачать на MakerWorld

Описание

Update 2025: I made an accessory clip if you are using these. You only need 1 -3 of these and They go on the Printhead side of the drag chain.

Print it here: Bambulab P1 Series Drag chain Cable clip Frontend by Ryxxi_makes - MakerWorld

I Highly  recommended to use my clips with the PTFE tube guide's here :  (These tend to break if you remove them too many times, I designed a Beefier one, but its also harder to remove.

PTFE Tube Guide by 3DTechBase - MakerWorld

or

Extra strength P1S Toolhead PTFE TUBE GUIDE by Ryxxi_makes MakerWorld: Download Free 3D Models

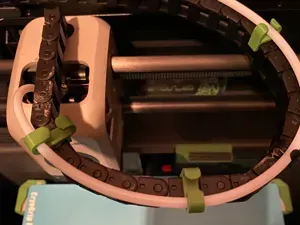

Clips onto the Cable chain very securely and rigidly. Then snap in the bowden tube.

Use pliers to remove the clips by slowly lifting one end from the cable chain.

The clips are very sturdy and dont move much and are light weight.

Someone reported the print profiles even though the Original model has the actual print photo and them installed on my printer.

I have uploaded a new print profile for High temp materials and will also upload a PLA print profile.

Boost Me

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 5 walls, 100% infill 0.2mm Layer height

0.2mm layer, 5 walls, 100% infill Guys, someone Falsely reported the previous print profiles for not having Images…

I uploaded a new Print profile here.

It can be used with ASA, ABS GF, PCCF and ASACF.

Orange part in photos are Pla and Black is PCCF (which I am currently using now)

0.2mm layer height.

Print speed is slow , I like printing slower to increase printer's life span. SHould still be fast because its 100mm/s

PETG - 0.2mm layer, 3 walls, 15% infill Being inside the chamber, I would strongly recommend printing these in PETG for longevity. PLA may get brittle over time and cause issues being constantly exposed to heat.
