Laundry Detergent Cup Holder - Shelf Attachment

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
уточняйте на площадке
Условия задаёт автор — проверьте их на странице модели, прежде чем печатать на продажу.
Форматы
STEP
  • 112 Лайки
  • 191 Загрузки
  • 151 Напечатали
  • 445 В подборках
  • 9 Бусты
  • 10 Комментарии
  • 0 Просмотры

Автор:Vaughn Pollock

Опубликована

Скачать на MakerWorld

Описание

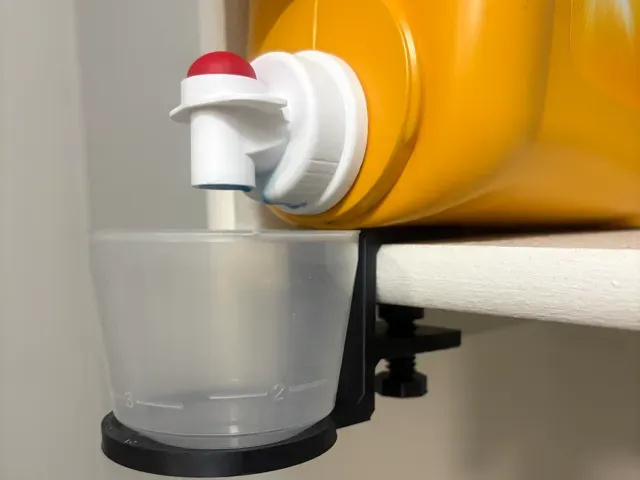

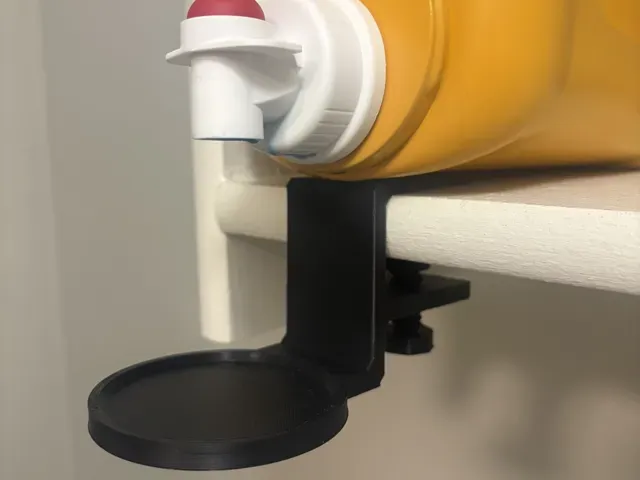

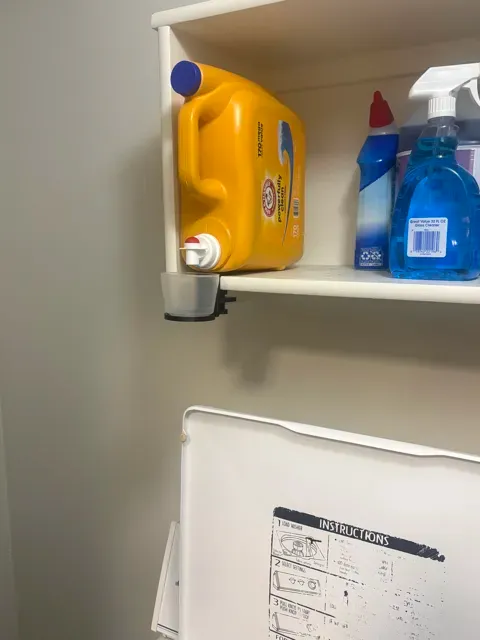

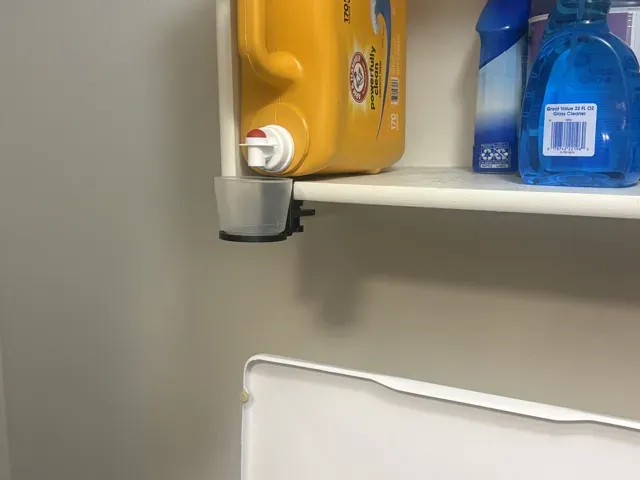

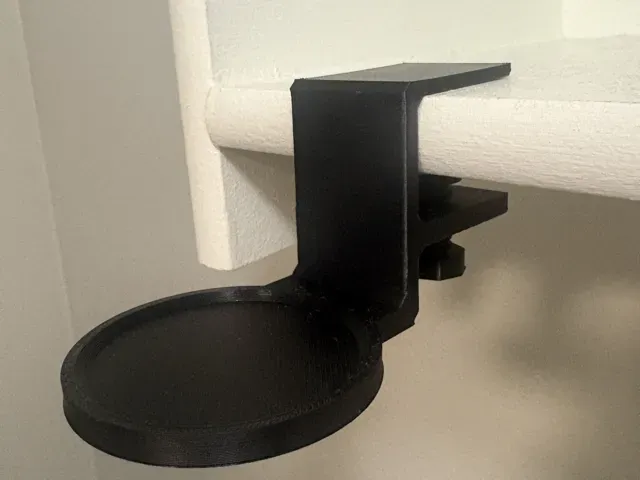

This is a shelf attachment for those liquid laundry detergent cups.

A nice advantage of this design and application is that you don't need to remove it from the shelf when you get a new container of laundry detergent. It can just stay in place once it's set. Easy install with no hassle in the future.

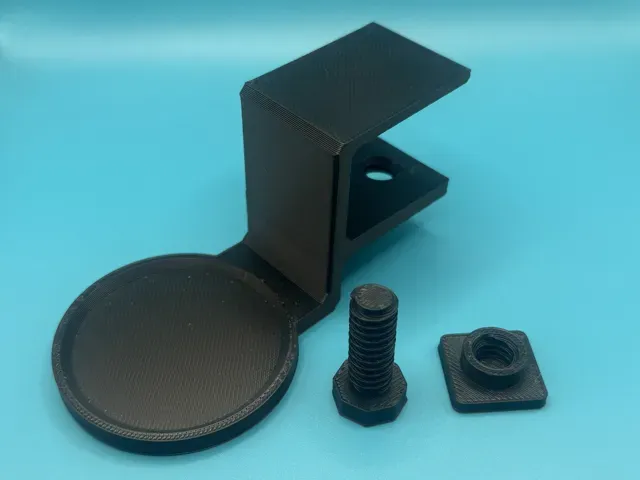

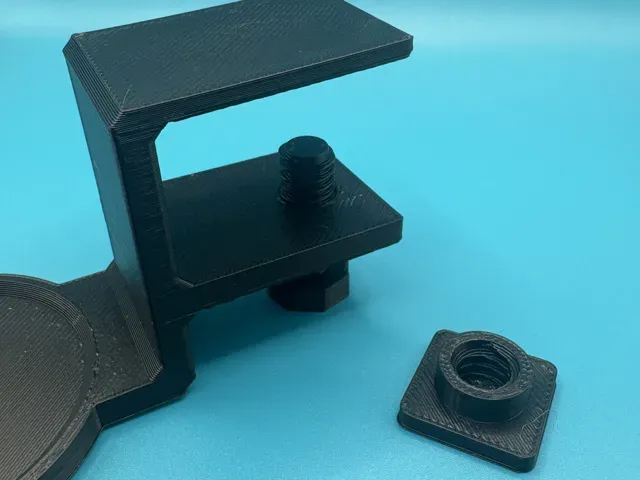

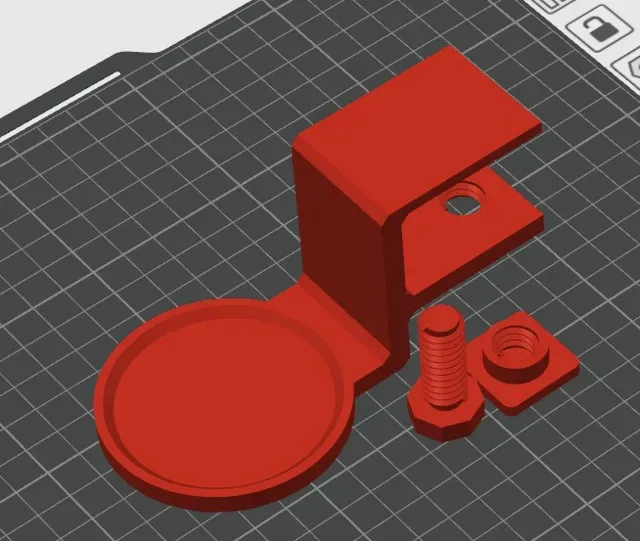

The print includes 3 components that allows it to attach to any size shelf, including those with small overhangs. If it doesn't fit your shelf please send me a message and I'll make any changes needed for you.

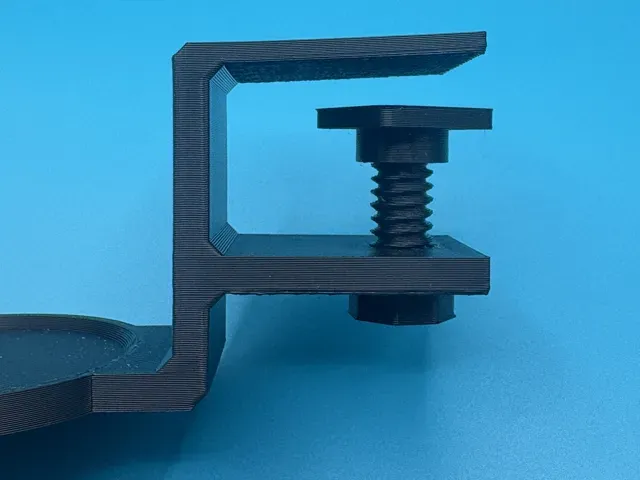

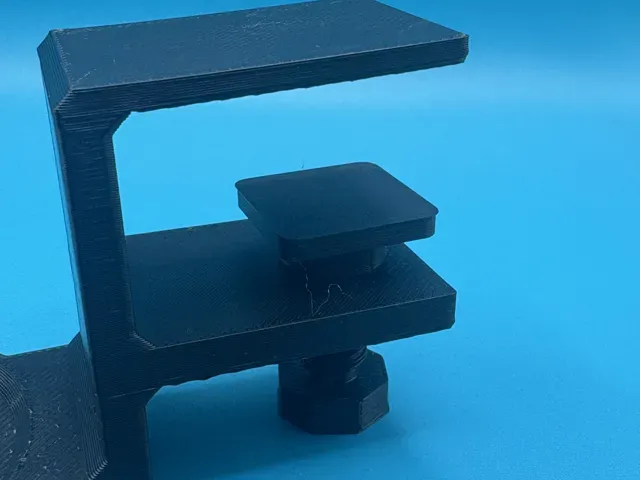

You don't need to tighten the bolt tightly at all, it's just meant to keep it from easily falling off. In theory this shelf cup holder is not withstanding hardly any weight or being bumped, so it should not need to be tight.

I didn't have any issues with the bolt thread tolerance, but if you're having any issues just message me and I'll adjust the tolerances as needed.

Руководства и профили печати

Профили печати и шаги

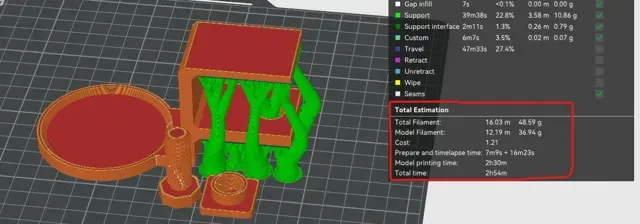

0.2mm layer, 2 walls, 15% infill. < 50g, < 3 hours I have changed some of the settings for each individual object. Mainly the layer height.

- Bolt - 0.12mm layer height (and 3 walls) - Bolt End Cap - 0.16mm layer height - Main shelf attachment - 0.20mm layer height - Supports are enabled for globally, then disabled for the bolt and end cap - First layer speeds slowed down Since this is not withstanding much force, it doesn't need a high infill, but feel free to change it if you'd like.
