I wanted to name it ‘’The GrowPro'' but I don't want any legal trouble, so the name is 16mm Pole Mount for Action Cameras or 16PMAC for short.

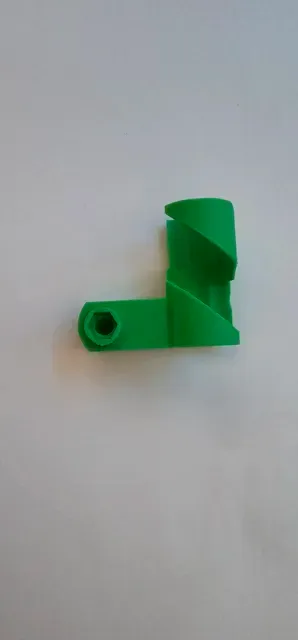

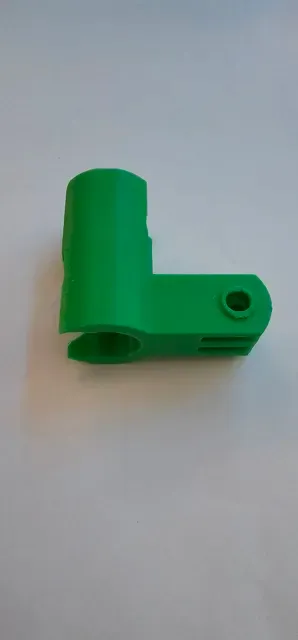

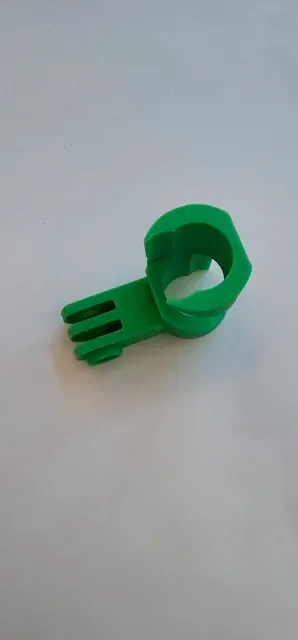

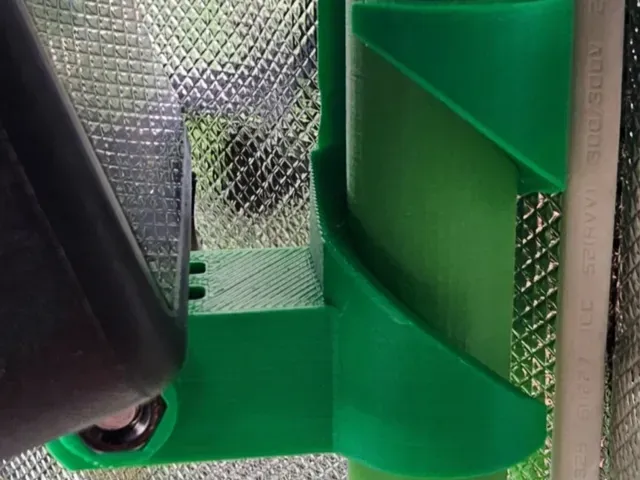

This is a twist grip mount for 16mm (5/8'') poles. It is designed to stay put on grow tent frames for

time-lapses without sliding down. The design makes it less prone to sliding over time, as the weight of the camera will cause some friction when mounted.

Requires an M5 nut and a gopro style thumb screw or at least an M5x20mm bolt.

Print settings :

- Material : PETG or ASA. (Use PLA at your own risk. It might be fine, it might not)

- Quality : 0,20mm Standard

- Walls : 4 walls for extra strength

- Infill : 30%

- Infill pattern : Gyroid

- Supports : tree(auto), default. The supports on this model is debatable if they are truly needed. I just keep them on.

Happy Lapsing!

Руководства и профили печати

Профили печати и шаги

16mm Twist grip 0,20mm, 4 walls, 30% infill, supports on Print settings :

- Material : PETG or ASA. (Use PLA at your own risk. It might be fine, it might not)

- Quality : 0,20mm Standard

- Walls : 4 walls for extra strength

- Infill : 30%

- Infill pattern : Gyroid

- Supports : tree(auto), default. The supports on this model is debatable if they are truly needed. I just keep them on.

22mm AC inf compatible 0.2mm 15% infill gyroid 4 walls 22mm pole twist clip AC infinity compatible test. Please report back if it does not fit.
