Описание

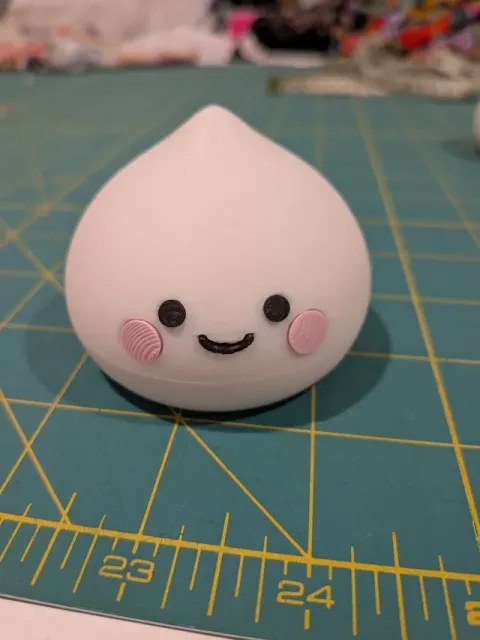

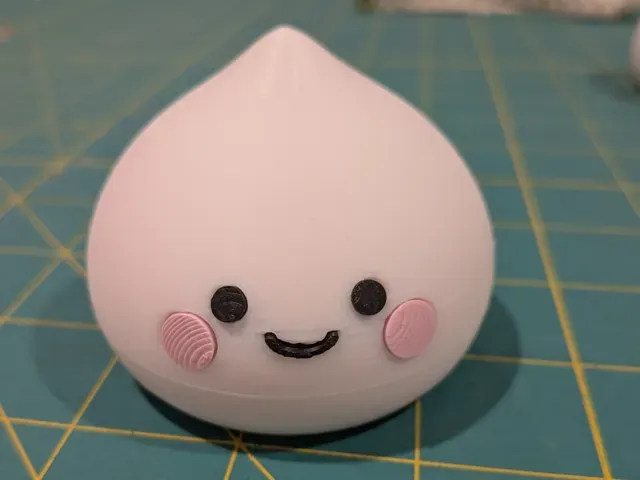

One washer is just not enough to keep your sewing patterns flat! Upgrade with these adorable, functional dumpling pattern weights. Designed to be heavy enough for denim yet smooth enough for silk, these weights use a pause at the top of a cavity to seal metal washers inside a 3D-printed shell.

This profile was tested on a the Bambu P1S and includes pre-set pauses to allow you to drop the washers in (I found it helpful to also lower the bed, which I did manually.)

Hardware needed:

- metal washers with a 2” diameter. The internal cavity is 7.2mm tall. I put in 5 washers that were about 1.2mm thick. This left tolerance for the nozzle to bridge over the washers.

Руководства и профили печати

Профили печати и шаги

0.16mm layer, 3 walls, 15% infill, NO AMS The features will print separately from the dumpling body as plugs which will fit in the sockets of the dumpling. I tried to dial in the tolerances, but the mouth socket definitely needed a little bit of filing to fit the plug in easily.

0.16mm layer, 3 walls, 15% infill Uses AMS for flush features.
