Woodworking T-Clamp System

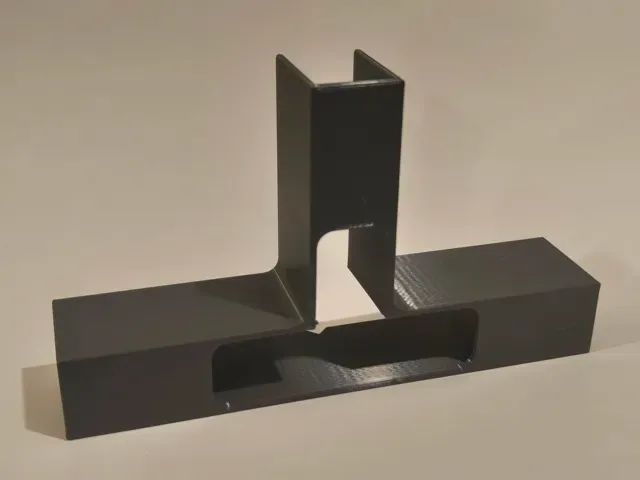

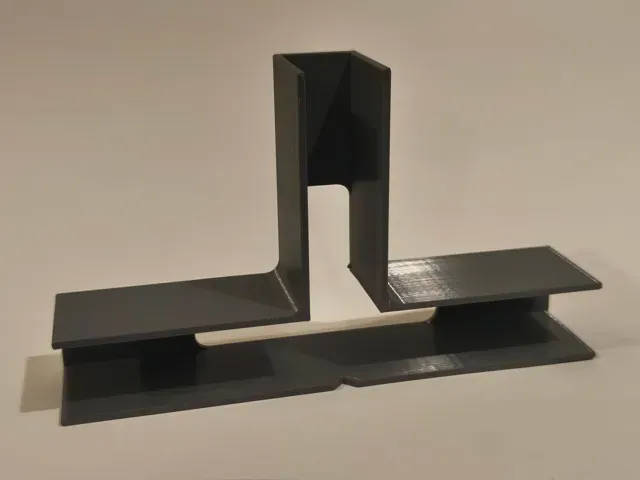

This model is a modular woodworking T-clamp system designed to simplify joining boards at 90-degree T-joints during glue-ups and assembly.

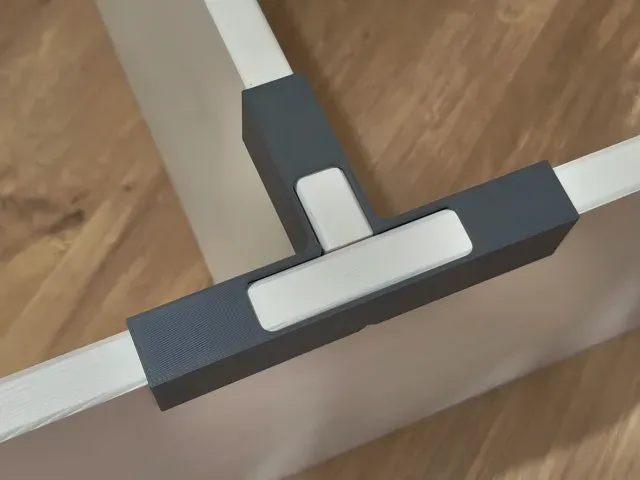

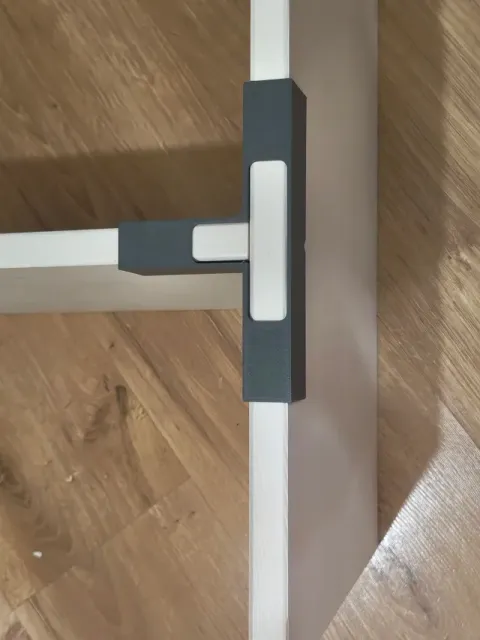

The system allows you to securely align and clamp boards of different thicknesses, making it ideal for cabinet making, furniture projects, shelving, and general woodworking . The design keeps both pieces properly aligned while glue cures, helping achieve clean and accurate joints.

Thanks to a large set of size variants , the clamps can accommodate many common board thicknesses used in woodworking.

Supported Board Thicknesses

The system supports boards with the following thicknesses:

8 mm – 10 mm – 12 mm – 16 mm – 18 mm – 22 mm – 23 mm – 25 mm – 28 mm – 38 mm

Each variant is designed for a specific combination of board thicknesses , allowing you to connect one board to another in a perpendicular T-joint.

Over 100 Size Variants

This set includes over 100 different clamp configurations , allowing you to combine:

- Short side board thickness: 8 / 10 / 12 / 16 / 18 / 22 / 23 / 25 / 28 / 38 mm with

- Long side board thickness: 8 / 10 / 12 / 16 / 18 / 22 / 23 / 25 / 28 / 38 mm This results in all possible combinations of these sizes , giving you maximum flexibility when working with different materials.

Features

- Designed for 90° T-joint alignment - Over 100 board thickness combinations - Helps maintain accurate positioning during glue-ups - Strong geometry optimized for 3D printing - Simple design with no moving parts - Ideal for woodworking, furniture making, and workshop use

Use Cases

- Gluing shelves into cabinet sides - Creating T-joints in furniture - Aligning boards during assembly - Workshop jigs and fixtures Print and Enjoy!
