Drill Bit Holder DIN Rail | DIN Infinity

Stop searching. Start working.

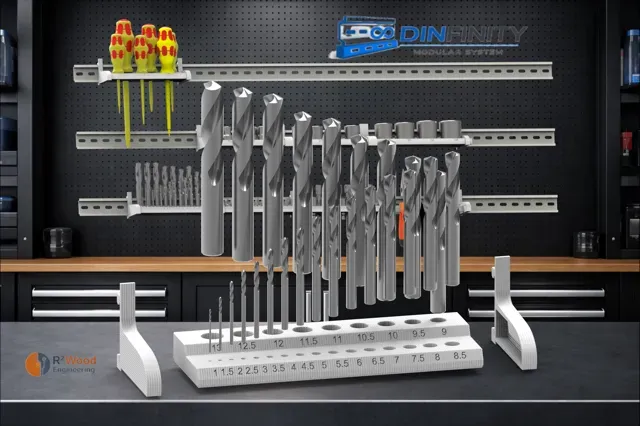

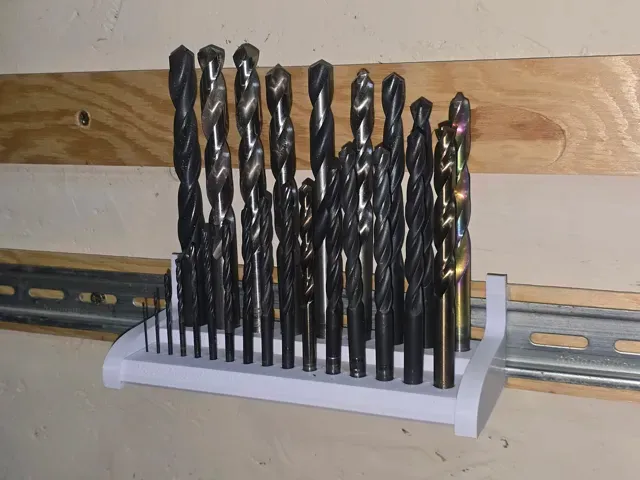

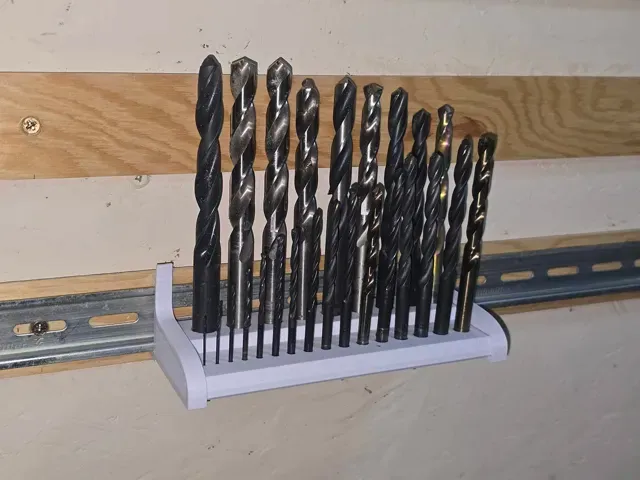

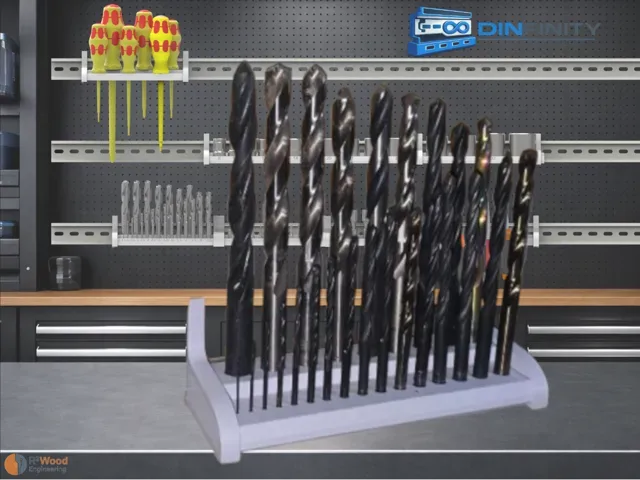

This holder is designed to organize metric drill bits from 1 mm to 13 mm (0.5 mm increments) , ensuring each size is immediately visible, correctly positioned, and always within reach.

Built for standard 35 mm DIN rails , it transforms scattered drill bits into a structured, modular system aligned with industrial mounting standards.

Each slot is dimensioned for quick identification and smooth access, reducing time loss and improving workflow efficiency.

The design is robust, compact, and optimized for reliable support-free 3D printing .

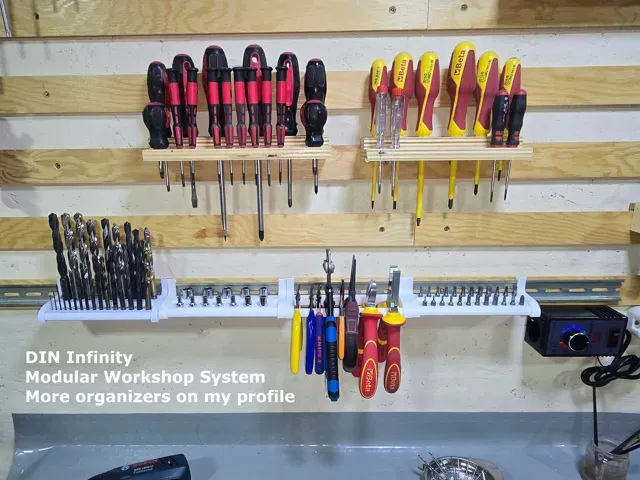

This model is part of DIN Infinity – Modular Workshop System , a scalable ecosystem of tool holders designed to create a consistent, expandable organization system.

Available modules include:

– Bit Holder DIN Rail | DIN Infinity   https://makerworld.com/en/models/2536587-bit-holder-din-rail-din-infinity#profileId-2792233

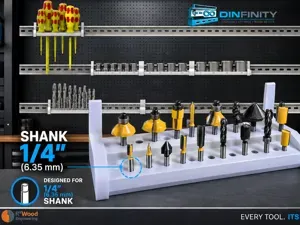

-  Router Bit Holder 8mm DIN Rail | DIN Infinity https://makerworld.com/en/models/2568193-router-bit-holder-8mm-din-rail-din-infinity#profileId-2851089

-  Pliers Holder – DIN Rail Organizer | DIN Infinity https://makerworld.com/en/models/2584962-pliers-holder-din-rail-organizer-din-infinity#profileId-2851478

- Screwdriver Holder DIN Infinity BETA 1273MQ/D6 https://makerworld.com/en/models/2593288-screwdriver-holder-din-infinity-beta-1273mq-d6#profileId-2861631 – Wiha SlimFix Holder DIN Rail | DIN Infinity https://makerworld.com/en/models/2607625-wiha-slimfix-holder-din-rail-din-infinity#profileId-2877965

Each module is designed to work together, allowing you to build a fully customized setup over time.

⚠️ IMPORTANT

DIN rail adapters are required and must be downloaded separately: https://makerworld.com/it/models/2522319-din-rail-organizer-adapter-din-infinity#profileId-2774994

⚙️ Features

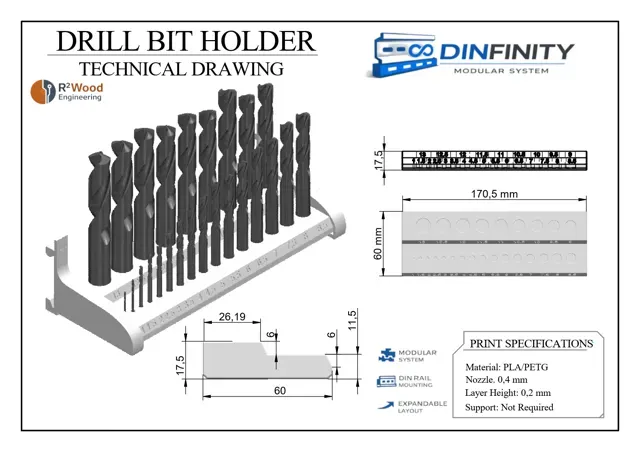

- Compatible with standard DIN rail (35 mm) - Supports drill bits from 1 mm to 13 mm (0.5 mm step) - Clear visual layout for instant identification - Compact and durable design - Support-free printing - Fully modular and expandable system

⚙️ Print Settings

Material: PLA / PETG Nozzle: 0.4 mm Layer height: 0.2 mm Supports: Not required
