Cabinet Shelf Pin Drilling Jig

32mm Cabinet Shelf Pin Drilling Jig – 5mm System with 37mm Offset & Repositioning Pins

As promised in my FDC Maker Lab bio, 3D printing meets woodworking once again with a practical and highly useful tool designed for real furniture‑making needs.

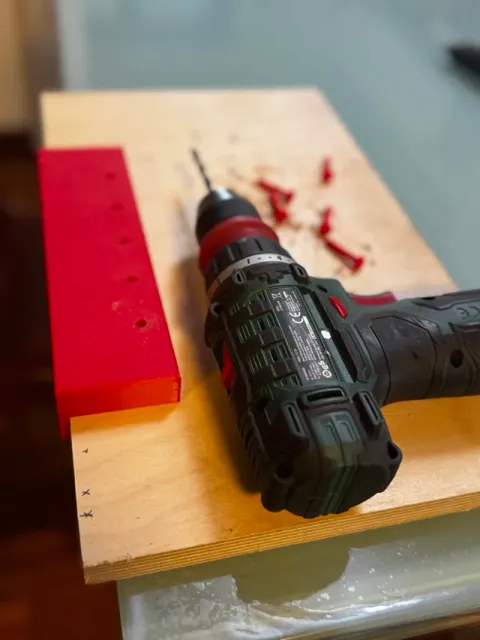

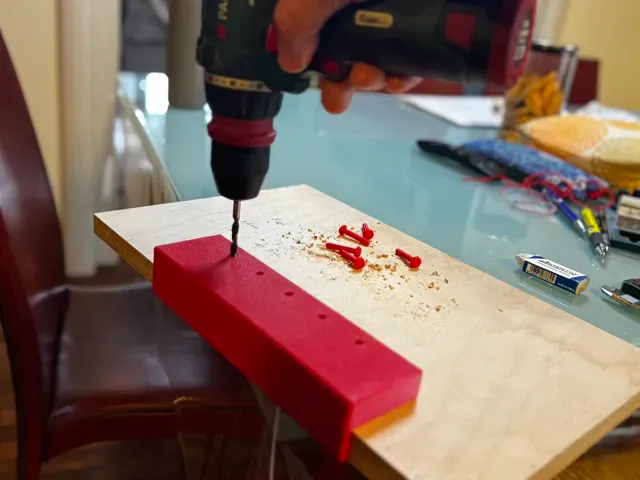

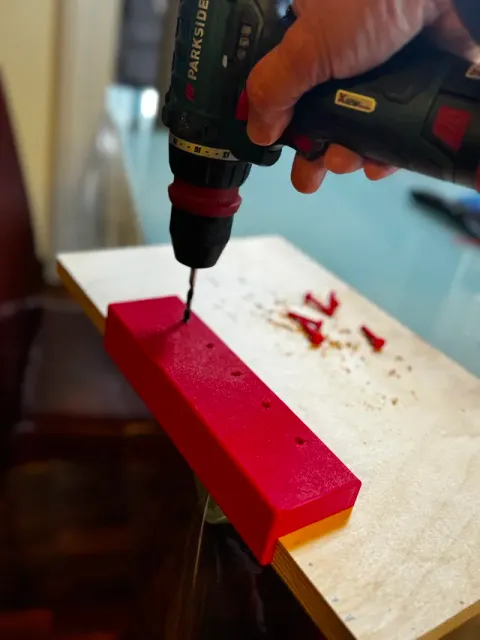

This drilling jig is designed to create perfectly aligned 5 mm holes for cabinet sides , ideal for installing adjustable shelves following the standard European system.

The jig automatically sets:

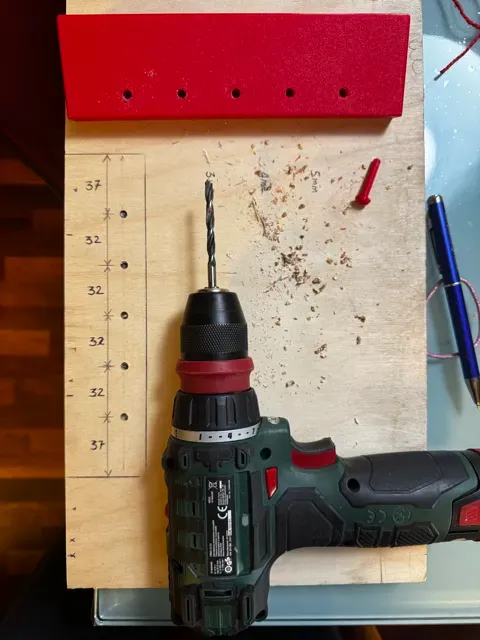

- 37 mm distance from the top and bottom of the panel - 32 mm spacing between holes , ensuring professional and repeatable results For drilling more than 5 consecutive holes , simply reposition the jig after the first set of holes.

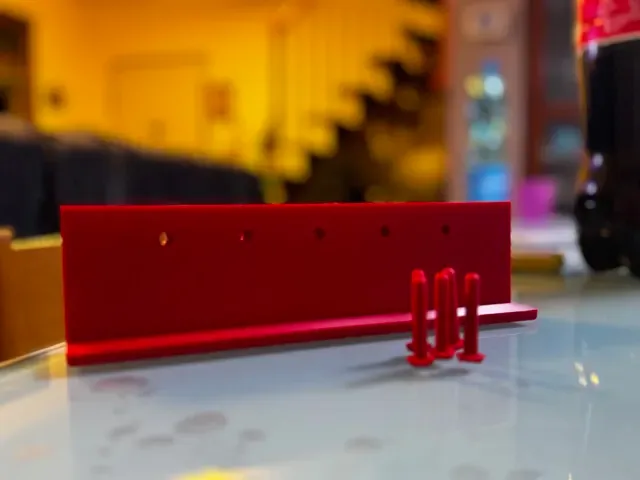

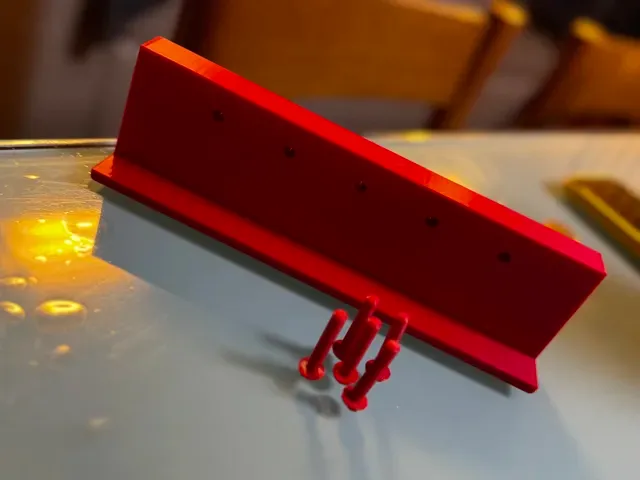

The included printed alignment pins fit into the previously drilled holes, allowing you to continue drilling with the same 32 mm spacing — accurately and without measuring again.

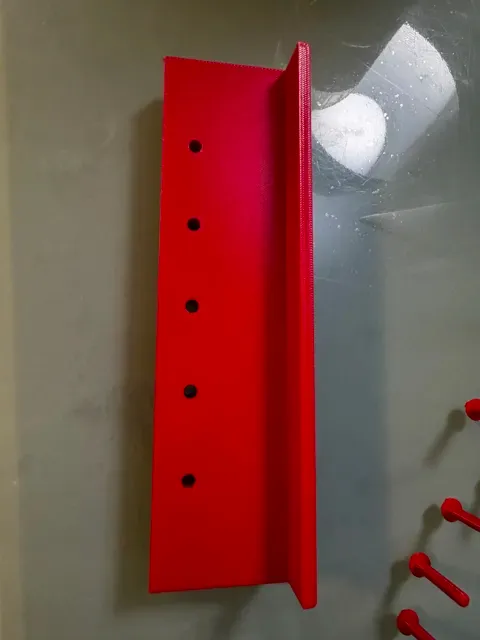

A built‑in reference edge lets the jig sit perfectly flush against the side of the wooden panel, guaranteeing correct positioning every time.

Like all functional workshop tools, PETG is the recommended material for better durability and wear resistance. That said, I also printed and tested this jig in PLA , and it works perfectly fine for regular woodworking use.

✅ Key features

- Standard 5 mm shelf pin holes - 32 mm system spacing - 37 mm offset from top and bottom - Repositioning system with printed alignment pins - Reference edge for perfect panel alignment - Ideal for cabinet making, furniture building, shelving systems A simple, precise, and extremely useful jig for anyone building cabinets or furniture.
