TPU feed assist module lower mounts H2D H2S H2C

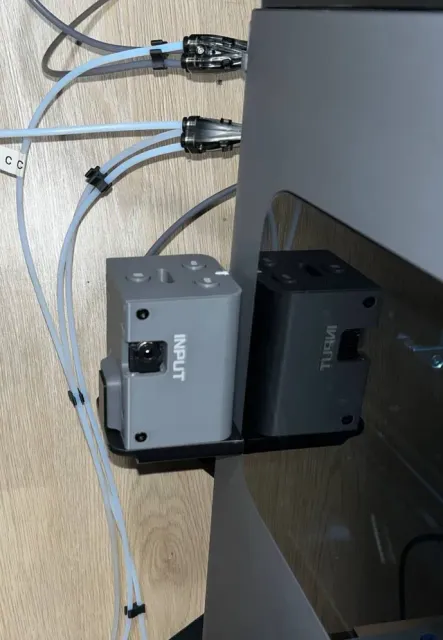

Boost Me NEW: I added a lower mount for installation of the Module on the side of the printer

Update : New print profile added for the side mount without the cable clips on the rear of the mount if you don't need them to save 1h30 of print time… (If you want I design a slip-on clip design to keep them without compromising the faster print profile, let me know in the comments)

Update 2: I designed a Filament Track Switch mount as an add-on to the lowered lateral type mount. This track switch mount is available here: https://makerworld.com/en/models/2844337-filament-track-switch-left-side-install-h2d-h2c#profileId-3171383

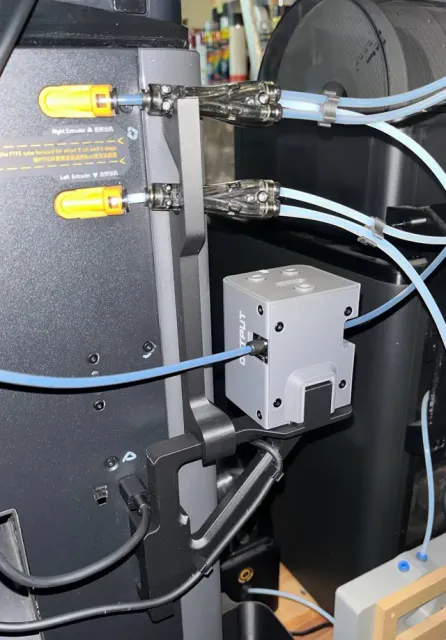

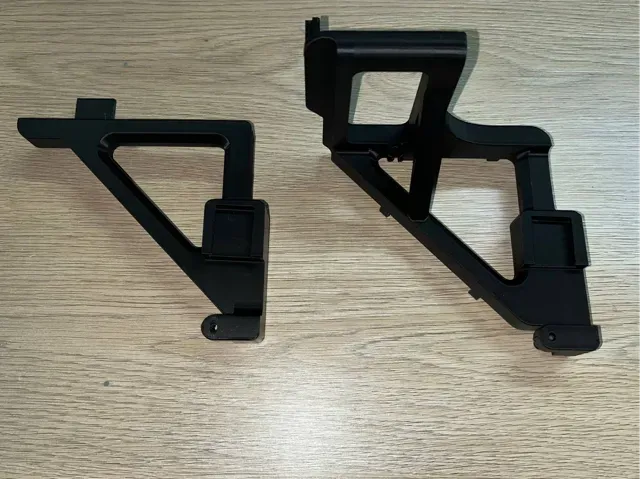

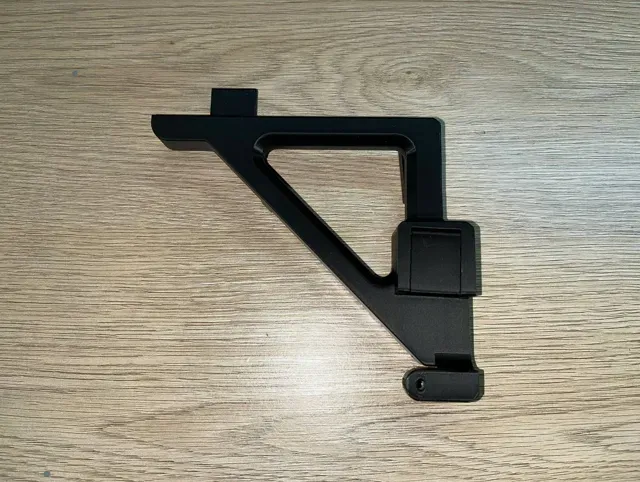

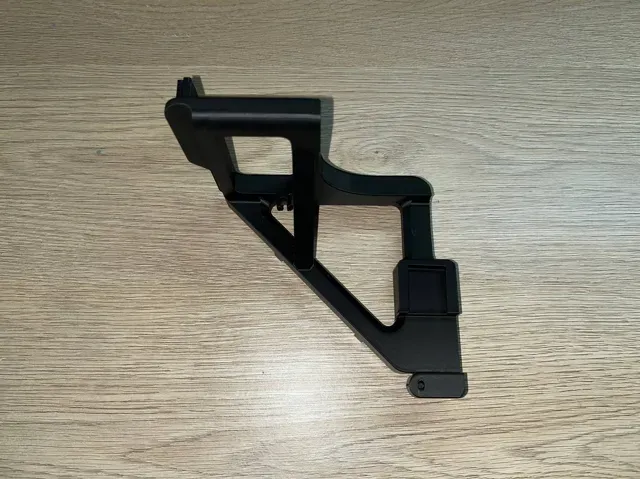

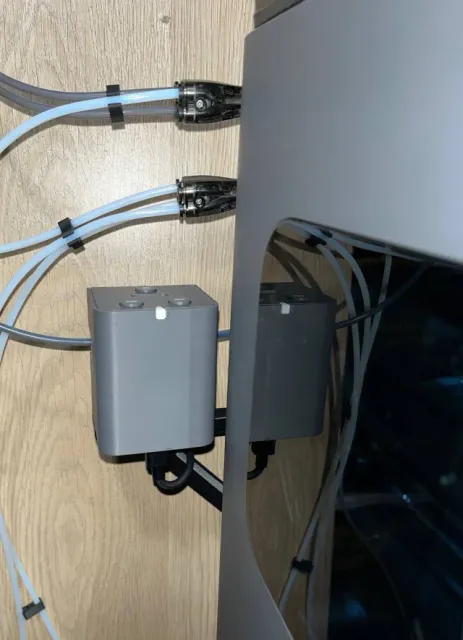

These are 2 lowered versions of the mount for H2D/H2S/H2C TPU feed assist module. One is for lateral installation which is more convenient if you have an AMS-HT on top of the printer and the other for installation on the side of the printer which is more convenient if your AMS-HT is on the desk/table .

The original Bambu Lab mount is interfering with the PTFE inputs when used in conjunction with 4-in-1 splitter(s).

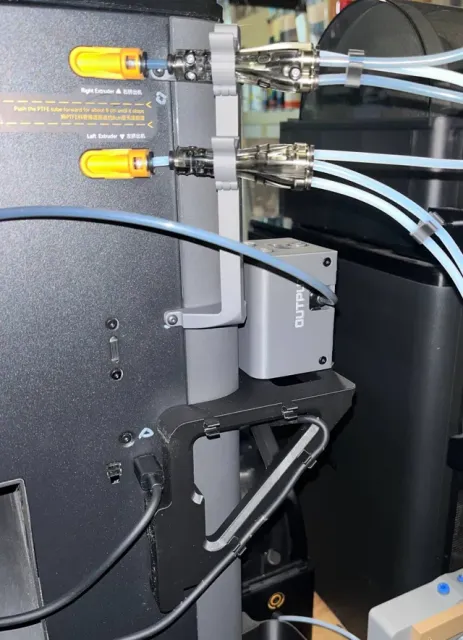

The feed assist module is now installed 100mm lower than the bambulab proposition so it will no longer interfere with the printer PTFE inputs.

I modified some dimensions so that the module sits more firmly in its mount and also added cable clips to route and hide the power cable.

I added a splitter stand to the print of the lateral mount if you need to support your sagging 4-in-1 splitters. It’s just a saddle type that sits on the mount so it can be slid in or out depending on your setup. The stand step file is provided so that you can modify it if does not suit your setup. It should work with both the original splitter or the H2C type. If you don’t want to use it or does not need it, just delete it from the plate.

For even better support of the PTFE adapters, you can try my new Ultimate PTFE Adapter Holder:

https://makerworld.com/en/models/2581204-ultimate-ptfe-adapter-holder-for-h2-series-printer

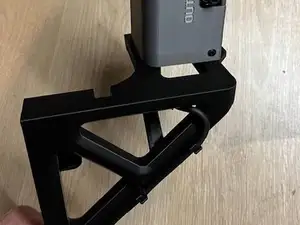

If you prefer a higher side mount that will also clear the PTFE inputs, it is available here

https://makerworld.com/en/models/2556359-tpu-feed-assist-side-mount-for-h2-series
