Festool hose triple adapter - D36 to 3x D27

Summary

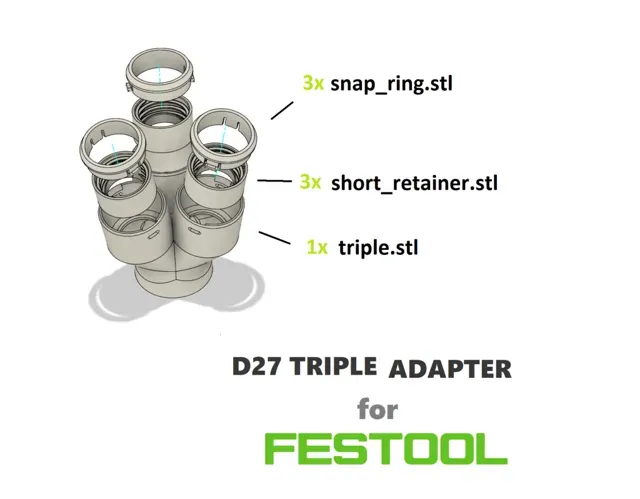

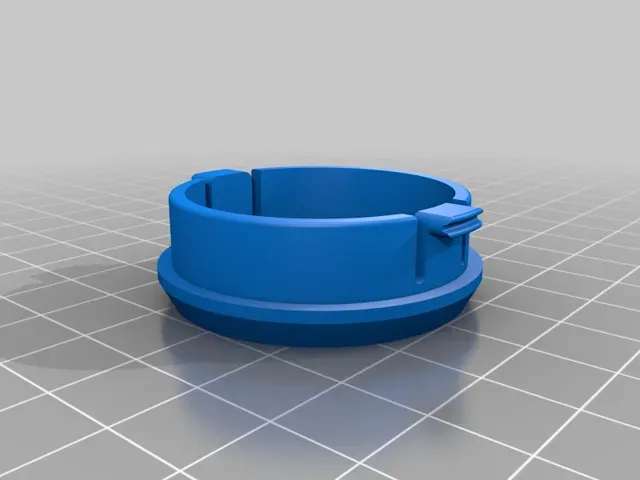

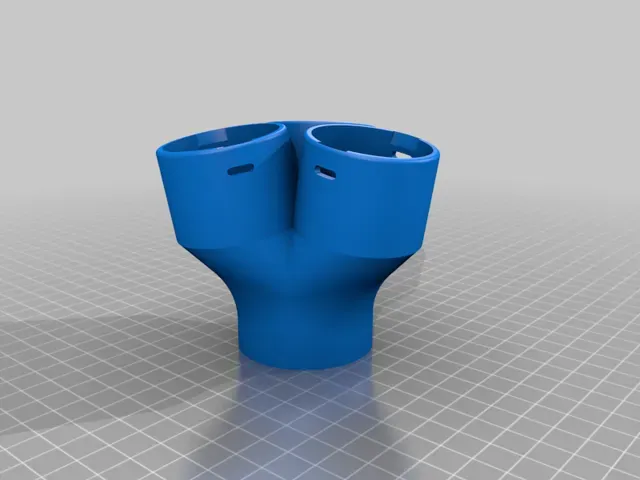

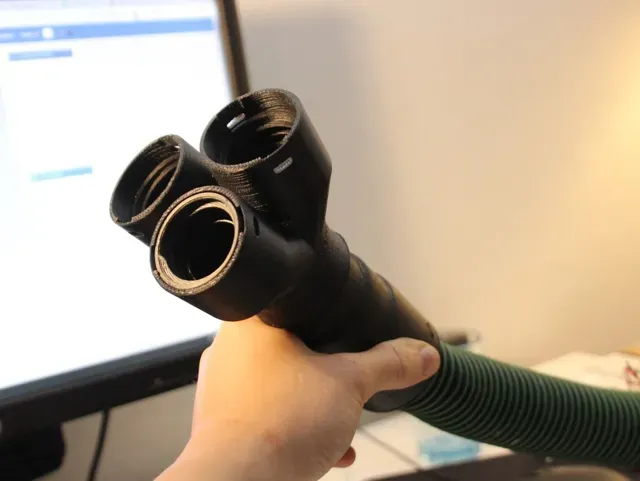

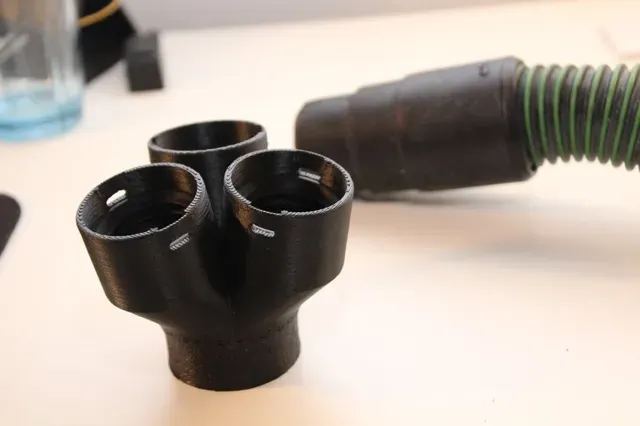

This monster is an adapter to attach 3 festool D27 hoses to one port. The port has a diameter of 45 mm which will fit the D36 vacuum adapter among others. The three D27 hoses are attached with retainers that have a left handed thread and a snap ring that locks into the slots in the adapter.

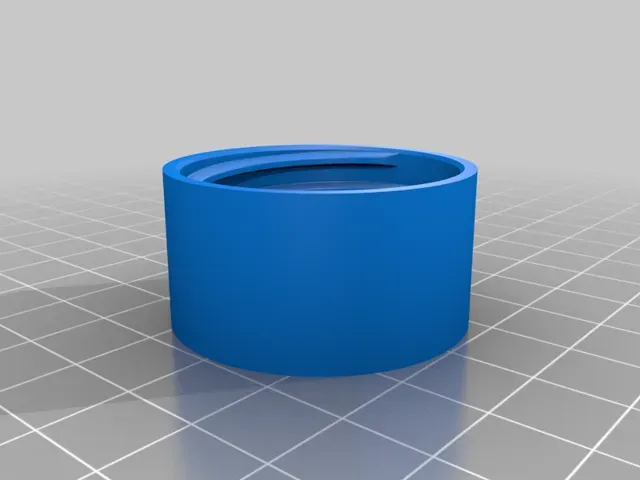

The retainers used are slightly shorter than the original Festool, but the snap rings are the same dimensions.

I use it to provide suction at the three dust ports on my Dewalt DW707 miter saw.

Check out my profile, I have other Festool hose adapters as well.

Print Settings

Resolution:

0.2

Infill: 50

Filament:

Generic TPU, ABS/ASA Notes:

I printed at 0.2 mm layer height. The first 140 layers in TPU so get a flexible dust port, then switched to ABS to get a stiffer print at the top.

The central pillar acts as support and is broken of after printing.
