Speedybee Mario 5 DJI o4 Pro antenna mount

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MF
  • 9 Лайки
  • 34 Загрузки
  • 13 Напечатали
  • 34 В подборках
  • 0 Бусты
  • 1 Комментарии
  • 0 Просмотры

Автор:JureZZ

Опубликована

Описание

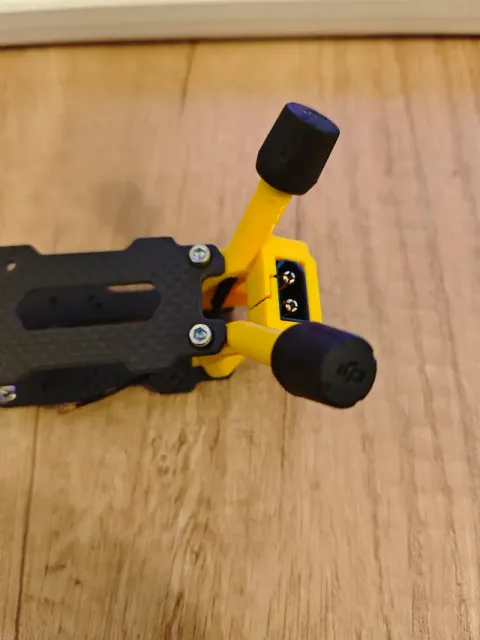

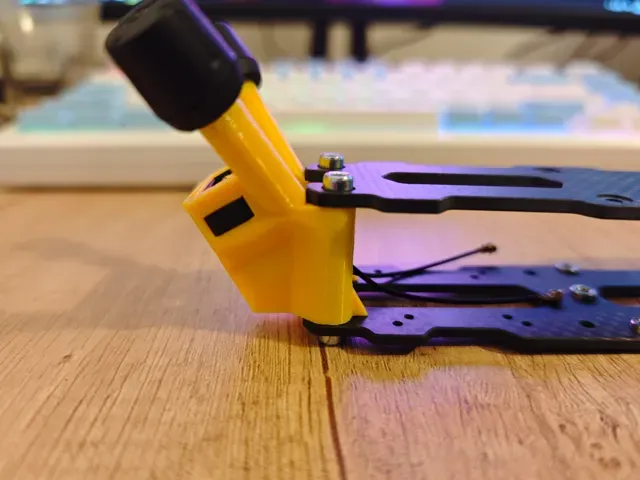

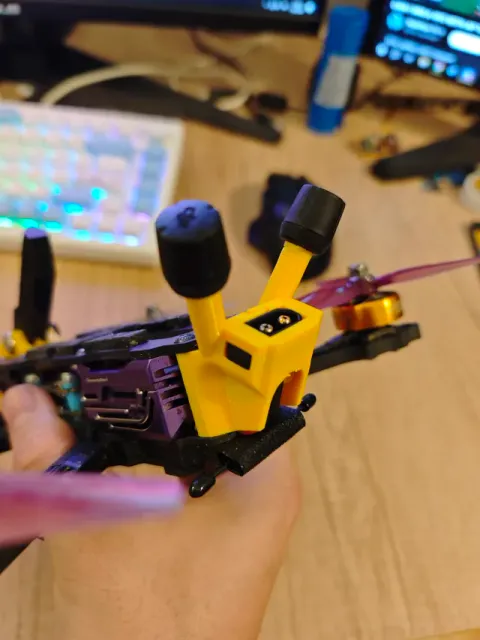

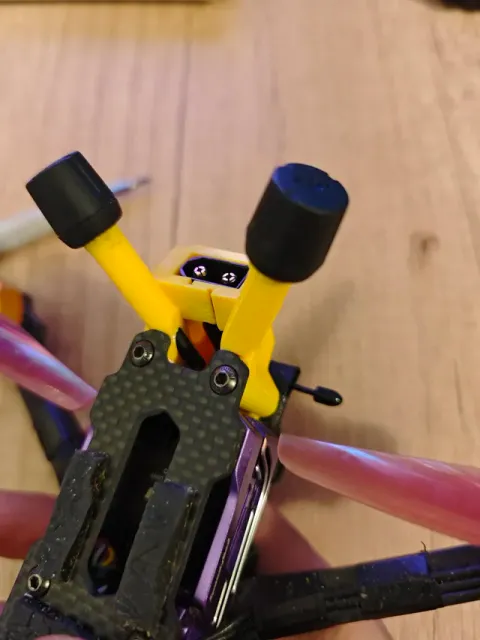

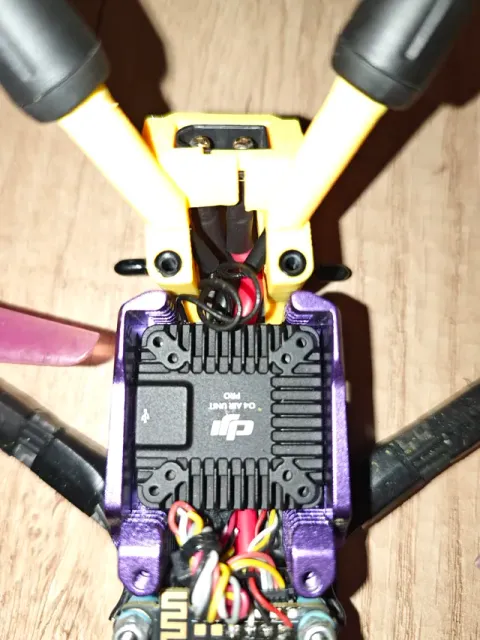

I was searching for a design close to the original that comes with the frame, but without that single antenna mount at the end. So I designed it myself and also added a stopper for the DJI antenna so that, in case of a crash, it doesn’t move into the frame. The design has ability to insert original xt60 that comes with the frame.

Model features:

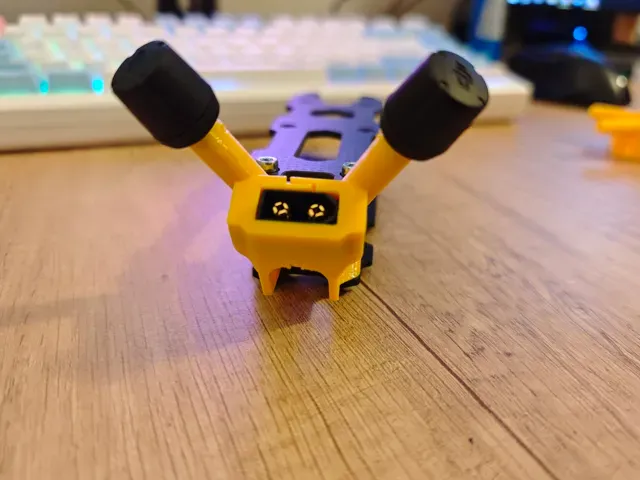

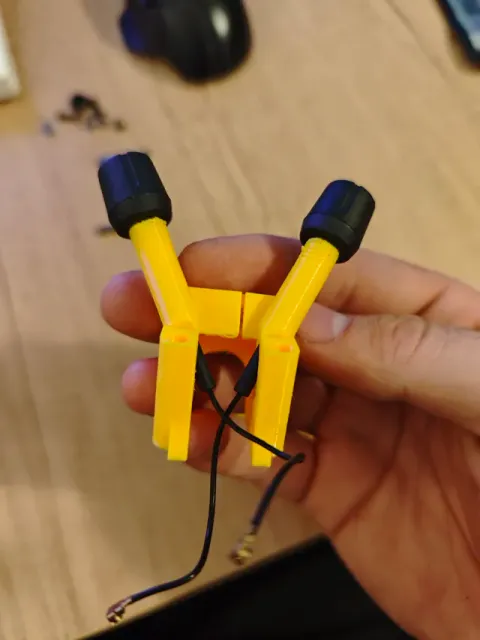

- Antennas fit snugly into the print, so they don’t move - When the antennas are slid to the end, they are secured and won’t shift during a crash - XT60 slot - Clean design 😉

Happy printing

Boost Me It would help a ton if you drop a review, like or maybe a boost if i deserved it ;)

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 4 walls, 10% infill Standard profile for generic TPU A95 filament

- added some supports

0.2mm layer height
