Описание

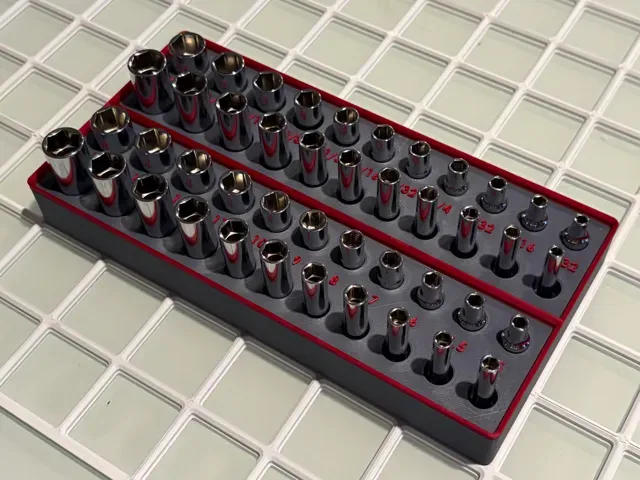

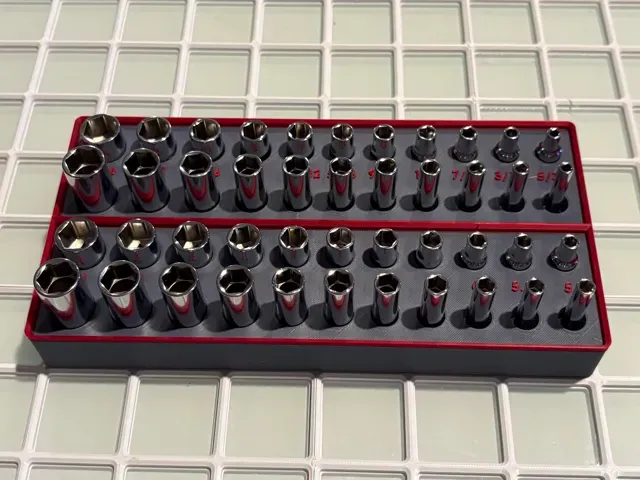

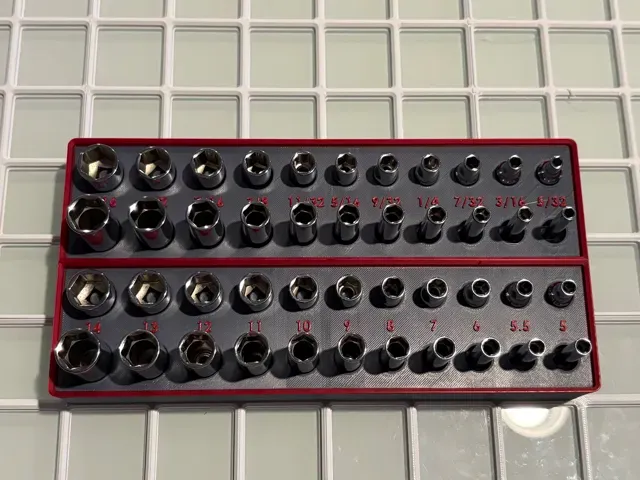

Ok so I had a dilemma with this one.  I was asked to make a Gridfinity bin for the ¼" Icon sockets.  I looked at it and it making like my other sets with SAE and metric separately didn't quite fit the gridfinity system well.  The 1 wide bins were a bit too narrow and the 2 wide were pretty excessive.  I thought about it for a while and just ended up doing multiple versions of this, here is the first one, it is a combined SAE and metric in a 3X6 bin for all of the ¼" Icon socket sets, shallow and deep. The links for the other version are below, enjoy!

Here are the other versions:

Half-Width bins (1.5X6):

https://makerworld.com/en/models/2644404-icon-1-4-sae-metric-socket-1-5x-gridfinity-bins#profileId-2922384

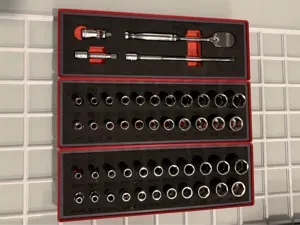

Foam Insert Kit:

https://makerworld.com/en/models/2066437-icon-1-4-ratchet-service-kit-gridfinity-bin#profileId-2231555

Full Width Bins (2X6):

https://makerworld.com/en/models/2651182-icon-1-4-sae-metric-socket-2x6-gridfinity-bins#profileId-2931048

Sockets they fit:

https://www.harborfreight.com/14-in-drive-sae-professional-shallow-socket-set-11-piece-57957.html

https://www.harborfreight.com/14-in-drive-metric-professional-shallow-socket-set-11-piece-58100.html

https://www.harborfreight.com/14-in-drive-sae-professional-deep-socket-set-11-piece-58101.html

https://www.harborfreight.com/14-in-drive-metric-professional-deep-socket-set-11-piece-58102.html

https://www.harborfreight.com/14-in-drive-sae-and-metric-modular-general-service-socket-set-48-piece-70311.html

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 15% infill
