Irrigation System | 1/4”OD - 4.6mm ID Micro Drip

SDI Modular Irrigation System Without Limits

C59 GardenWorks | Yard care made easy, one print at a time.

With the rising cost of living, having what you need at your fingertips makes more sense than ever.

This is just the beginning , a first glimpse of what the SmartDrip system can become.

This isn’t a finished system.

No AI was harmed in the making of this cover photo.

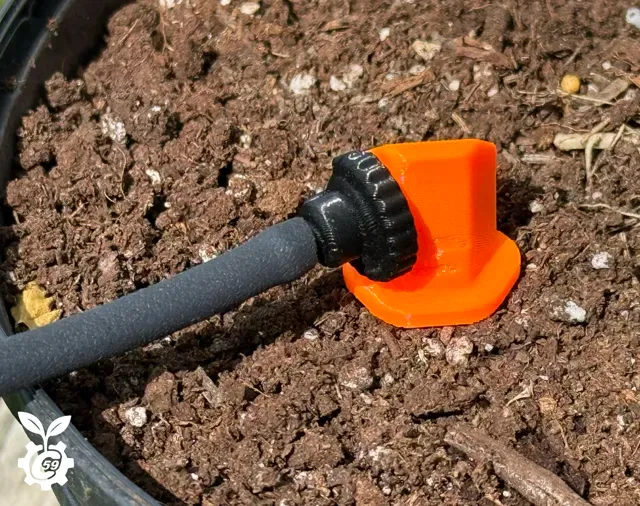

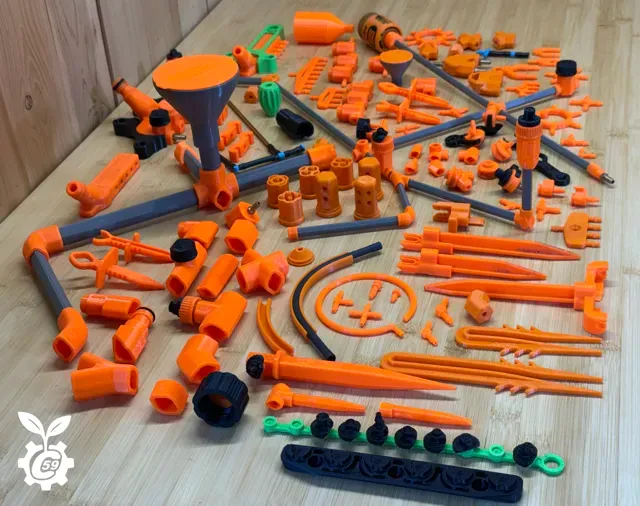

The first batch focus on core hardware: fittings, emitters, base stake and hubs.

More is on the way…

- Yeah, it might leak… sometimes a little elbow fluid helps fix things. - If dealing with all the files and options is too much, just move on and keep going. - I'll sort things out and adapt as things evolve. - Please note : If you are using Handy, there may be multiple versions, and some items in a profile or plate may not be needed. You can unselect them to avoid printing unnecessary elements. - In the Handy app , list order may change. To keep intended order or to not have size and thing mixed, use the desktop or mobile browser version if it can help! If interest continues, I’ll explore additional modules, possibility and introduce others things!

Latest Updates:

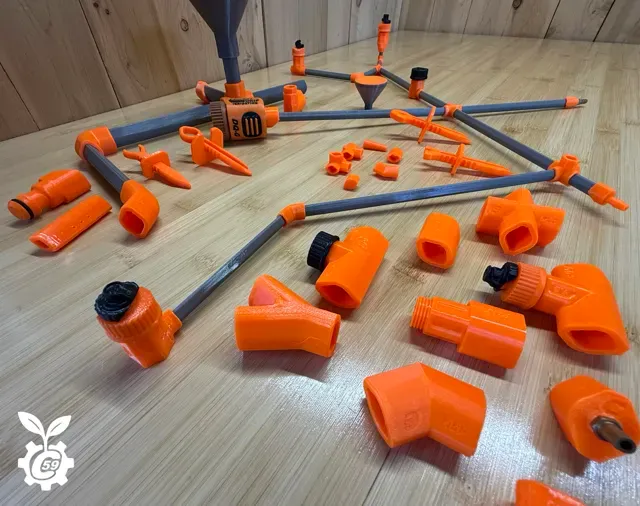

- SmartPipe – Hardline irrigation MiniPipe & StandardPipe . - Ideal for gravity but also for pressure with proper preparation. - Lets match existing irrigation tubing with MiniPipe and StandardPipe (also together). Both feature the full range of Vector, DripControl, and DeepIrr, RootDrip capabilities available with flexible line. - These lines will need to be sealed or glued depending on the pressure . If you’re irrigating edible crops, be sure to use a food-safe sealing or bonding solution if it comes into contact with the water. - You can also print some FlowPipe in TPU for added versatility! - More option will be introduced, this is the first release of SmartPipe . Upcoming

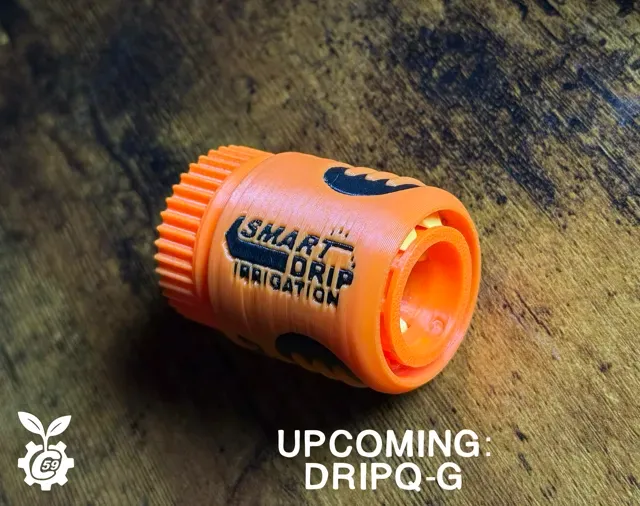

- DQ-G Quick connector (Still ongoing) - More… 💡 Ideal for:

- Low-pressure and gravity-fed irrigation systems - Pressure when sealed (varies depending on components/ pressure). - Micro drip irrigation setups - Quick repairs (car vacuum lines, windshield washer systems) - DIY projects when flexibility matters Fits:

- ¼" OD irrigation line (approximately 4.6 mm ID ). Usage Guidelines

- When connecting to a main hose , always use a pressure regulator before the hub. - Newer hub can handle high-pressure at your own risk. - Install a cartridge-type filter upstream to prevent clogging or failure of the hub, valves, and nozzles. Tips

- Using hot water during assembly can help reduce wear on barbs/nipples, extend component life, and support better long-term durability with less waste. - Fittings require the same preparation as the hub and may also require sealing depending on your setup. - Horizontal print orientation improves strength, but light filing may be required on the lower section and upper area of the fitting. This can vary depending on tube hardness, age, type, and brand. - The user is responsible for any required filing, sanding, sealing, tube compatibility verification, and final leak-proofing of the hub assembly, fittings & accessories. - Use a small torch to finish the sanded/ filed barb to smooth it. - Rinse before using. - Make small test prints first. Scaling the part up slightly can also help achieve a better fit for slightly larger tubing. - For reduced sanding, filing, a brass HF version will also be available. It requires tapping and may also require sealing depending on the application.

Before Printing:

- This is small, so ensure you have a clean bed and in good condition to prevent failure and good part adhesion. Need something else? Hit me up!

- Feel free to ask for custom designs, bringing the impossible… possible . Send a quick sketch and I’ll make some magic! DripControl

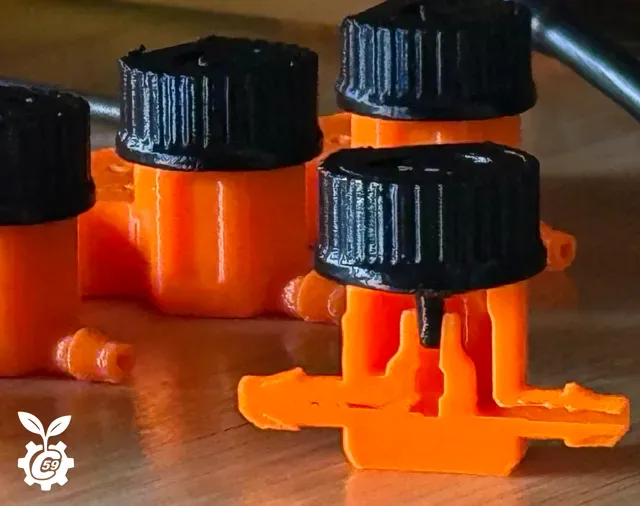

- In-line adjustable flow-control needle valve - Available in HF brass barb configurations - Compatible with both pin and pinless VectorCap setups, depending on the application and VectorNozzle used - DripVector bases differ and operate independently and can be individually adjusted for precise flow control without restricting adjacent units. Action HD Video: Control your irrigation

DripVector

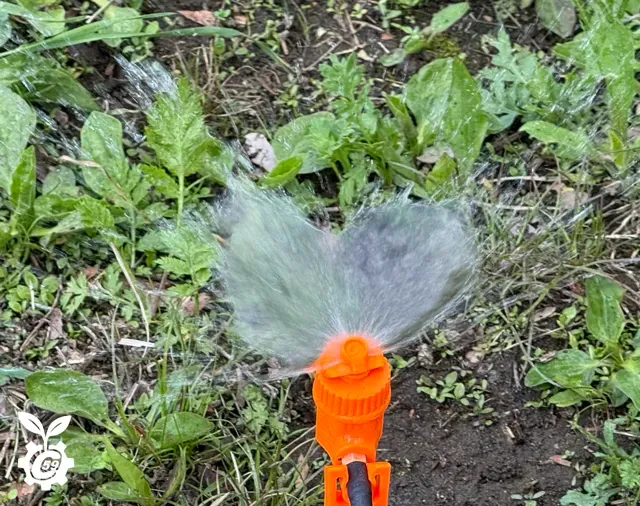

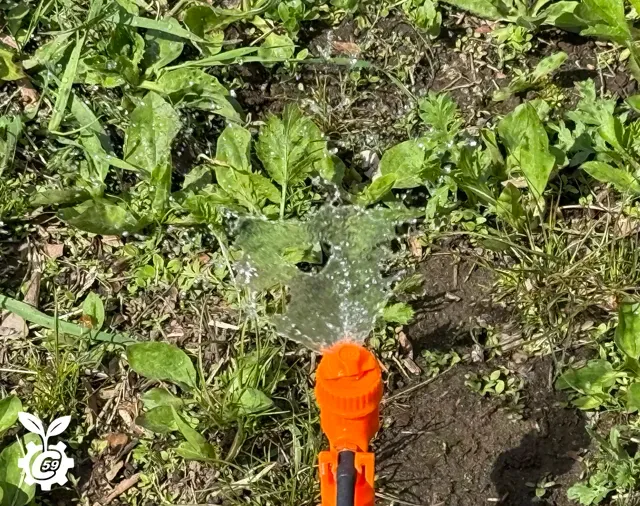

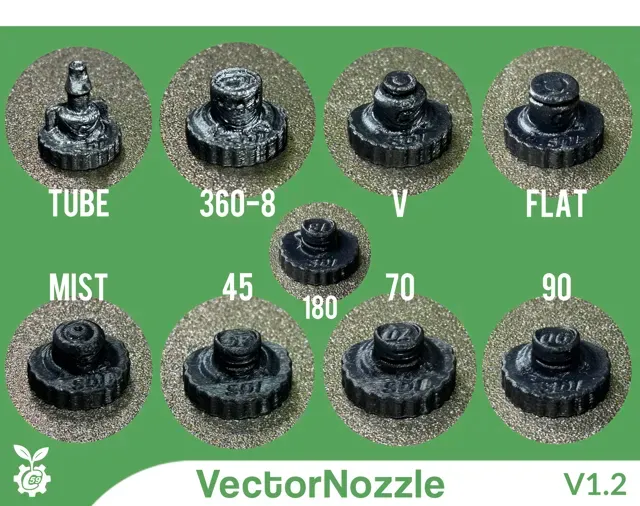

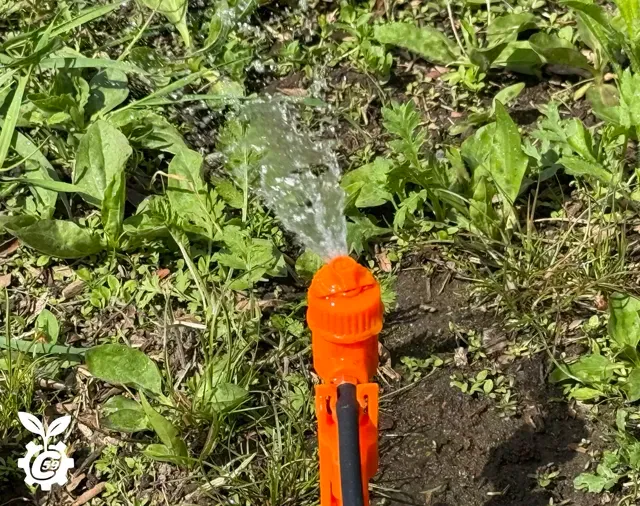

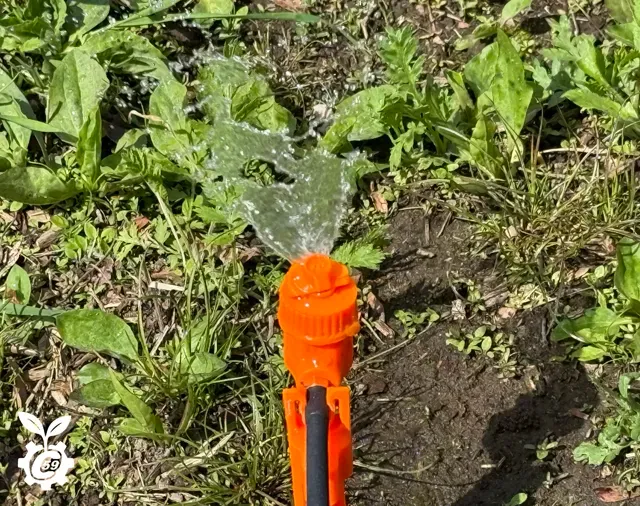

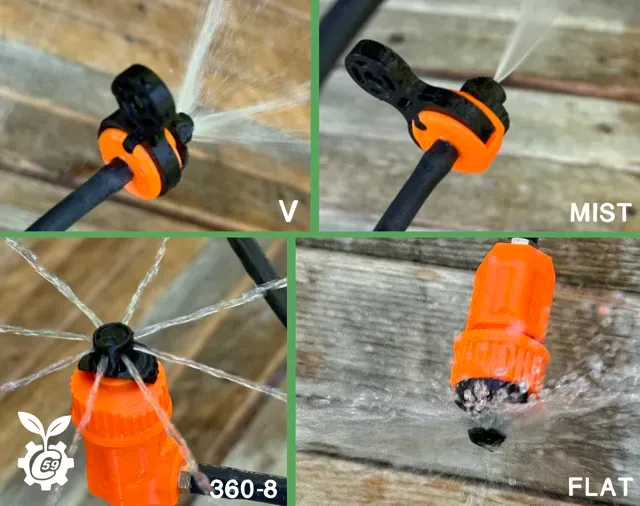

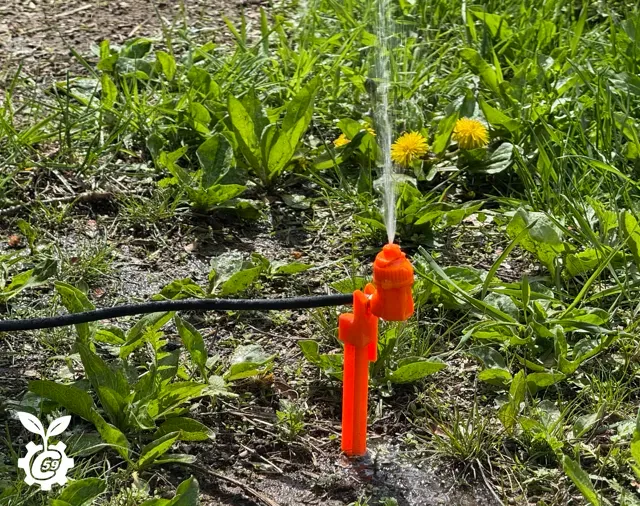

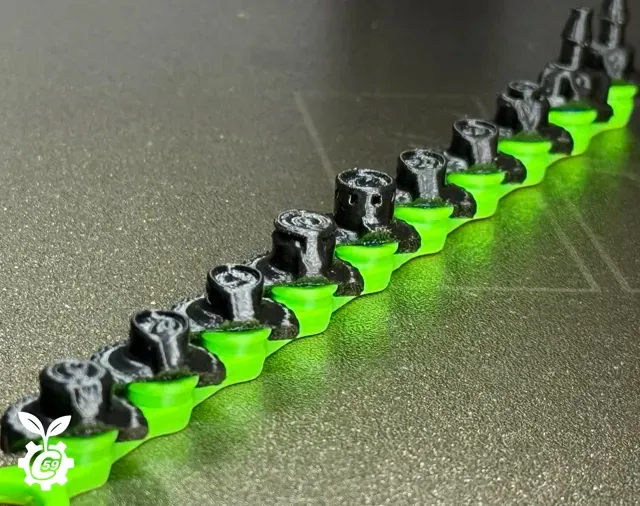

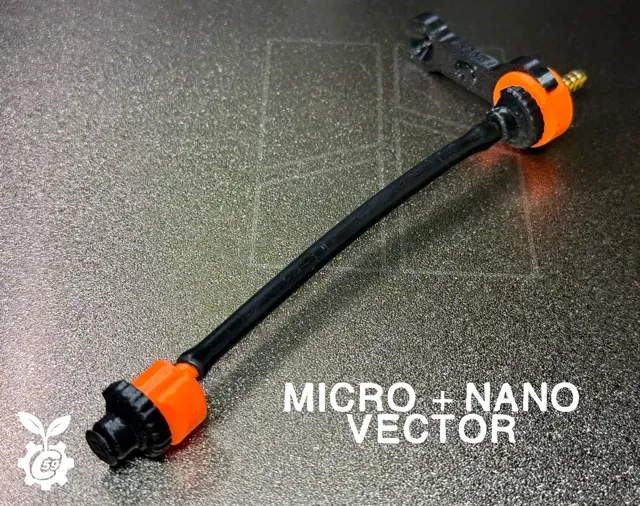

- Smart modular emitters with adjustable and fixed flow. - Spray patterns: 45°, 70°, 90°, 180°, 360°, and mist. - Features quick-interchangeable nozzles for flexible spray-pattern control compatible across all emitters. - DripVector: is the original emitter , available in both variable-flow and fixed-flow configurations. - AirVector: Designed for suspended applications where variable flow is required. - MicroVector: Offers the most versatile mounting options available in a fixed-flow configuration. - NanoVector: The smallest emitter available , with same quick-change nozzle system and fixed flow. - Additional spray-pattern designs are currently in development. Please note: The print angle leaves a small notch on the flange. When aligned correctly, this notch can help guide the nozzle into place more easily. However, depending on filament shrinkage, print settings, and other factors, the notch may also become a point where the nozzle can slide more easily.

Testing has shown that fitment can vary, even between prints made on the same or different machine using the same spool and nozzle size and wear.

If needed , you can match components with the best-fitting nozzle or make minor adjustments to the nozzle size for a tighter fit. In most cases , using an O ring will keep everything in place.

The Nozzle O ring , whether a standard one or the printed version provided, helps retain the nozzle and improve overall stability.

Hub

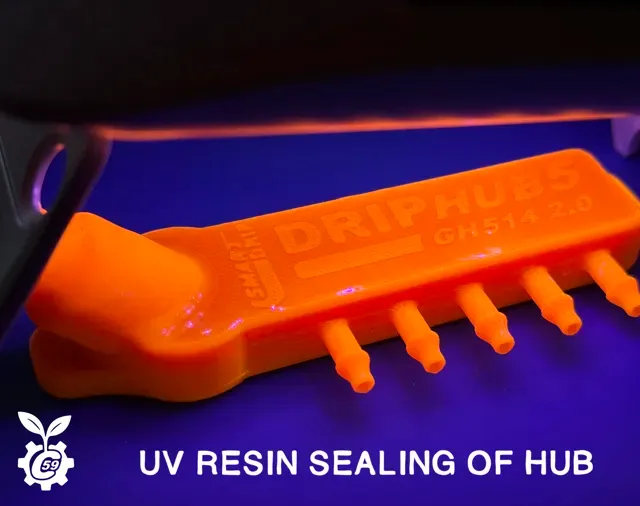

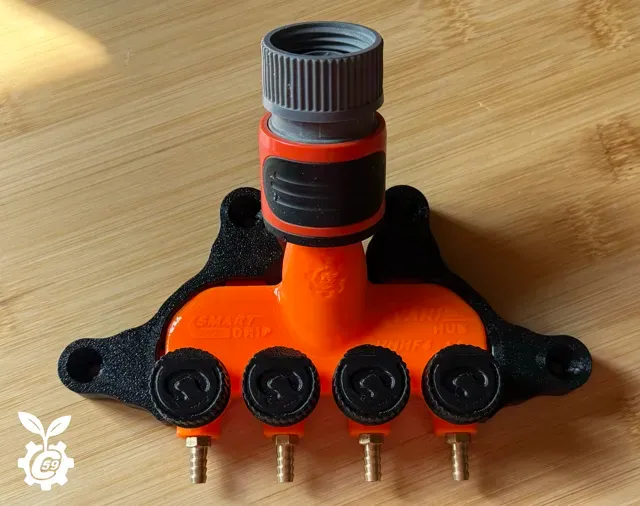

- Hub offerings will change and evolve over time. - Available with plastic nipples that may require sanding, filing, or sealing depending on the application. - HF - High Flow version features a brass tap x threaded barb. - VariHub HF is an individual control hub designed to remotely control various hard-to-reach places , or simply for convenience. - VariHub ports can also be converted into a DripVector using a pinned cap , allowing flow to be controlled. DripLink Fittings – Versions

- v1.0: HF (Brass barb) - v1.1: Lite - v1.2: HD (feature slightly larger barbs.) - It’s recommended to download one of each size and test which fits your tubing best. All hubs use HD ports. DripBender

- A sleeve designed to bend irrigation lines to a desired radius. - More versions are on the way. If you need a specialized design, feel free to ask. DripGrip

- A screw-mount clip that securely holds irrigation lines in place. - Keeps your setup organized and clean. Print it. Make it. Let it grow.

CGW | Tools & accessories for the outdoor workspace.

V1.0 Print Specifications (Tee)

Material : PETG for sun resistance

- Profile : Standard - Layer Height : 0.08 mm - Material used : PETG - Mode : CERTIFIED LUDICROUS - Infill : 15% - Walls : 3 - Bottom Layers : 3 - Top Layers : 5 Printing Details :

- Supports : Not required - Print Time : 11m24s - Filament Usage : 0.02 oz - Estimated Cost : ~$0.02 (based on a $26 PETG spool)

Boost Me 🚀 Boost Your Project! 🚀 If you love what I'm working on, hit the Boost button! Your support helps me continue to create, improve, and share even more exciting designs. Thank you for being part of this journey!

Enjoy your printing journey, and remember—keep your fingers away from the poop chute, she's angry!

"I’ll be sure to keep you updated with any future developments. If you come across any issues or need assistance, don’t hesitate to reach out—I’m here to help!"

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

Current ver.2.0_08/31/2026
