Amiga Gotek 1.54" OLED & Rotary Encoder Housing

Commodore Amiga 500 External 1.54" OLED & Rotary Encoder Housing for Gotek

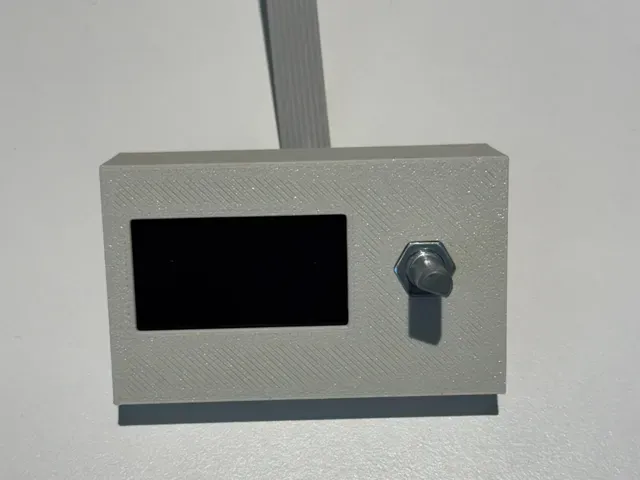

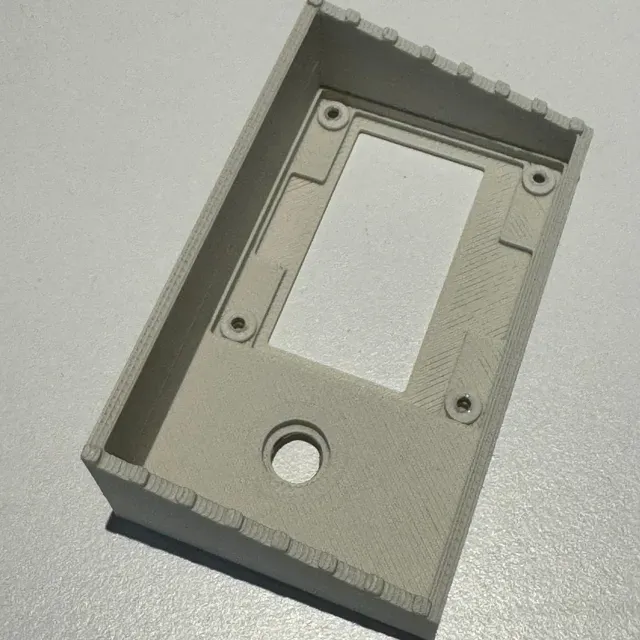

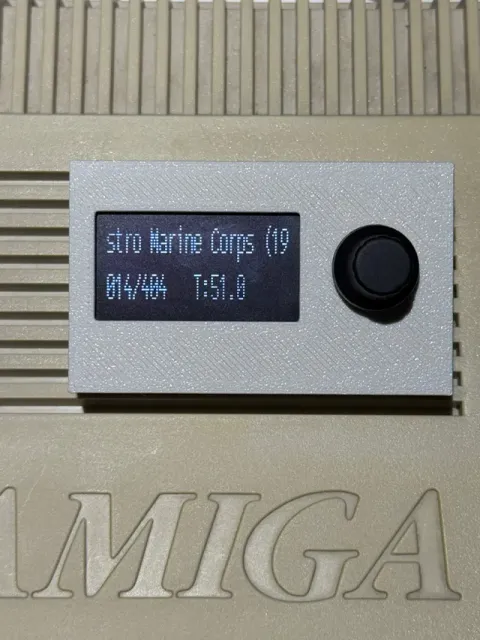

Uses a larger 1.54" OLED which are a lot easier to read. The ones I have are 42.5mm wide & 38mm high. I've added screw mounts for the screen which needs very small 2.5x4mm screws.

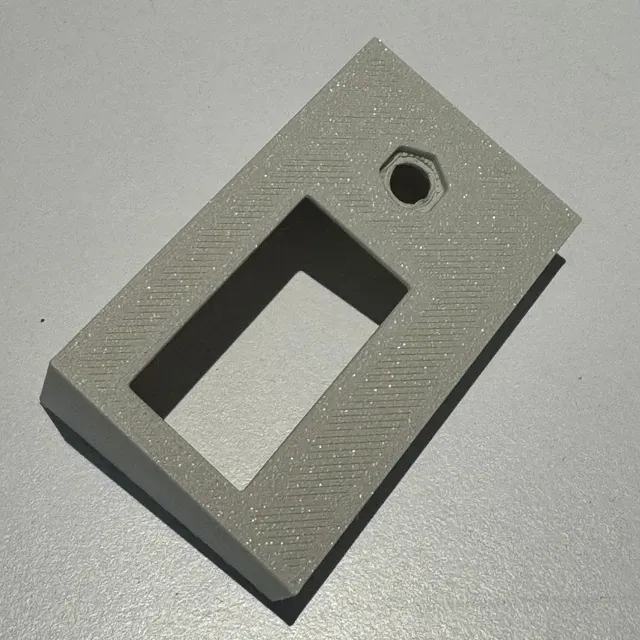

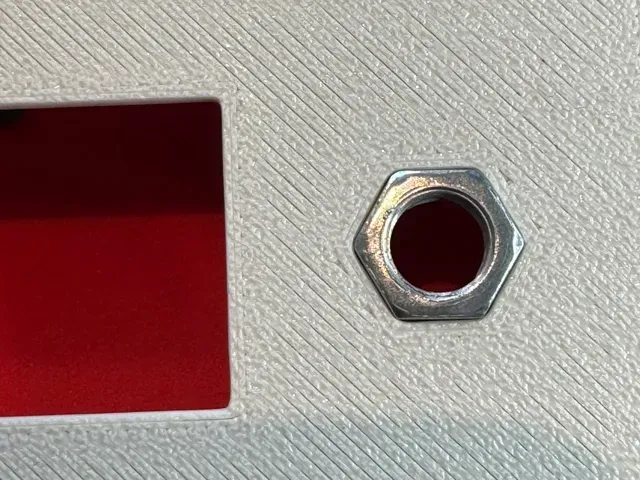

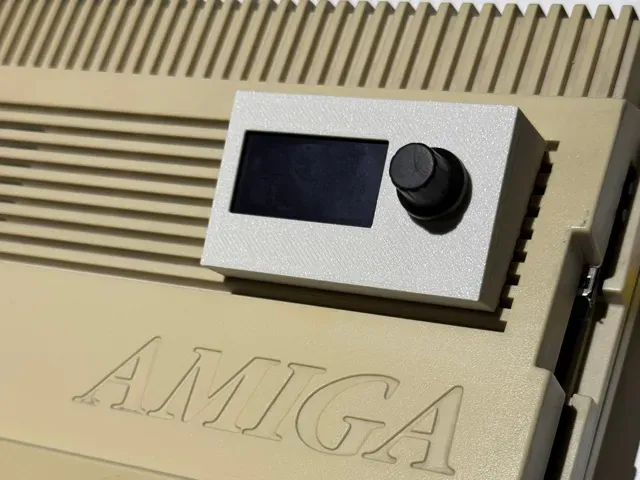

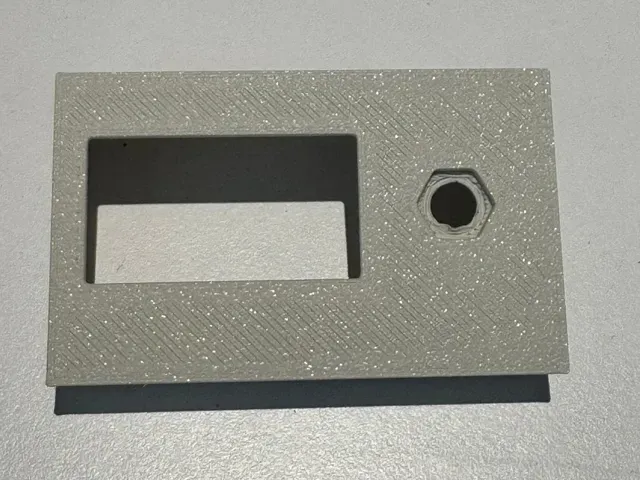

Simple print, recommend supports for the rotary encoder hole. The housing has dimples on the bottom which align with the grills on the Amiga so it fits snug and doesn't move when pressing the encoder.

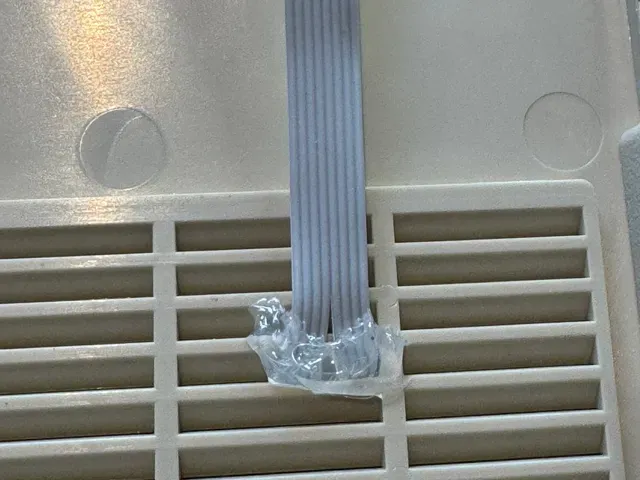

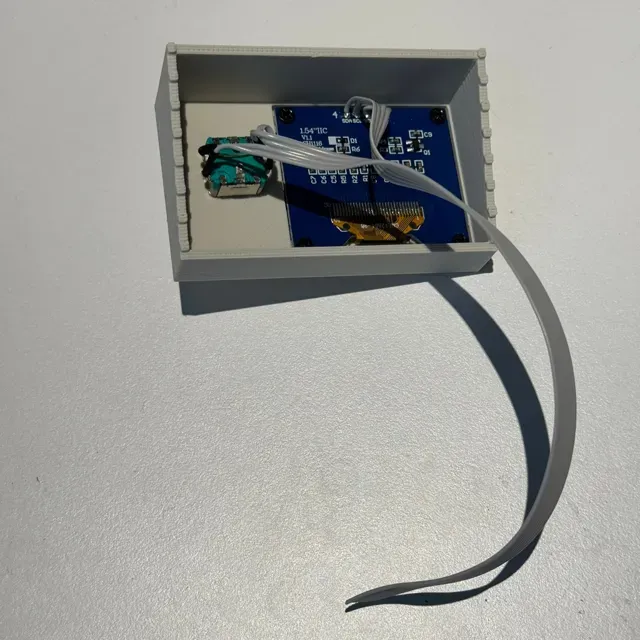

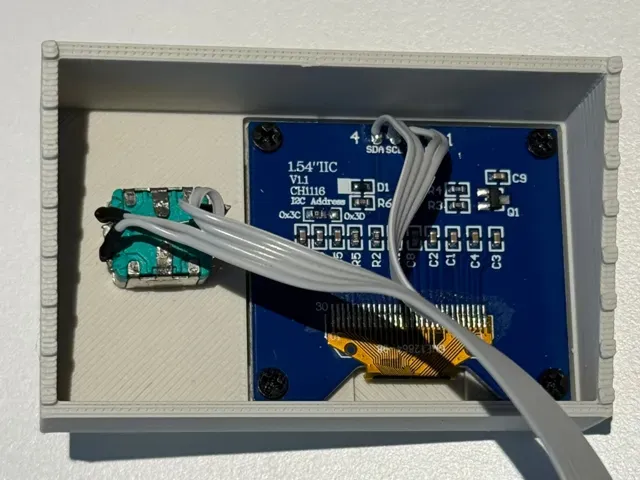

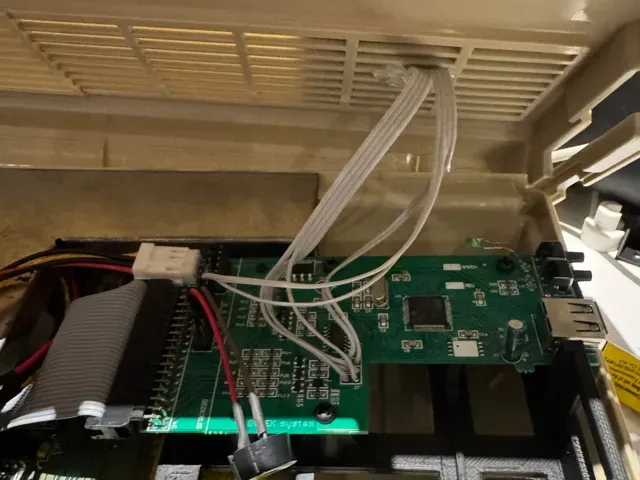

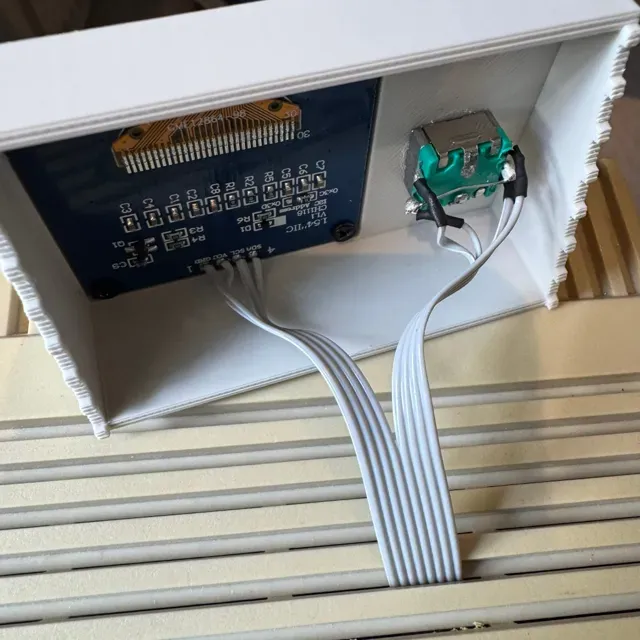

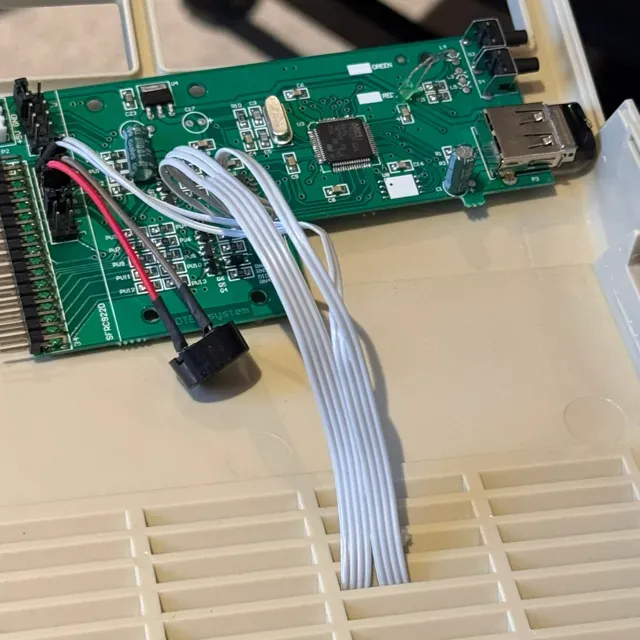

I recommend using ribbon cable to connect the screen and encoder to the Gotek. I've added some photos to show how I wired it all up.
