MeshCore solar repeater pole mount

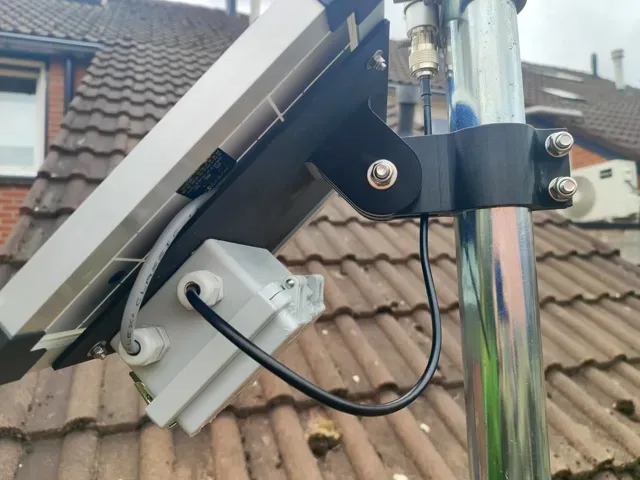

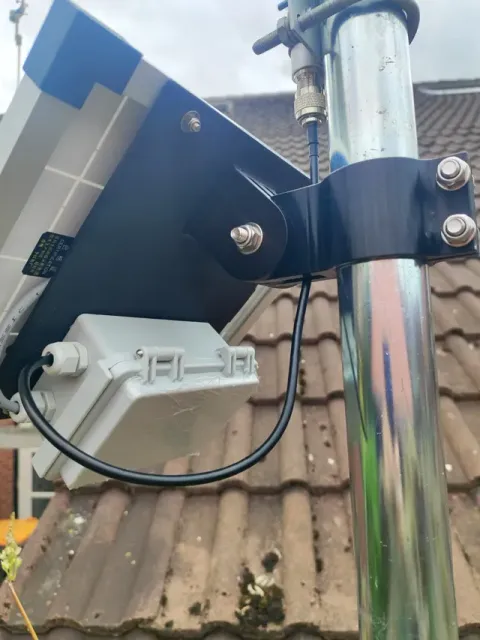

This solar panel pole mount is for an 48mm diameter pole and has the option to mount an junction box beneath it.

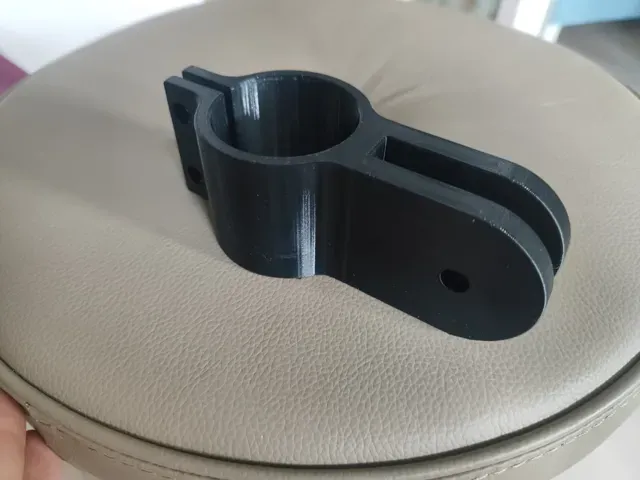

(In the part where you can mount the solar panel and jb to, i made the holes just 2mm, because of issues with printing with supports. I later drilled this holes to 8.5mm.)

The solar panel is an 18V panel and the hole patern of the panel: 145x216

https://www.tinytronics.nl/nl/power/zonne-energie/zonnepanelen/zonnepaneel-18v-560ma-290x240x18mm

The dimensions of the JB are 150x100x70 and the hole patern for the junction box: 58x108

https://nl.aliexpress.com/item/1005007587120013.html?spm=a2g0o.order_list.order_list_main.95.365179d2ZQsX4C&gatewayAdapt=glo2nld

The used hardware:

2x M8x30 hexagon head bold

1x M8x60 hexagon head bolt

3x M8 Lock nut

2x M8 fender washer

4x M8 washer

for fixing the solar panel to the mount:

4x M4x12 hexagon head bolt

4x M4 lock nut

4x M4 fender washer

4x M4 washer
