H2C | H2D | H2S 90 Degree Exhaust UP vent

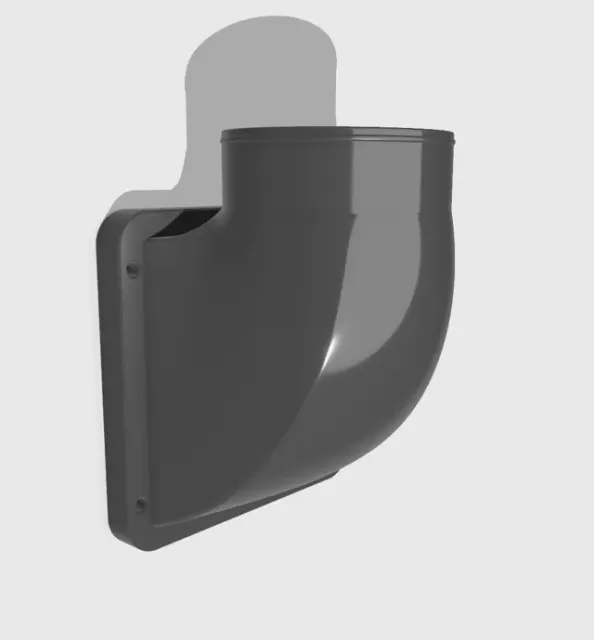

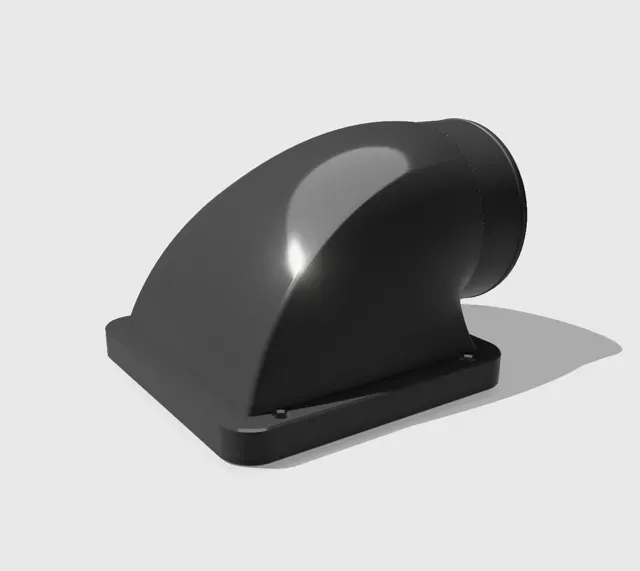

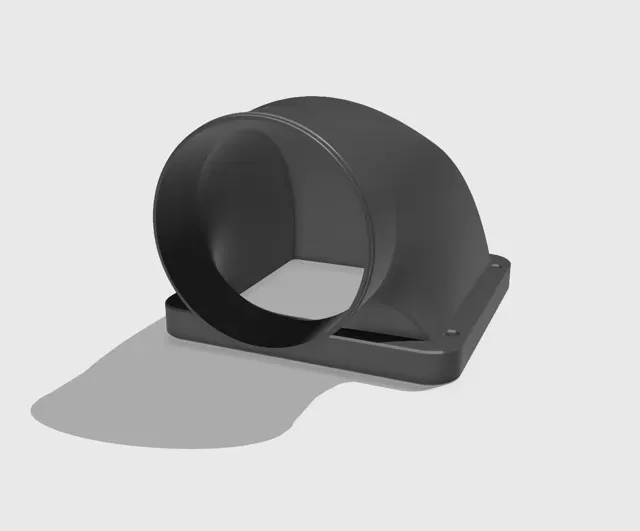

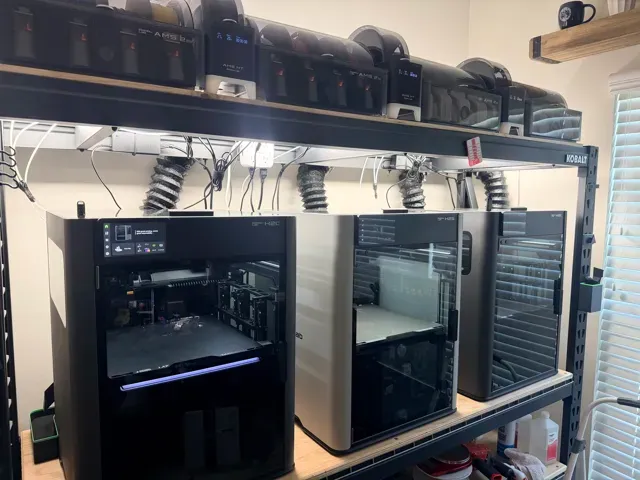

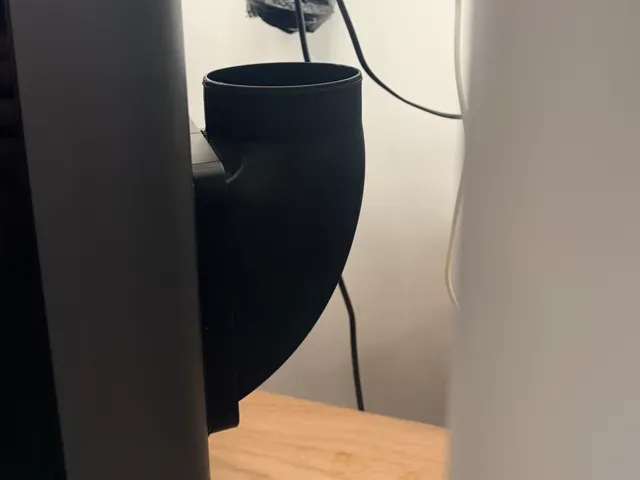

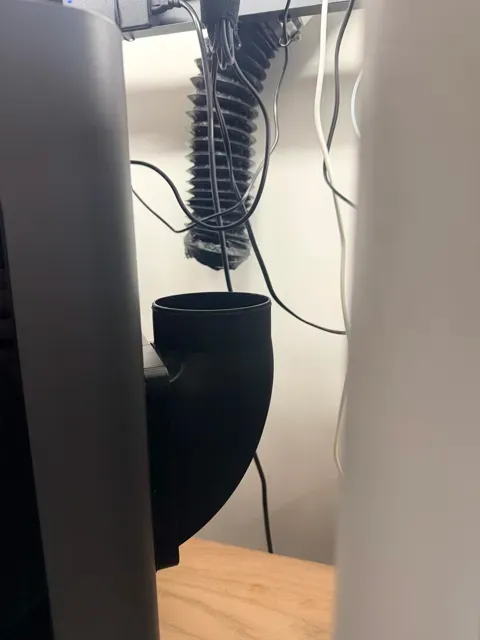

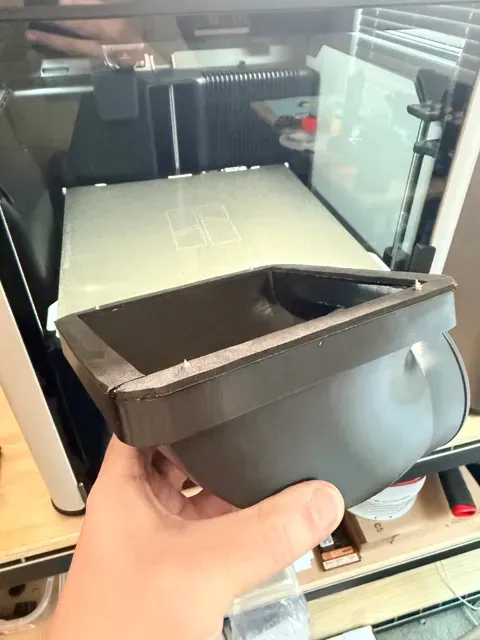

After deciding I needed my vent to run above my printers, I designed this 4" 90 degree exhaust to run up, as I couldn't find one on here. This does not interfere with the automatic louvers. If you're installing several printers on one exhaust, as I did, you will likely need to install an inline exhaust fan to create a small amount of negative pressure so the exhaust from one printer doesn't go into another. Of course, this all goes to a window duct to vent outside.

Boost Me If this helped you and saved you some time, consider boosting me! :)

Parts:

Uses M3x20mm screws, get them here: https://amzn.to/4cBIooj

Window seal foam tape, 1/2  x 1/8, get it here: https://amzn.to/3OAZevC

4" Flexible Duct hose, get it here: https://amzn.to/4sIJV1Z

4" Hose clamps, get it here: https://amzn.to/3QeSkwP

4" Inline exhaust fan to create negative pressure, get it here: https://amzn.to/4coT62L

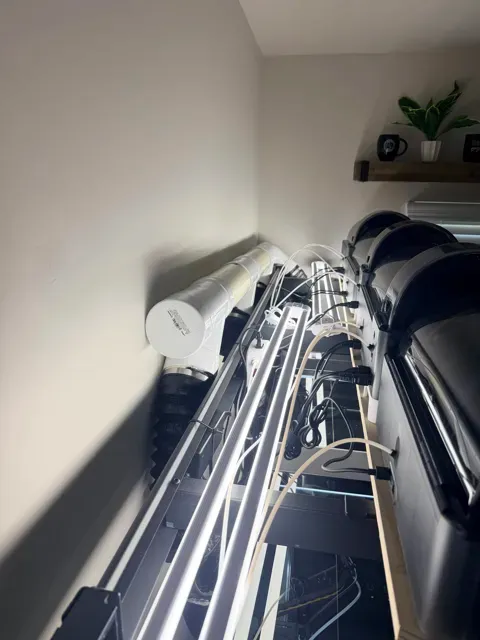

All 4" PVC pipe and fittings were from Lowes. Needed (for 3 printers) 3 Y fittings, 1 90 degree fitting, 1 end cap, and 1 4" thin wall PVC pipe.
