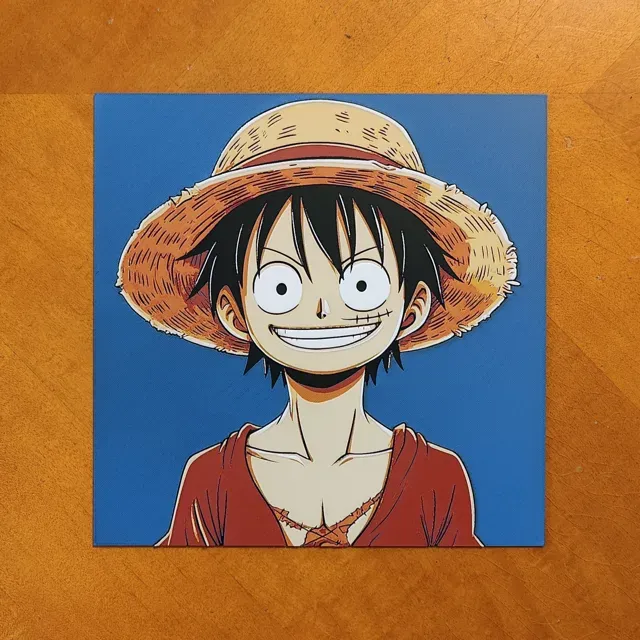

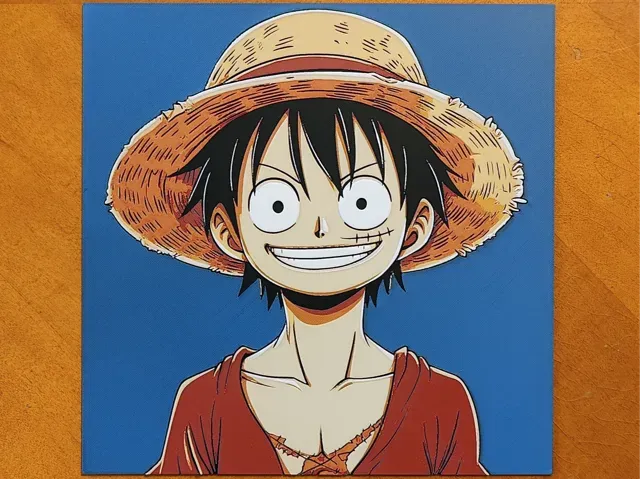

Monkey D. Luffy - One Piece - Hueforge

0.4 Nozzle - 0.08mm layer, 1 walls, 100% infill If you would like to sell my Hueforges a Commercial Licence Subscription is available. Do not sell my prints without it please.

If you do not have an AMS, just delete the filament changes and replace them with pauses instead. Then you can change filament manually when it pauses at the correct layer.

Important:

- I have used a height range modifier in my print profiles for quicker printing. The layer swap numbers in the print profile will not match the ones written below in the print instructions. Do not worry about this. - You CANNOT adjust the Z axis scaling on a Hueforge. It will not come out as intended. You can change the X and Y values to scale the picture up or down though. - To ensure that the print looks the same as mine you must use the same filaments I did (listed below). If you do not, your results will not be exactly the same as shown. (It may still turn out great…..or it may not). - What you see in the slicer will not accurately show the final result. Do not worry about this. Hueforge uses colour blending, but it does not show in the slicer. - Please ensure your filament flow ratios are properly calibrated to get the best results. - You may see a floating regions error. This can be ignored. Printing Instructions

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm .

Remember to select the correct plate type for your printer.

Filaments Used: PLA BambuLab Matte Charcoal Black  Transmission Distance: 0.6 PLA PolyTerra Sapphire Blue Transmission Distance: 0.1 PLA PolyTerra Army Red Transmission Distance: 0.3 PLA BambuLab Basic Yellow Transmission Distance: 6 PLA Sunlu Meta White Transmission Distance: 6.2

Swap Instructions: Start with Black At layer #16 (1.36mm) swap to Sapphire Blue At layer #19 (1.6mm) swap to Army Red At layer #22 (1.84mm) swap to Yellow At layer #25 (2.08mm) swap to White for the rest.
