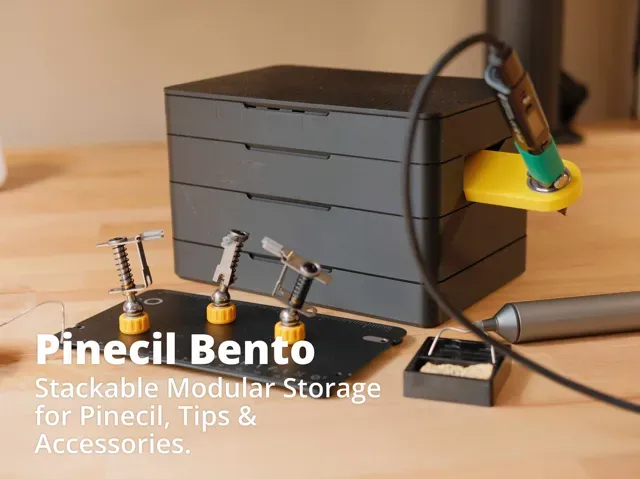

This is an additional Pinecil Bento stack level designed to store the Omnifixo OF-M4.4 third-hand system.

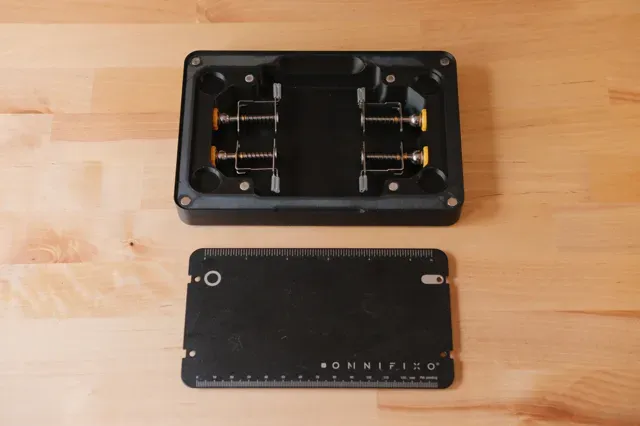

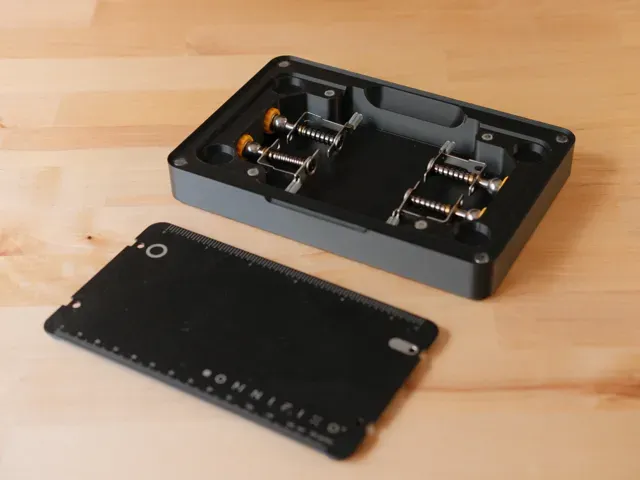

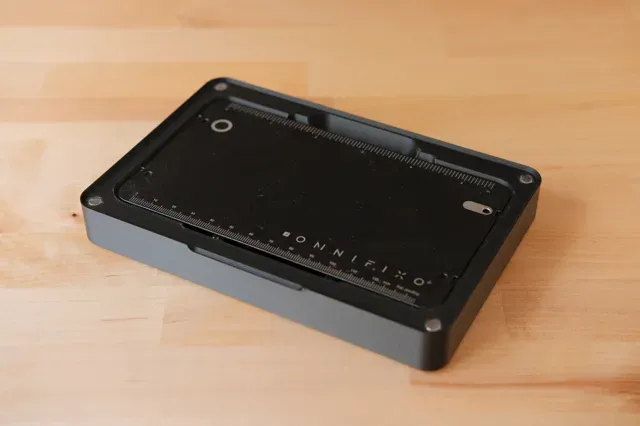

The Omnifixo OF-M4.4 is the large Omnifixo kit. This Bento level is designed to store the 4 magnetic feet and hold the base plate in place, so the Omnifixo parts can travel with the rest of your Pinecil Bento soldering setup.

Original Pinecil Bento model can be found here alongside other levels listed.

What it does

This module adds dedicated storage for the Omnifixo OF-M4.4 magnetic feet and base plate inside the Pinecil Bento system.

The Omnifixo feet and base plate are magnetic, so this level uses the same Pinecil Bento magnet system plus 8 additional internal magnets :

- 4 magnets to help hold the Omnifixo magnetic feet - 4 magnets to help hold the Omnifixo base plate in place In short:

A dedicated stackable Bento level for carrying the Omnifixo OF-M4.4 feet and base plate together with the rest of your Pinecil soldering kit.

Features

- Stackable Pinecil Bento-compatible level - Designed for the Omnifixo OF-M4.4 , the large Omnifixo model - Holds the 4 Omnifixo magnetic feet - Holds the Omnifixo base plate in place - Uses the same 6 mm x 2.6 mm neodymium magnets as the rest of the Pinecil Bento system - Includes 8 additional internal magnets - 4x for retaining the magnetic feet - 4x for retaining the base plate - Keeps the Omnifixo parts stored with the rest of your soldering kit - Useful for portable soldering, electronics repair, and compact workbench setups Compatibility

Designed specifically for:

- Omnifixo OF-M4.4 - The large Omnifixo model - The version with 4 magnetic feet - The matching Omnifixo base plate This model is not tested with other Omnifixo versions or third-party magnetic helping-hand systems.

Please check the photos and dimensions before printing if your Omnifixo kit is a different version.

Hardware

Required hardware

- 8x 6 mm x 2.6 mm neodymium magnets for the Bento stacking interface - 4x additional 6 mm x 2.6 mm neodymium magnets inside the case to help hold the Omnifixo magnetic feet - 4x additional 6 mm x 2.6 mm neodymium magnets inside the case to help hold the Omnifixo base plate - Superglue for securing the magnets Total:

- 16x 6 mm x 2.6 mm neodymium magnets Magnet polarity disclaimer

Before gluing any magnets, check the polarity carefully.

For the Pinecil Bento stacking system:

- Case bottoms: south-facing side up - Case tops: north-facing side up - Lid: treated as a bottom, so install magnets with the south-facing side up In other words:

Bottom-facing parts use south up. Top-facing parts use north up. The lid counts as a bottom.

The internal magnets used to hold the Omnifixo parts should be tested with the actual Omnifixo feet and base plate before gluing.

Test everything before applying glue. Incorrect magnet polarity may prevent the Bento layers from stacking correctly, may repel the Omnifixo feet, or may fail to hold the base plate correctly.

Recommended material

PLA works well for normal storage and desk use.

PETG should also work well , especially if the case will be kept in a hot car, workshop, or tool bag.

As with the rest of the Pinecil Bento system, do not store hot tools inside the case. Let the Pinecil and accessories cool down before closing or packing the stack.

Print notes

This level requires supports .

Supports are needed to print the perpendicular sockets for the Omnifixo feet cleanly.

Recommended support settings:

- Use supports touching the build plate only , unless your slicer indicates otherwise - Check the perpendicular foot sockets after printing - Remove supports carefully around the sockets so the Omnifixo feet fit correctly - Test-fit the Omnifixo feet before final assembly - Check all magnet holes before gluing magnets in place The print orientation is already set in the provided profile.

Suggested use

Use this level if you carry the Omnifixo OF-M4.4 together with your Pinecil setup and want the magnetic feet and base plate stored as part of the same compact Bento stack.

This is useful for:

- Portable soldering kits - Electronics repair setups - Desk organization - Keeping Omnifixo feet from getting lost - Carrying a more complete compact soldering workstation Notes

This model is only for the Pinecil Bento Omnifixo holder level .

The Omnifixo OF-M4.4 itself is not included.
