10mm Cabinet Door Gap Setting Jig Alignment Tool

Boost Me If you like my model, give it a boost and download it for free. It costs you nothing and motivates me to keep going!

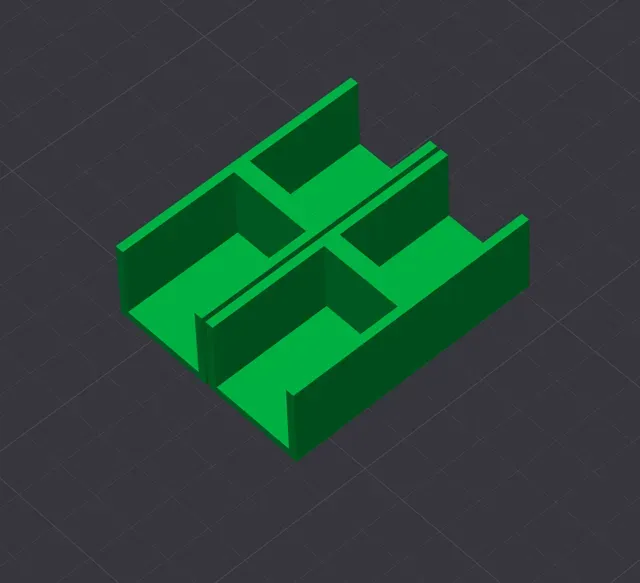

This 3D printable furniture alignment jig is designed to help you achieve perfectly aligned cabinet doors and drawer fronts with clean, consistent gaps every time. It simplifies the installation process and eliminates uneven spacing, making furniture assembly faster, easier, and far more precise.

The tool is ideal for kitchen cabinets, wardrobes, bathroom furniture, workshop cabinets, and custom furniture projects. Whether you are a professional carpenter or a DIY enthusiast, this jig helps create a clean and professional finish without constant measuring and adjustments.

The set is compatible with furniture fronts in the following thicknesses:

- 10 mm - 12 mm - 14 mm - 16 mm - 18 mm - 20 mm Other sizes are available in a separate project.

Features:

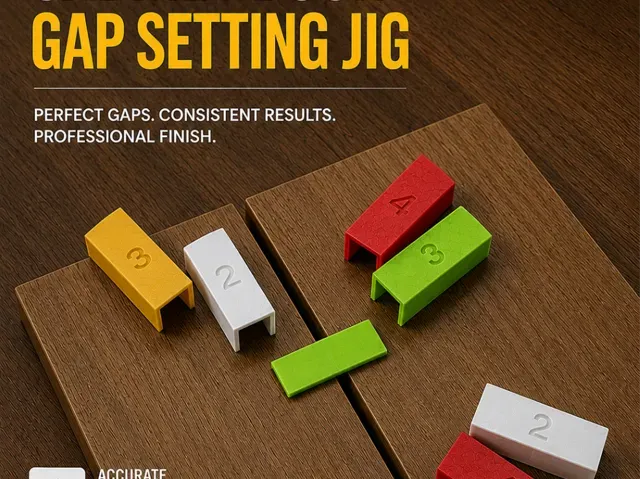

- Precise and repeatable front alignment - Perfect spacing between drawer fronts and cabinet doors - Quick and easy installation - Designed for professional and hobby use - Durable and reusable construction - Optimized for 3D printing - Saves time during furniture assembly - Helps eliminate alignment errors Simply place the jig between the fronts, position the panels, and secure them in place. The carefully designed shape keeps the spacing stable during installation and ensures perfectly even lines across the entire furniture set.

This project is perfect for makers, carpenters, cabinet installers, and woodworking enthusiasts looking for a reliable and easy-to-print workshop tool.
