Ultimate Universal Pipe/Rail Rosette Generator

Update: Added option to select RECTANGULAR profile for rails inside as per comment request.

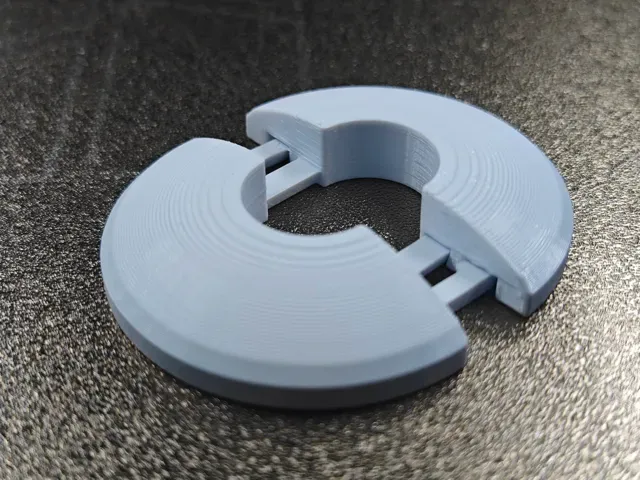

This is a fully universal, parametric pipe rosette cover designed to seamlessly hide unsightly pipe cutouts in walls or floors. The model is split into two separate interlocking halves , meaning you can print each half in a different color or material to match your decor or create striking two-tone designs.

🛠️ Endless Customization

Using the built-in configurator, the appearance and functionality of this rosette can be heavily modified to fit almost any scenario:

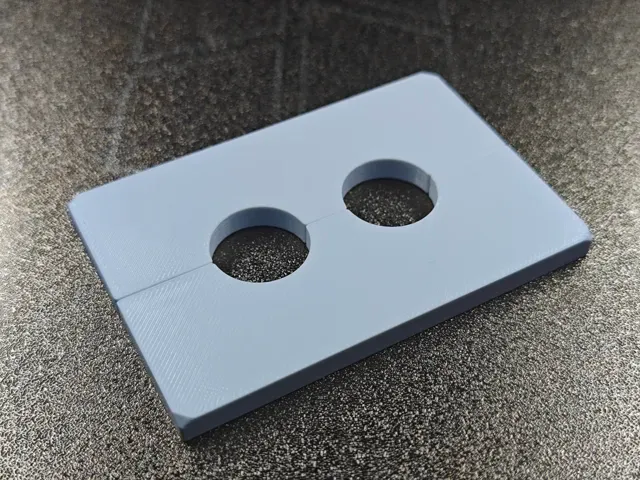

- Outer Shapes: Choose from Round, Square, Hexagonal or Rectangular. - Pipe Layouts: Easily toggle between single and double pipe configurations. - Surface Profiles: Select a Flat, Convex (bulging), or Concave (bowing) curvature. - Dimensions: Precisely adjust the inner pipe diameter, overall outer diameter, total vertical height, and chamfer size. 🔒 Interlocking Snap Mechanism

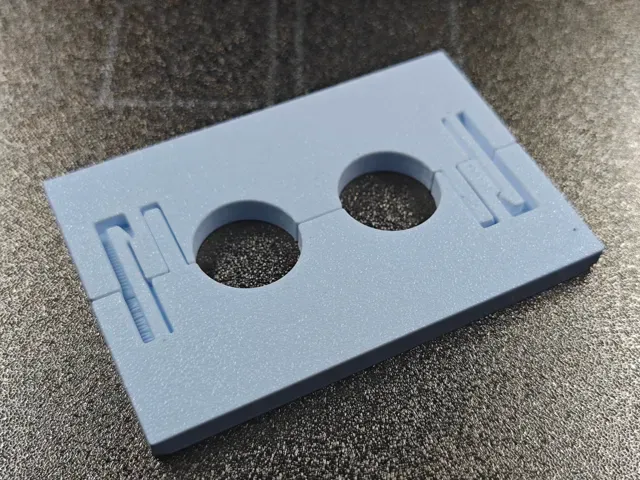

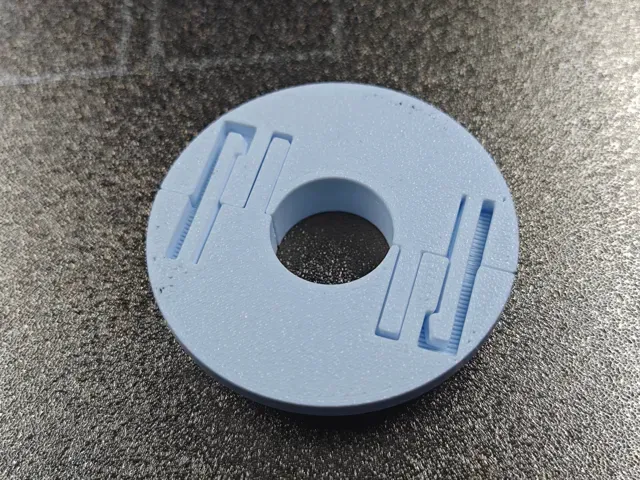

The two halves feature a robust dovetail guide and flexible hook shaft. They snap together perfectly and will not shift once locked.

- Important Dimension Limit: The width of the rosette (the distance from the inner pipe hole to the outer edge) must be at least 2 cm to properly fit the internal locking mechanism. - Adjustable Fit: If you find the parts difficult to snap together due to your printer's specific quality or material shrinkage, simply increase the tolerance values within the configurator for a smoother fit. Boost Me It was quite some work to create this generator for you. So if you fonr it useful, i would be very happy to see a boost from you!
