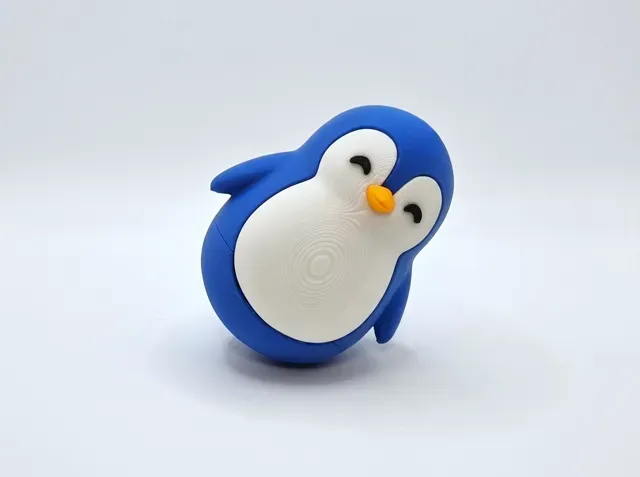

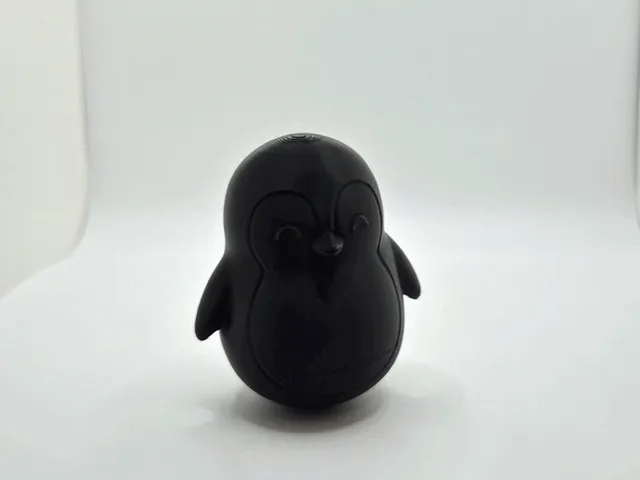

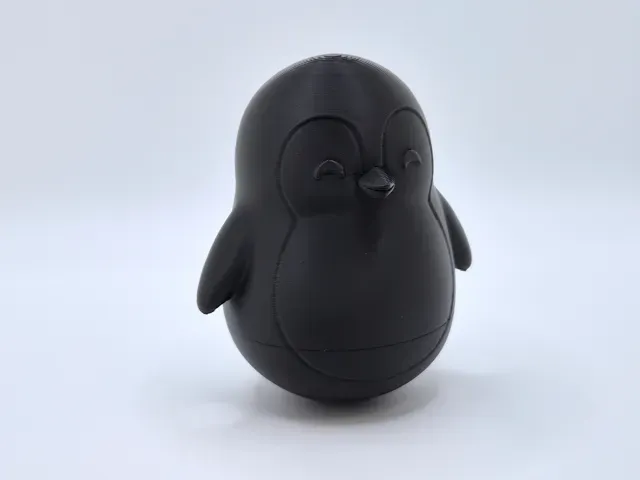

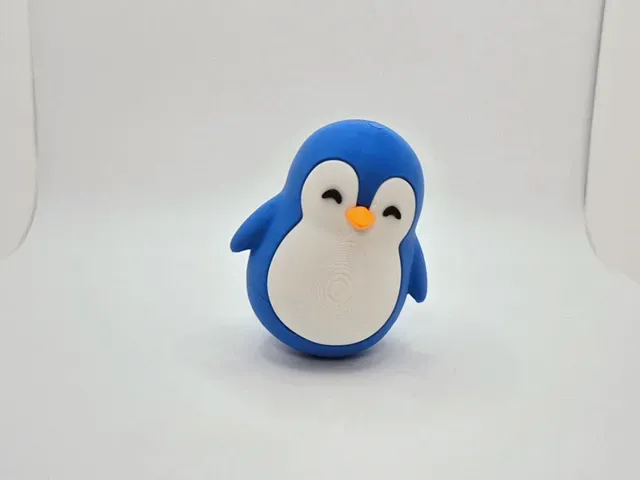

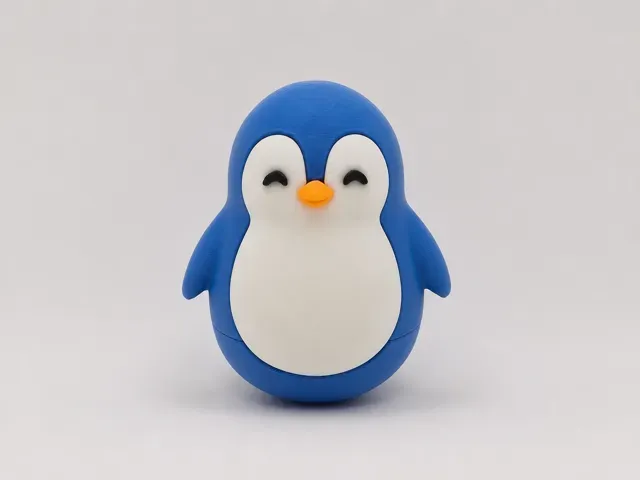

Cute Wobbly Penguin – NO AMS

Add a splash of wiggles and giggles to your day with this charming Penguin Roly-Poly Toy!

Designed as a self-righting wobble toy, this penguin tumbles, rocks, and spins for 30+ seconds before standing right back up again. This innovative toy combines simple physics with playful interaction, creating a fun hands-on experience for all ages while also encouraging curiosity and exploration!

🆕 UPDATES

- 01.08.2026: Added a print profile for the belly that minimizes layer lines. This version prints the belly at 45° for a cleaner look. - 22.07.2026: Added a version of the multipart design with a rounded beak for additional child safety. - 30.06.2026: Updated tolerances and balance thanks to cummunity feedback. - 20.06.2026: Added a ONE PLATE version of the multipart profile. It is compatible with all printers, including A1 mini. - 13.06.2026: Eliminated all negative parts by modelling the holes directly. This ensures much better compatibility across different slicers. - 26.05.2026: Added an AMS version of the face/belly panel as a new print profile. This reduces assembly time and eliminates any small parts. 🧠 The Educational Aspect: Learning Through Play

This toy introduces core concepts through interactive play:

- Cause & Effect: Early learners discover that their physical actions (a tap or push) create immediate reactions. - Motor Skills: Following the 30+ second wobble improves visual tracking, while reaching for it refines hand-eye coordination. - Introduction to Physics: The self-righting action naturally introduces older kids to center of gravity, balance, and momentum, sparking curiosity about how things work. ⚙️ Technical Features & Design

Built to be an elegant, easy-to-print project, this model maximizes performance without relying on external parts:

- Enduring Motion: Precisely calibrated geometry ensures a single push creates a sustained wobble lasting over 30 seconds. - Zero Hardware Required: Unlike traditional designs that need metal bearings or screws, this relies entirely on its 3D-printed structure and solid infill to self-right. - NO AMS Needed: A smart multipart design lets you print different colors on separate plates for a multi-color look. A rapid single-color version is also included. 🛠️ Step-by-Step Assembly Guide

The assembly process is straightforward and consists of 6 simple steps . For the best results, having some CA glue (superglue) on hand is recommended.

Step 1: Clean the Prints

Carefully remove all support material from the printed parts. Ensure all mating surfaces are clean and smooth for a flush fit.

Step 2: Install the Base Connectors

Insert all four alignment connectors into the base. Because this model is subject to constant kinetic movement, it is highly recommended to apply a small amount of CA glue in a cross-shape between the connectors to lock them securely.

Step 3: Secure the Body

Align both components  of the body and press the pieces firmly together, holding them in place until the glue has fully set.

Step 4: Assemble the Face Details

Insert the two eyes into the designated slots on the white belly piece . This may require some force, as they are designed to stay in place without using glue.

Step 5: Fit the Belly Panel

Press the completed belly and eye assembly directly into the front cutout of the penguin's body. This part is designed for a precise friction-fit and does not require any extra glue .

Step 6: Attach the Beak

For the final step, add a small drop of glue to the back of the penguin's beak and push it into the face cutout.
