Magnetic Takeaway Cup Holder (all takeaway sizes)
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- PRIVATE-USE
- Только для личного использования: печатать для себя, без продажи и распространения.
- Форматы
- 3MFSTL
- 18 Лайки
- 10 Загрузки
- 5 Напечатали
- 27 В подборках
- 4 Бусты
- 6 Комментарии
- 0 Просмотры
Описание

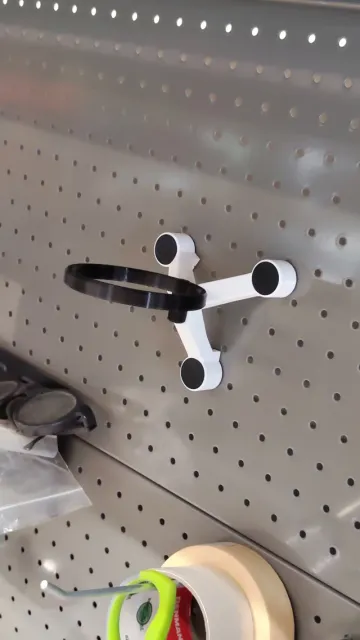

Modular magnetic tripod with a removable cup holder adapter designed for common tapered/conical takeaway coffee cups (paper & plastic).

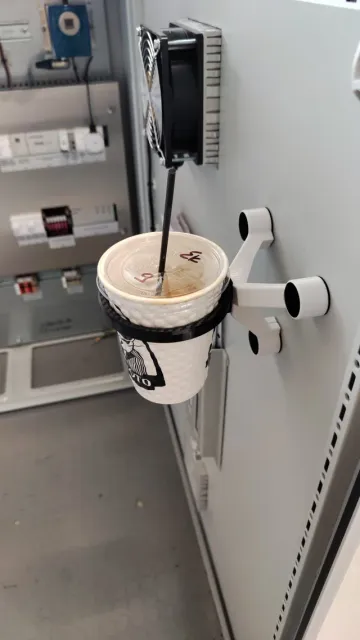

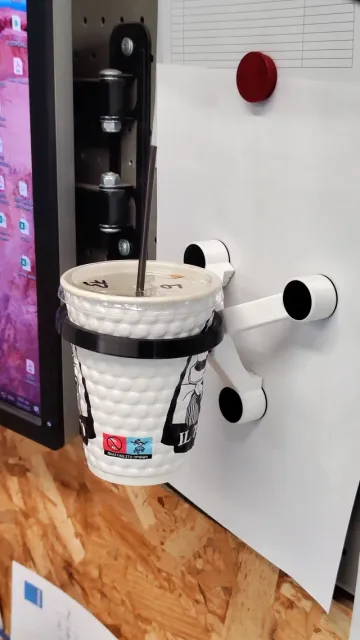

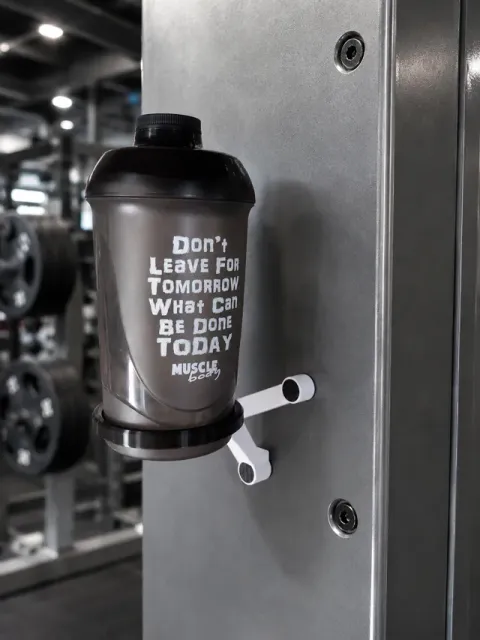

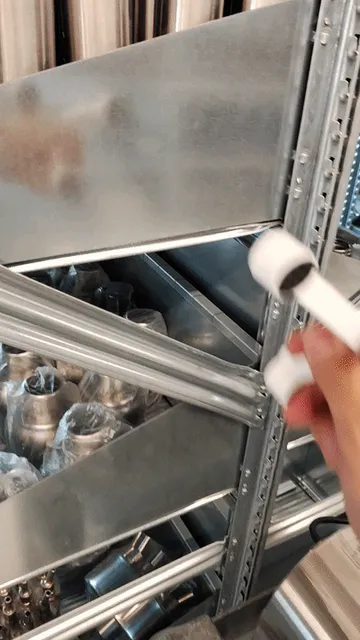

Can be mounted on virtually any ferromagnetic metal surface including cars, toolboxes, shelves, machinery, gym equipment, refrigerators, workbenches, and more. This version uses magnet enclosure caps instead of pause-insert printing, making it fully compatible with hardened steel nozzles and more reliable to print.
Boost Me
Features :

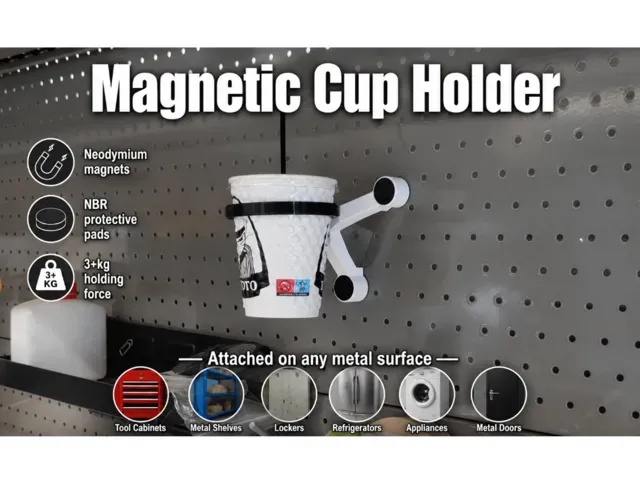

- Magnetic tripod base - Cup holder adapter available in 2 sizes - Internal chamfer optimized for tapered takeaway cups - Anti-slip NBR friction discs Attachment System :
- 3× D15×15mm neodymium magnets (N35 recommended) ~3kg+ vertical holding force (surface dependent) - 3× D20×1mm NBR protective/friction discs - Caps and NBR discs require glue after assembly.
- M4 × 16 mm threaded screw required for attaching cup holder (or any other of my compatible accessories) to the tripod. Magnetoc tripod V2 is compatible with other accessories of my previous models including: Action camera mounts Fishing rod holder
Magnetic holding force depends on surface material, paint thickness, and orientation. Always test before use in vehicles or moving environments.
Руководства и профили печати
Профили печати и шаги

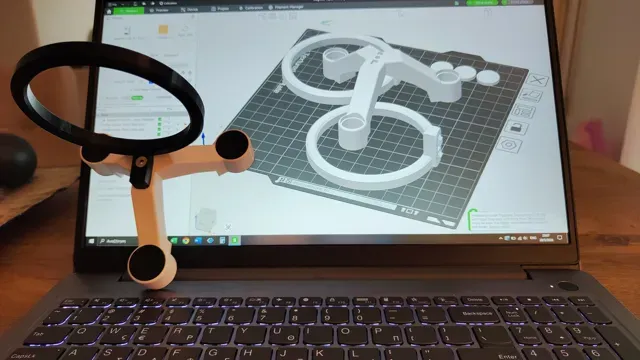

0.16mm layer, 3 walls, 15% infill 0.16 layer is essential for printing the tripod perfectly without support
0.16mm layer, 3 walls, 15% infill 0.16 layer is essential for printing the tripod perfectly without support
