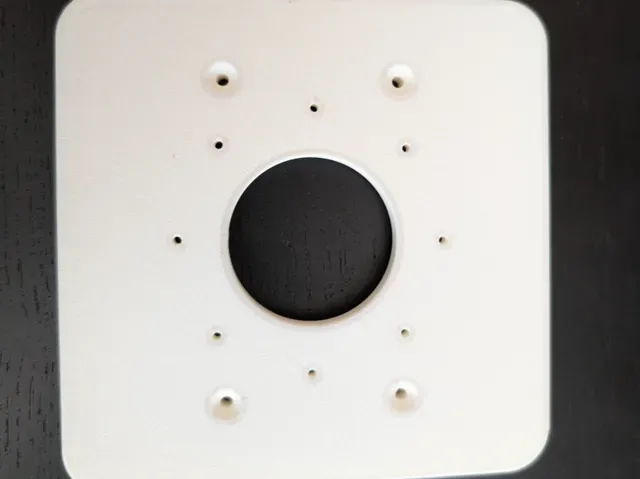

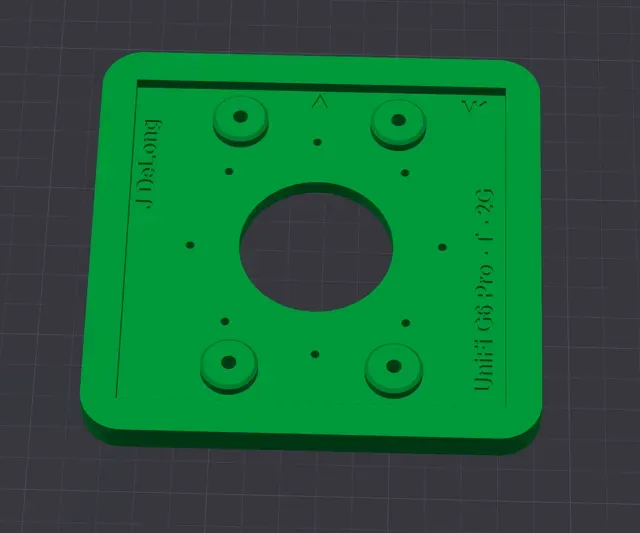

UniFi G6 Pro Camera Double Gang Adapter Plate

Ubiquiti UniFi Camera Double Gang Junction Box Adapter Plate - Compatible with G6 Pro Turret (UVC-G6-Pro-Turret), G6 Edge Turret (UVC-G6-Edge-Turret), and AI Turret (UVC-AI-Turret) - Indoor & Outdoor Use

This adapter plate mounts directly to a standard double gang electrical box and provides a clean, professional mounting surface for your Ubiquiti UniFi turret camera. Replaces the need for a separate surface mount or ceiling mount bracket when running wiring through an in-wall electrical box.

Compatibility:

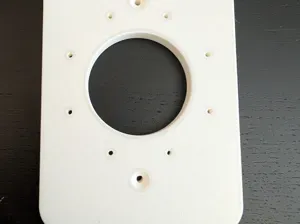

- Ubiquiti UniFi G6 Pro Turret (UVC-G6-Pro-Turret) - Ubiquiti UniFi G6 Edge Turret (UVC-G6-Edge-Turret) - Ubiquiti UniFi AI Turret (UVC-AI-Turret) Note: This plate uses a different camera bolt circle than the G6 and G5 Ultra Turret models. For those cameras see my G5 Ultra - G6 Double Gang listing.

Installation:

- Mount plate to junction box using standard electrical box screws - Mount camera to plate using the provided bracket and M3 screws that come with the camera - Feed camera cable through the center hole Print Settings:

- Material: PETG (indoor) or ASA/UV resistant material (outdoor) - Infill: 20% Gyroid - Walls: 3 - Thickness: 10mm standard — can scale Z-axis to 8mm if preferred Prototype tested and verified for fit before publishing.

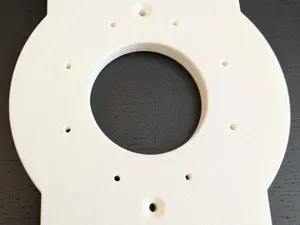

Also available for G6 Pro Turret, G6 Edge Turret, and AI Turret — check my other models. Single gang variants also available. Comment below if you need a specific camera or box type.
