Plant Support System - Modular & Parametric

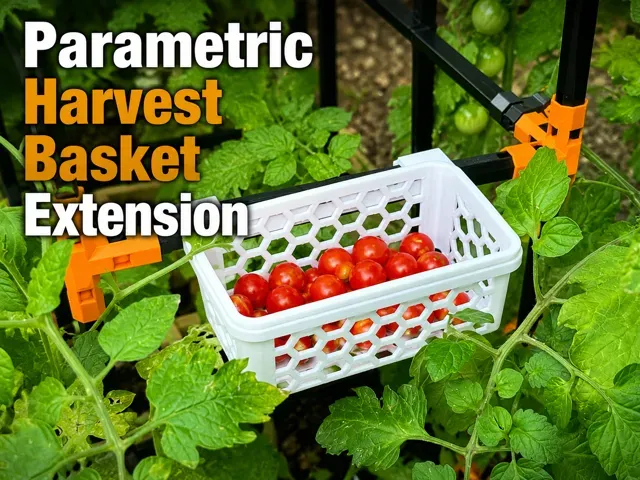

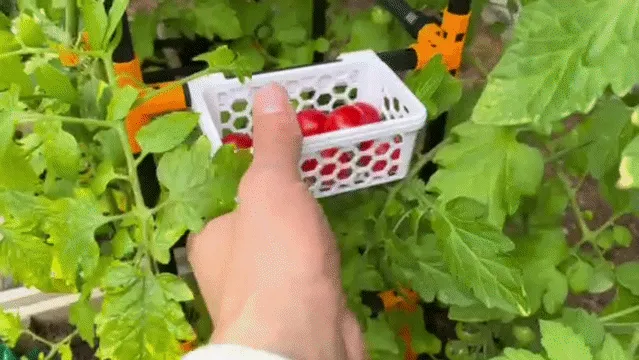

🆕 New Harvest Basket Extension Available!

A customizable harvest basket can now be attached directly to the Plant Support System.

👉 Download it here:

https://makerworld.com/fr/models/2905432-parametric-harvest-basket-extension#profileId-3248577

🆕 New Plant Label Holder Extension Available!

Never lose track of your plants again! This simple extension lets you attach plant tags and labels directly to your Plant Support System.

👉 Download it here:

https://makerworld.com/fr/models/2935739-plant-label-holder-for-plant-support-system#profileId-3287167

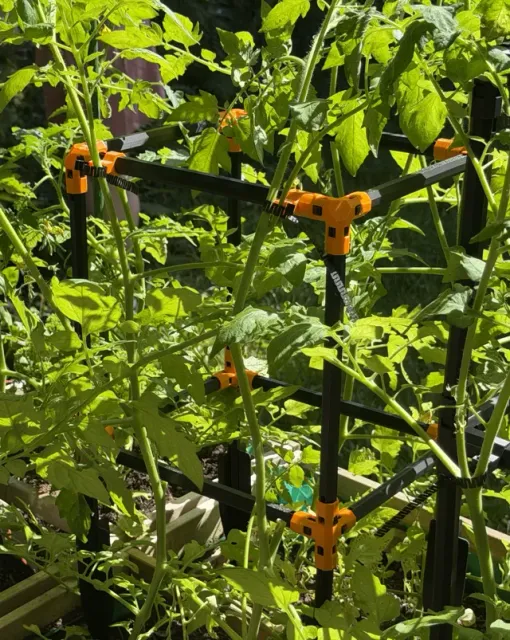

🌿 Modular Plant Support System

A lightweight, modular and reusable plant support system designed specifically for efficient FDM 3D printing.

Build custom support structures for:

- 🍅 Tomatoes - 🥒 Cucumbers - 🫘 Beans - 🌱 Climbing plants - 🏡 Greenhouses - 🪴 Raised beds - 🌿 Vertical growing systems - And many other garden applications 🎯 Design Goals

This project was designed around:

- ⚡ Fast printing - ♻️ Low material usage - 🔧 Simple assembly - 📦 Easy storage - 🧩 Modular expansion - 🌱 Reusability season after season The goal was not to create the strongest possible garden structure.

Instead, the focus was on creating a system that is:

- Lightweight - Fast to print - Material efficient - Easy to assemble - Modular and expandable - Strong enough for everyday garden use - Easy to disassemble and store compactly A future extension project may focus specifically on ultra-compact off-season storage solutions.

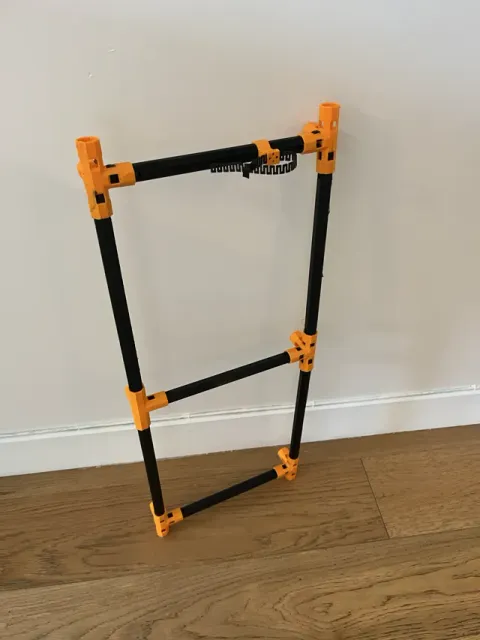

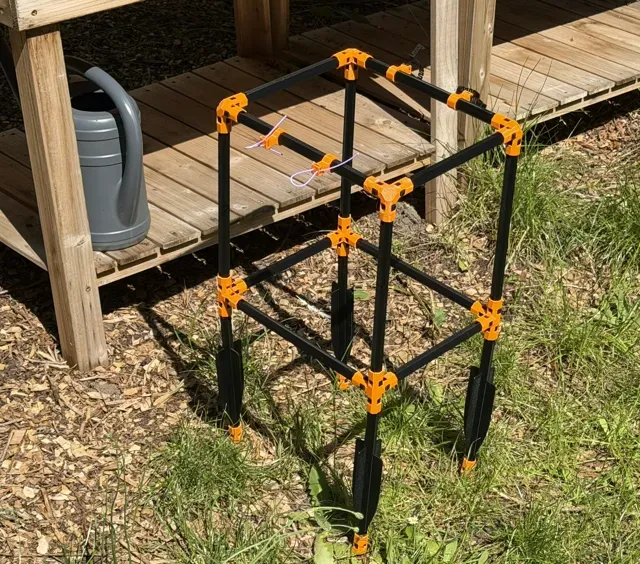

🧩 Modular System

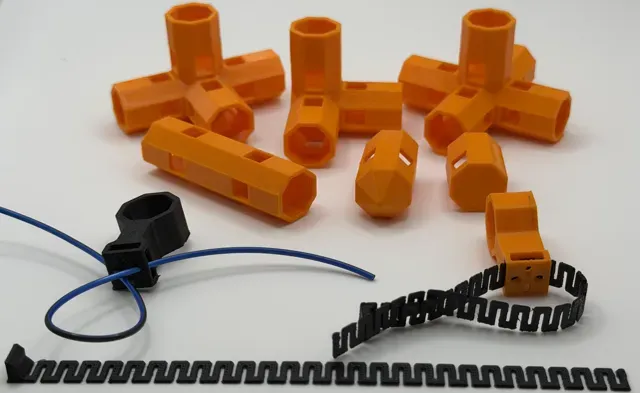

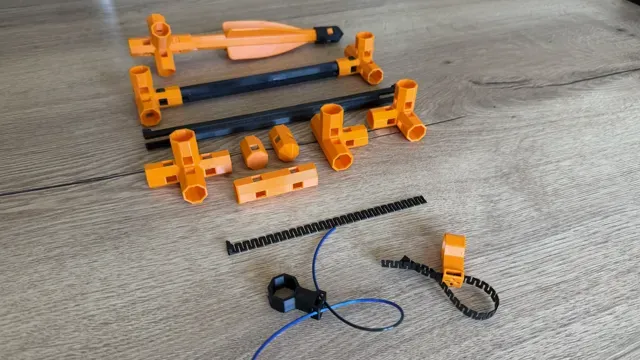

The entire system is built around interchangeable connectors and octagonal rods.

You can easily create:

- Single plant supports - Multi-plant structures - Vertical extensions - Horizontal extensions - Greenhouse frameworks - Custom garden layouts Expand your structure whenever your plants need more support.

🌿 Special Plant Components

Beyond the standard connectors, the project includes several components specifically designed for plant support.

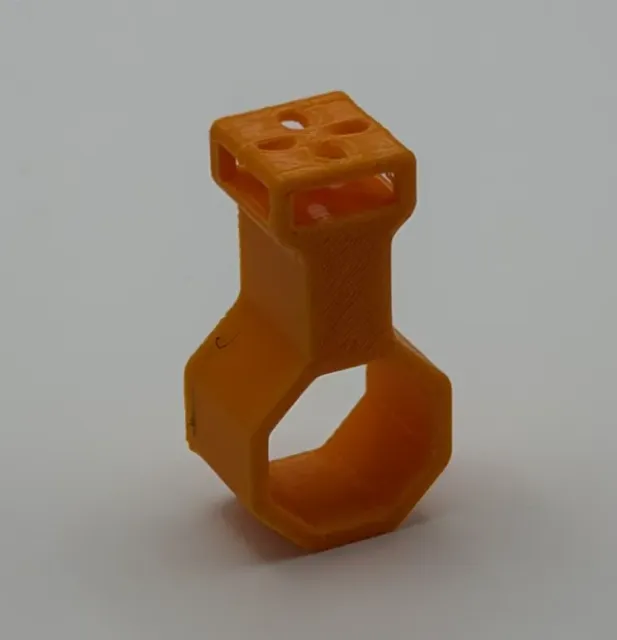

🌱 Plant Connector

The Plant Connector can be used in two different ways.

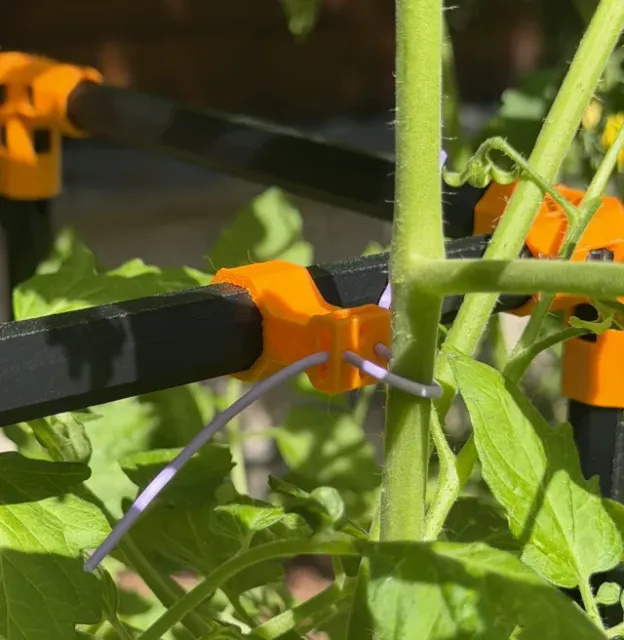

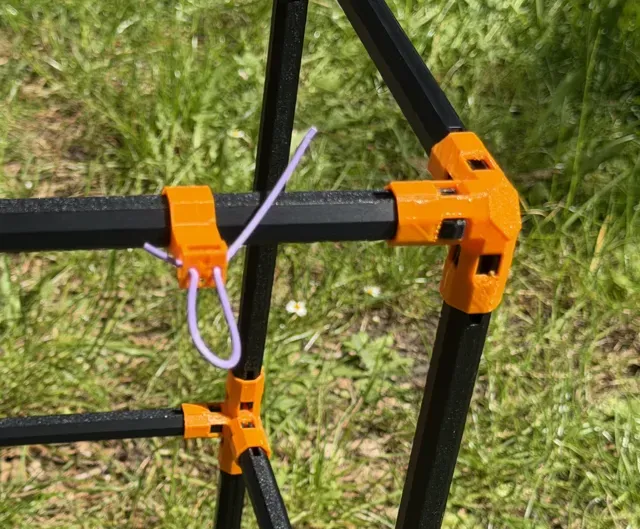

Option 1 — Flexible Filament Loop

A simple piece of filament can be inserted through the connector to create a flexible support loop.

- Benefits:

- Gentle on stems - Extremely low cost - Easily adjustable - Reusable Simply choose the filament length that best fits your plant.

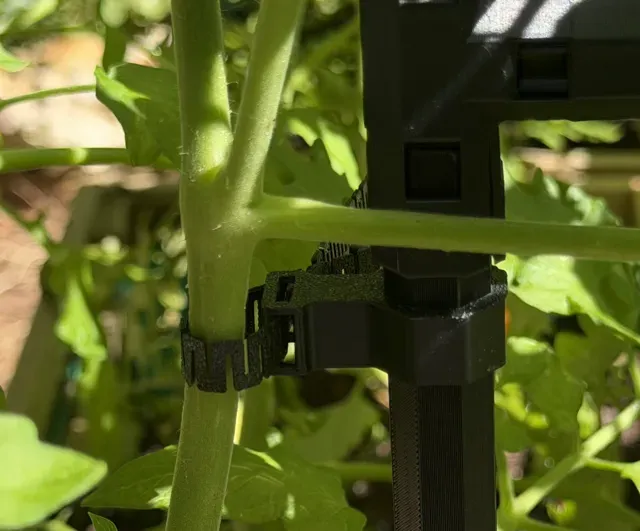

Option 2 — Printable Locking Strap

The connector can also be used with the included printable locking strap.

Benefits:

- Fully 3D printable solution - Adjustable diameter - Secure locking mechanism - No additional materials required This allows the support loop to be locked at the desired size while remaining easy to reposition later.

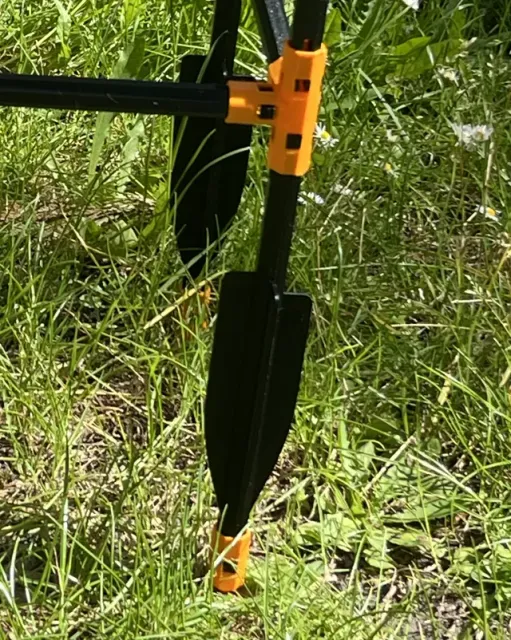

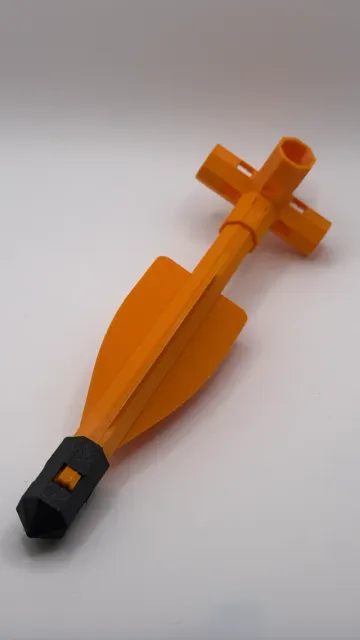

⚓ Ground Anchor Rods

The Ground Anchor Rods are designed to increase stability when the structure is installed directly into soil.

Integrated stabilizing fins help:

- Reduce movement in loose soil - Increase rigidity of larger structures - Better support mature and heavier plants These anchors become especially useful for taller or expanded configurations.

🛠️ Designed Specifically for Efficient 3D Printing

The octagonal rod design was primarily chosen to:

- Improve connector fit - Prevent unwanted rotation - Enable flat printing orientations - Reduce support requirements - Improve print efficiency - Simplify plant clip attachment Most parts can be printed quickly with minimal waste and little or no support material.

⚠️ Important Printing Orientation
