Exhaust Duct Adaptor for Locked Window (75mm)

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 1 279 Лайки
  • 747 Загрузки
  • 289 Напечатали
  • 4 291 В подборках
  • 17 Бусты
  • 38 Комментарии
  • 0 Просмотры

Автор:AxiomLab

Опубликована

Скачать на MakerWorld

Описание

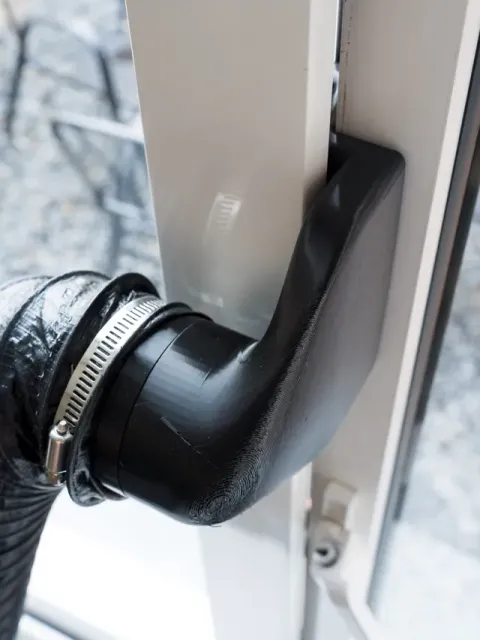

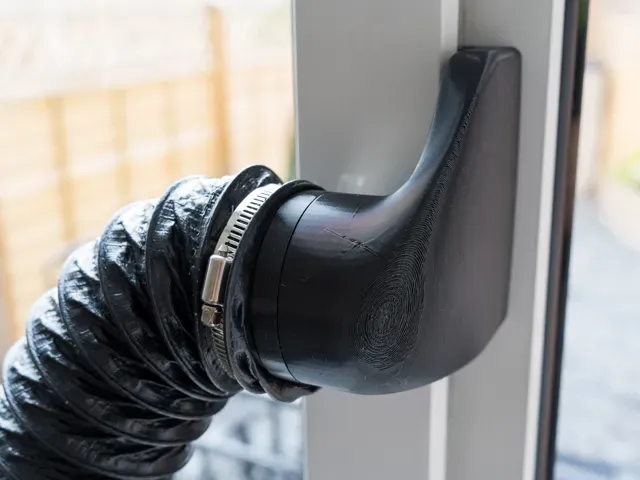

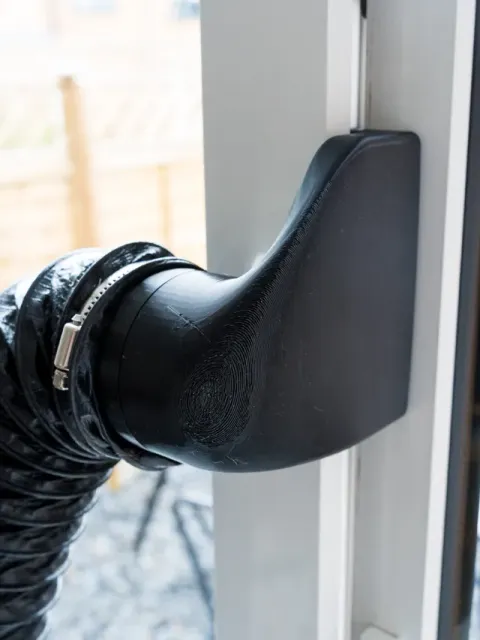

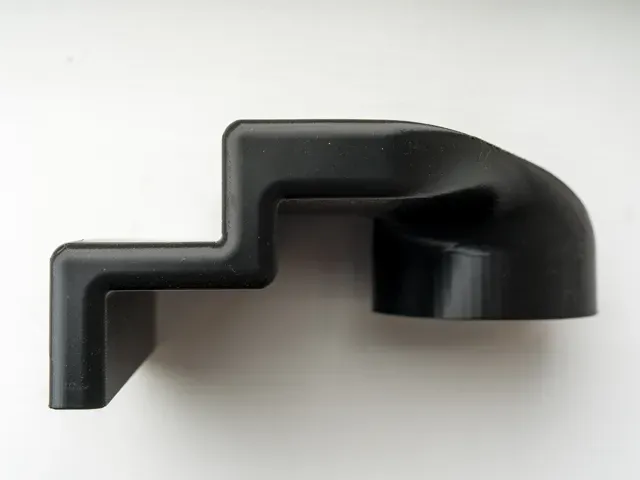

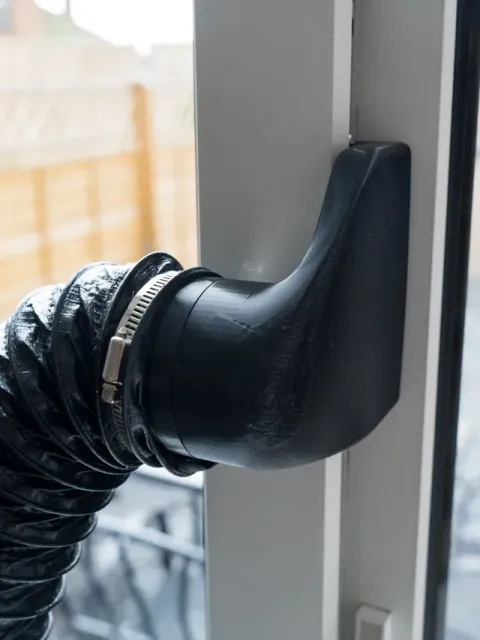

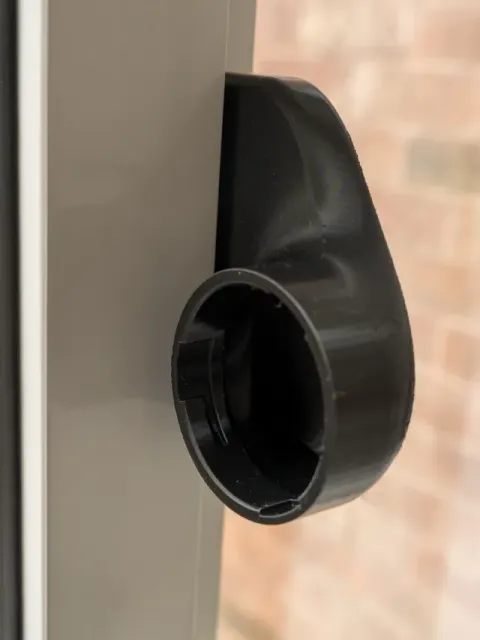

Exhaust duct adaptor for 75mm ducting (to suit the P2S exhaust kit). Compatible with modern PVC windows whilst allowing them to be locked slightly open.

Prints for left and right handed versions available.

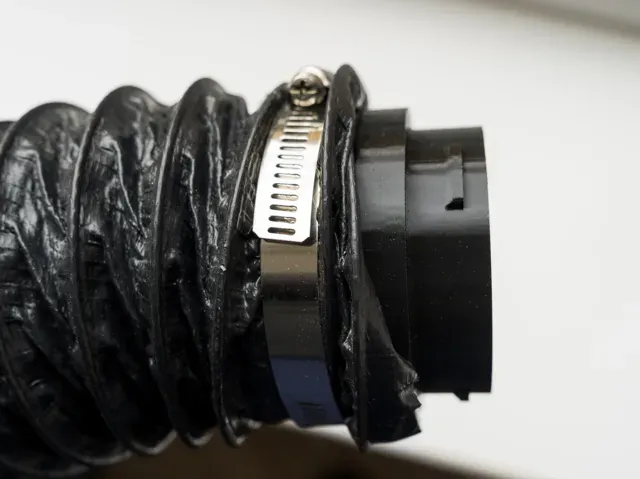

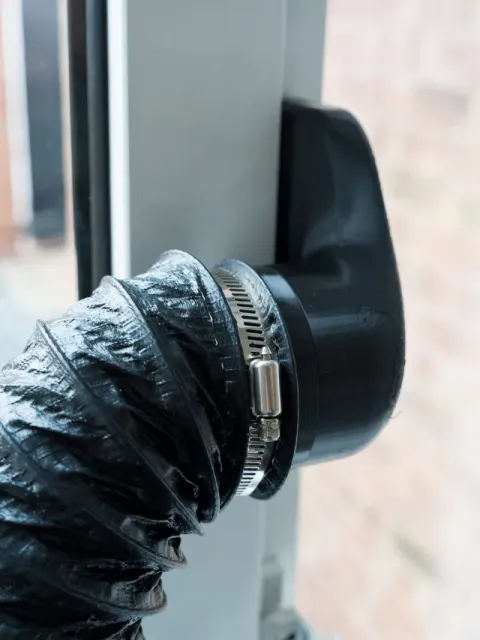

Comes with quick release coupling for 75mm ducting with groove for jubilee hose clip fastening to provide a tight seal.

There is a template piece available to print which allows you to check the compatibility with your window before committing to the full print.

Recommended to use a material that can handle higher temperatures (e.g. PETG).

Not to be used with air conditioning units - the air flow capabilities are not suitable for anything other than exhausting through the printer.

Руководства и профили печати

Профили печати и шаги

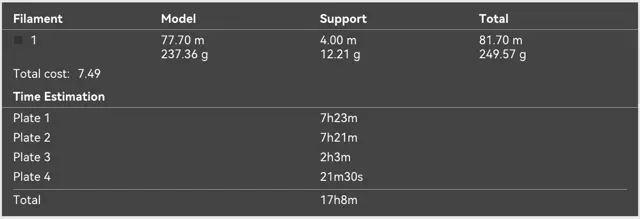

0.12mm layer, 2 walls, 15% infill 0.12mm layer height

Prints with minimal support on duct body

Alternate Orientation - User requested alternate coupling position - Multiple body orientations (1 with less support, 2 with more support if you run into adhesion issues - Opposite hand options available - select the required print plates - Print photo credit to MrShinyX

Another Alternate Orientation - User requested alternate outlet position - Template available for testing the fit. - Opposite hand options available - select the required print plates
