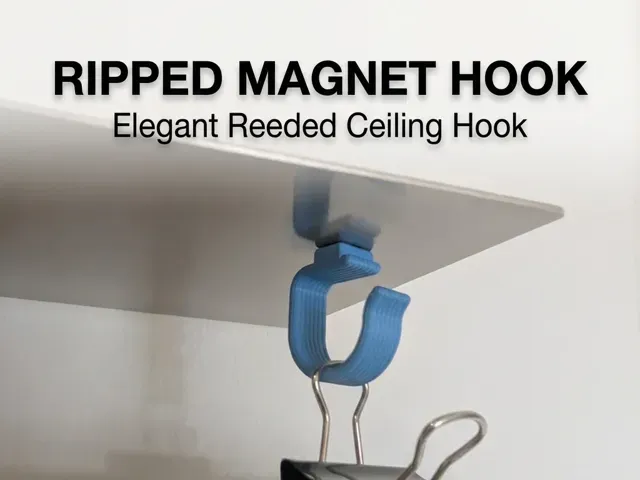

Ripped Magnet Hook Reeded Ceiling Hook No Support

Ripped Magnet Hook - Elegant Reeded Ceiling Hook 6x3mm Magnet

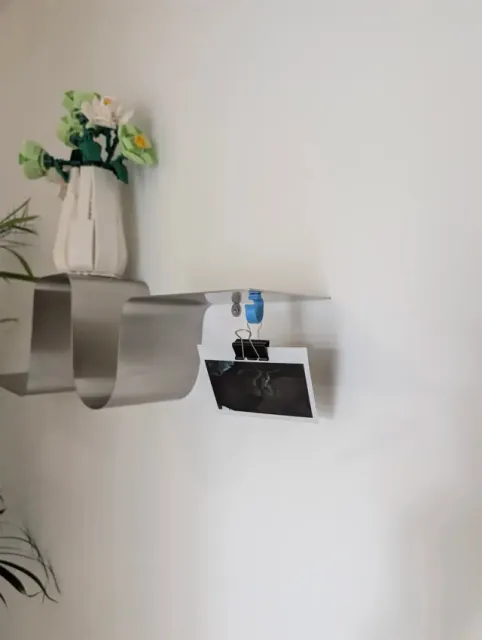

Add a touch of modern minimalism to your workspace, kitchen, or entryway with the Ripped Magnet Hook. This functional ceiling hook is designed to hold onto horizontal metal surfaces (such as shelves, range hoods, magnetic boards, or cabinets) using an embedded 6x3mm cylindrical neodymium magnet.

Featuring a sleek, vertical 7-rib reeded (fluted) texture and a fully rounded cushion-like mounting pad, this hook combines premium modern aesthetics with clever physics to maximize holding power.

========================================

📐 KEY FEATURES & DIMENSIONS

• Anti-Peel Geometry (Aligned Center of Gravity): Normally, hooks peel off under load because of leverage. The Ripped Magnet Hook is designed with a J-curve where the lowest hanging point is perfectly aligned on the vertical axis of the magnet. The load pulls straight down in pure tension, maximizing the magnet's holding force.

• 10mm Width: The hook has a total width of 9.96mm (diagonal of ~10.3mm). It is optimized to easily hang items with rings starting from 11mm inner diameter (like key rings, lanyard loops, binder clips, or kitchen utensils).

• Fully Rounded (No Sharp Edges): Every exposed edge of the mounting pad has a 1.0mm fillet, and each of the 7 ribs ends in smooth hemispherical domes.

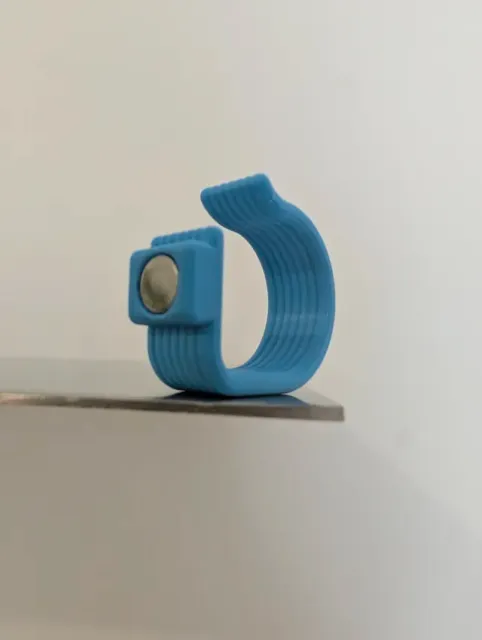

• Neodymium Magnet Pocket: Designed for a standard 6mm diameter x 3mm thick cylindrical magnet. The pocket is sized at 6.15mm to allow a tight press-fit.

========================================

🖨️ RECOMMENDED PRINT SETTINGS

This model is fully optimized for 3D printing without any support structures:

• Orientation: Print flat on its side (Z-axis lying flat on the print bed). • Supports: NONE! Since the magnet pocket lies horizontally during the print, its small 6.15mm diameter can easily be bridged by any modern printer. • Material: PETG (highly recommended for mechanical strength/toughness) or PLA (for great colors). • Layer Height: 0.2 mm (or 0.16mm for extra-fine ribs). • Wall Loops (Perimeters): 4 to 5 walls (makes the thin hook section 100% solid and strong). • Infill: 20% to 30% (Gyroid or Grid).

========================================

🔧 ASSEMBLY INSTRUCTIONS

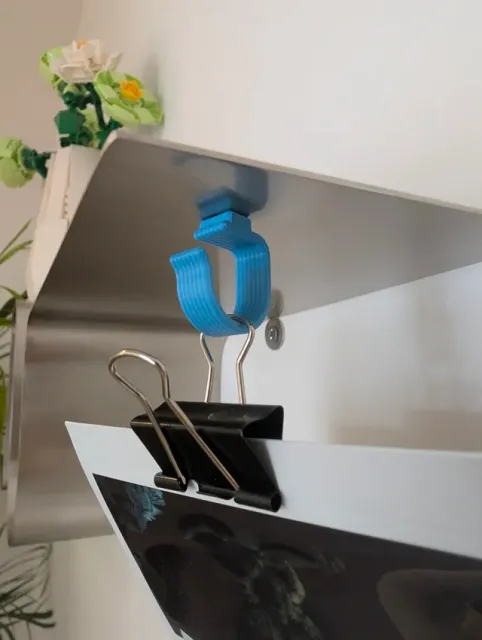

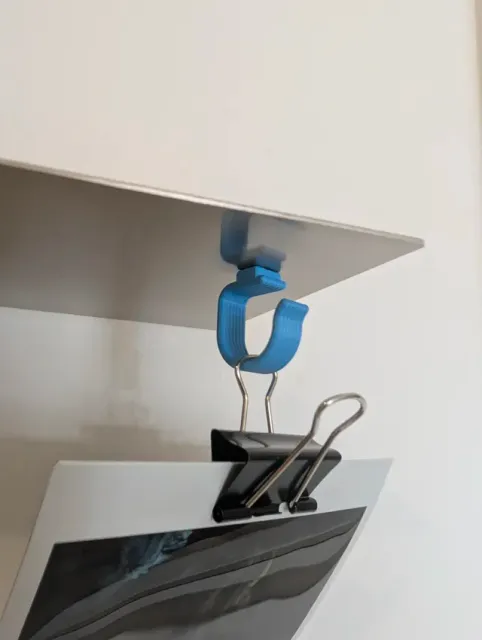

1. Insert the Magnet: Press your 6x3mm cylindrical neodymium magnet into the pocket on the flat top side. It is designed as a tight press-fit. If needed, use a pair of pliers (with soft jaws or cloth to protect the plastic) to press it flush. A tiny drop of superglue ensures a permanent lock. 2. Mount: Attach the flat side of the hook to any horizontal steel sheet or shelf. 3. Hang: Slip your key ring, binder clip, or utensil over the hook. Enjoy a clean, floating look!
