Автор:Core Designs

Опубликована

Описание

Update: Thanks for all the support everyone! The CanToon MAX print profile is out now!

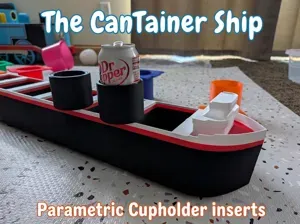

- Wider pontoon body for more stability - Newer revised screw in design for the cupholder (no magnets!) - Two new cupholders including an insulated version to keep your drink colder and a koozie compatible version that will support using your own koozie up to 95mm in diameter (please send me dimensions of the koozies if you need something more tailored) - Revised bimini to fit the wider frame Looking for something LARGER? Head to this link to check out the CanTainer ship !

⚓ CanToon: The Ultimate Floating Pontoon Beverage Holder!

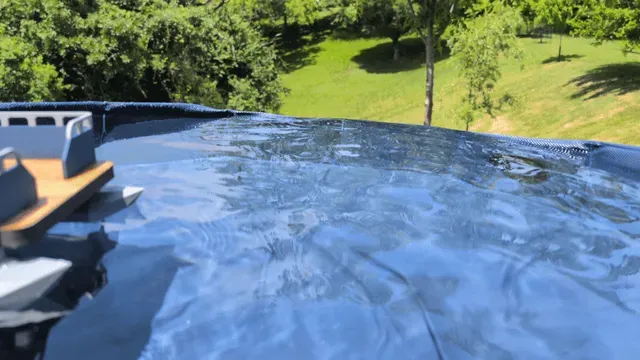

Turn your pool, lake, or hot tub into a miniature marina with CanToon —the functional, 3D-printed mini pontoon boat designed to hold your drink while you relax! Print in your favorite colors and post the results to show off your style!

Key Features

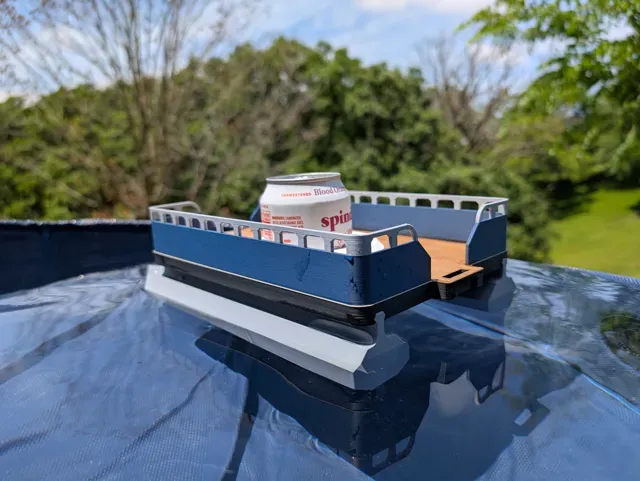

- Rock-Solid Buoyancy: Features dual high-volume pontoon hulls designed to perfectly balance a standard 12oz can without tipping. - The "CanToon" Deck: A large deck surface with realistic safety railings to keep your beverage secure while it drifts. - Motor-Ready Design: Want some speed? The stern features an integrated mounting point designed specifically to fit a Bambu Lab Hand Crank Motor , letting you mechanically power your pontoon across the water!

- Magnetic attachments: Use 8 6x3mm magnets to keep the drink holder firmly attached to the pontoon (this is for added stability).  🔧 Print Settings & Assembly Tips

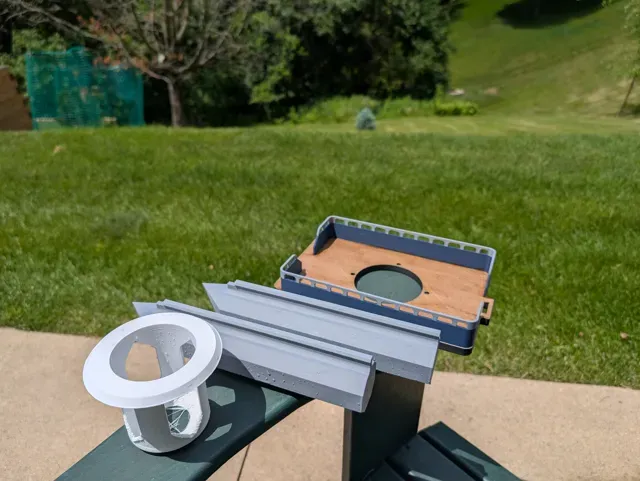

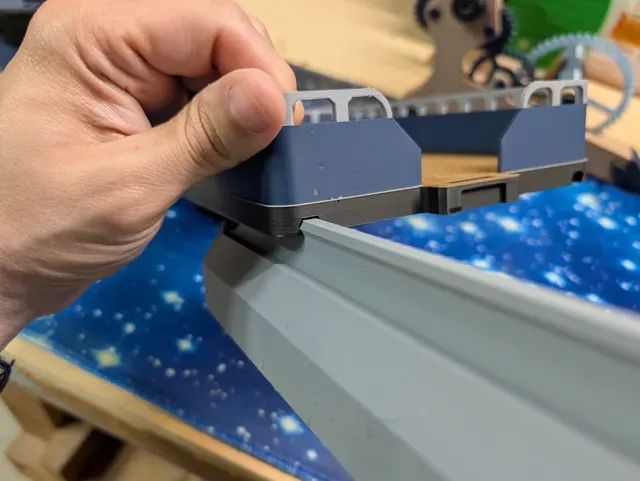

- Material: PETG or ASA is highly recommended for the hulls to ensure water resistance and UV durability under the sun. PLA works great, but don't leave it in a hot car! - Infill and walls: High wall count with low infill for the toons to keep them nice and bouyant - Supports: Optimized for clean printing with minimal supports needed. - Assembly: Simply slide the toons in. They are a decnetly tight fit, but I'd suggest adding some glue if you want to keep your toons in place long term. Also press in the 6x3 magnets to keep the cupholder firmly in place while using. Newly added!

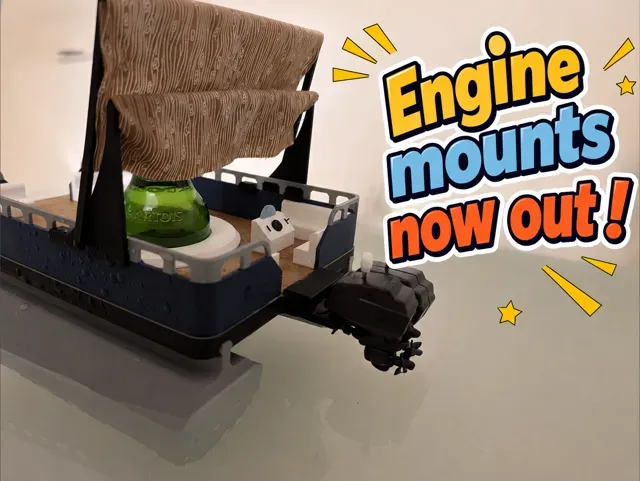

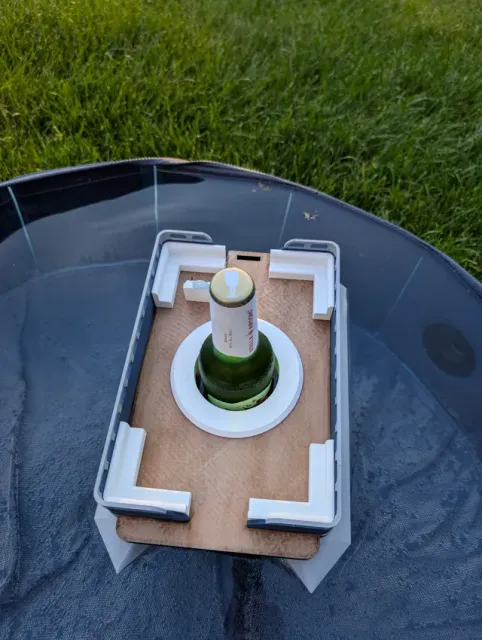

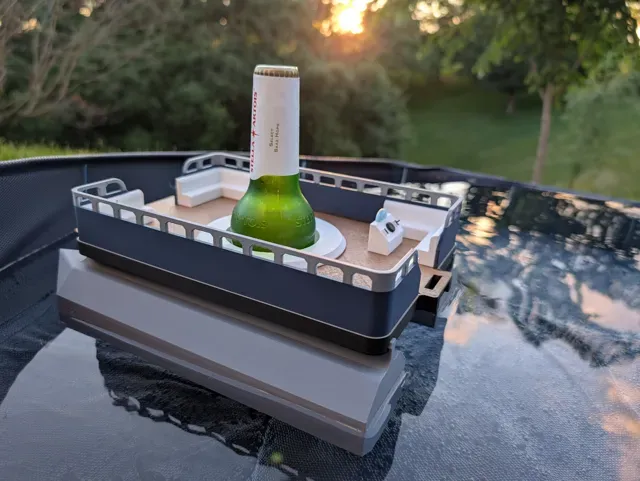

- 🪑 Scale Deck Furniture: Tiny chairs and tables to give it that true party-barge aesthetic. - 🍾 Large Holder Adapter: An interchangeable center insert to securely hold glass bottles and tall cans. (Small toons not recommended) - ⛴️ XXL Toons: Extra large pontoons to keep the craft safely afloat while carrying large bottles and cans. - 🚤 Single and double engine mounts: Add a small crank engine to the back of your pontoon to make it move! Coming Soon!

This is just the maiden voyage for CanToon! I am actively developing modular add-ons to upgrade your vessel. Like and Collect to follow the project

I have a MakeRoad boat kit on preorder right now through Sunlu. When I get that, modifying this project to be RC controlled is the first thing I plan on doing. Hopefully in a way that doesn't make you have to reprint the entire thing (but we'll see)!

Руководства и профили печати

Файлы руководств

Профили печати и шаги

Everything in one profile .2mm Layer height. Varying infill settings for the toons and other components.

Pontoon accessories .2mm layer height, 2 walls 15% gyroid infill

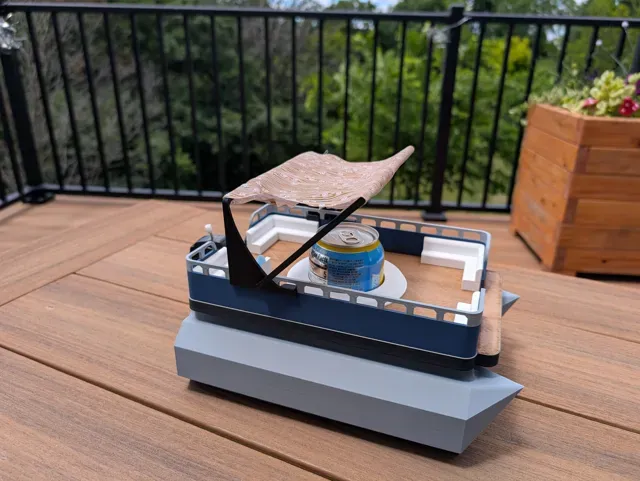

Comes with a Bimini top, 4 chairs and one helm for the captain of the ship

CanToon XL - Large floats and taller drink holder Larger floats that hold drastically more weight, and a larger holder for bottles or tall cans. Also a motor mount for 2 crank motors

3 walls, 3% gyroid on the toons, 2 walls 15% gyroid and supports on the drink holder.

CanToon MAX Floats have 3% gyroid infill, everything else is standard 2 walls, 15% infill.

Pick the cupholder that works for you. The Insulated holder has a thick double wall design that acts like a can koozie. The koozie holder can hold any koozie under 95mm in diameter. Tall cups like Stanleys will still most likely be too topheavy to be stable, but I haven't tried that!

Yeti Slim Koozie (MAGNET VERSION) Manual supports on

.2mm layer height

15% Gyroid
