Elastic Band Launch Jet Glider
Elastic Band Launch Jet Glider — Фото 2 из 5
Elastic Band Launch Jet Glider — Фото 3 из 5
Elastic Band Launch Jet Glider — Фото 4 из 5
Elastic Band Launch Jet Glider — Фото 5 из 5
3D-модель · MakerWorld

Elastic Band Launch Jet Glider

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 1 498 Лайки
  • 2 132 Загрузки
  • 1 899 Напечатали
  • 4 529 В подборках
  • 45 Бусты
  • 192 Комментарии
  • 0 Просмотры

Автор:LoganForgeMods

Опубликована

Скачать на MakerWorld

Описание

Boost Me If you enjoy this design, please consider leaving a rating, sharing your make, and giving it a Boost. Your support helps fund future designs and improvements.Thanks Take to the skies with this Elastic Band Launch Jet Glider!

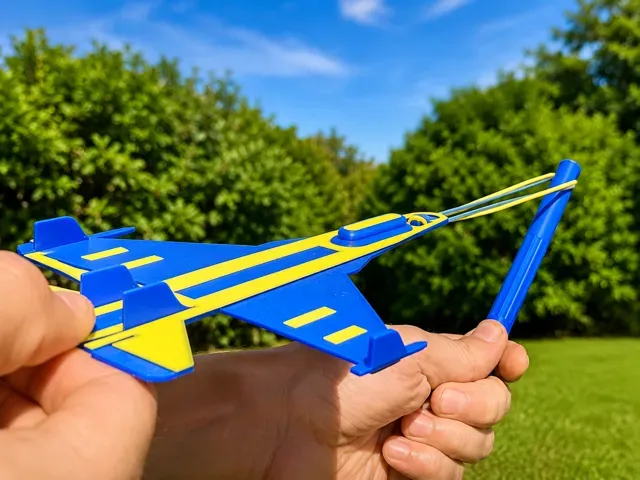

Designed for fun, simplicity, and repeatable flights, this jet-inspired glider launches using a reusable elastic band launcher. Simply hook the glider onto the launcher, pull back, aim, and release for impressive flights across gardens, parks, and open spaces.

The design features a lightweight airframe, reinforced launch point, and a comfortable launcher grip for easy operation. Multiple colour sections are built into the model, making it simple to create your own custom colour combinations directly in your slicer.

Modifier meshes are included in every print profile and are used to fine-tune the weight distribution and balance of the glider. These modifiers are an important part of the design and help achieve the intended flight characteristics and stability.

Features

- Elastic band powered jet glider - Reusable launcher included - Lightweight flight-ready design - Reinforced launch point - Easy assembly - Multi-colour friendly design - Compact and portable - Great for outdoor fun - Suitable for all skill levels Always launch in open outdoor areas away from people, animals, vehicles, buildings, and fragile objects.

Now with dedicated A1 Mini profile

Note: This is a redesigned version. The Launching stick has been significantly strengthened compared to the original after user feedback.

If you enjoy practical 3D printable designs, be sure to follow me on MakerWorld. I regularly release functional prints, flying toys, PC accessories, household solutions, and unique maker projects, so you won't miss future uploads and updates.

Membership  Want to sell these prints? Join my Membership/Commercial Club to get full commercial rights to sell physical versions of this pack and all my other models!

Руководства и профили печати

Профили печати и шаги

Blue and Yellow 0.2mm layer, 2 walls, 5% infill Print Information

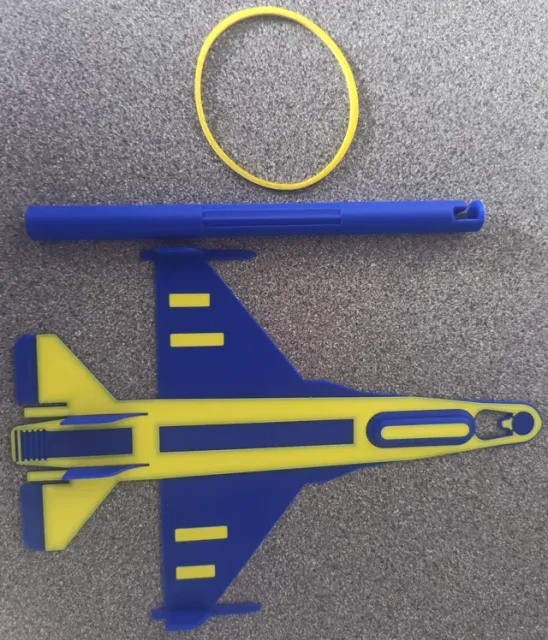

- Designed for PLA - Print glider and launcher separately - Uses a standard elastic band - Modifier meshes are included in every print profile for weight tuning and balance adjustment - Colours can be easily changed in your slicer to create custom colour combinations - The stick has now been increased to 4 walls 75% infill

Black and White 0.2mm layer, 2 walls, 5% infill Print Information

- Designed for PLA - Print glider and launcher separately - Uses a standard elastic band - Modifier meshes are included in every print profile for weight tuning and balance adjustment - Colours can be easily changed in your slicer to create custom colour combinations - The stick has now been increased to 4 walls 75% infill

Black and Green 0.2mm layer, 2 walls, 5% infill Print Information

- Designed for PLA - Print glider and launcher separately - Uses a standard elastic band - Modifier meshes are included in every print profile for weight tuning and balance adjustment - Colours can be easily changed in your slicer to create custom colour combinations - The stick has now been increased to 4 walls 75% infill

A1 Mini - Blue and Yellow 0.2mm layer, 2 walls, 5% infill Print Information

- Designed for PLA - Print glider and launcher separately - Uses a standard elastic band - Modifier meshes are included in every print profile for weight tuning and balance adjustment - Colours can be easily changed in your slicer to create custom colour combinations - The stick has now been increased to 4 walls 75% infill

A1 Mini - Black and White 0.2mm layer, 2 walls, 5% infill Print Information

- Designed for PLA - Print glider and launcher separately - Uses a standard elastic band - Modifier meshes are included in every print profile for weight tuning and balance adjustment - Colours can be easily changed in your slicer to create custom colour combinations - The stick has now been increased to 4 walls 75% infill

A1 Mini - Black and Green 0.2mm layer, 2 walls, 5% infill Print Information

- Designed for PLA - Print glider and launcher separately - Uses a standard elastic band - Modifier meshes are included in every print profile for weight tuning and balance adjustment - Colours can be easily changed in your slicer to create custom colour combinations - The stick has now been increased to 4 walls 75% infill

Optimized Fighter Jet - Smooth Finish A big thank you to the original author for creating the fantastic model

- Top Surface Ironing enabled - Support Top Z Distance increased to 0.26 mm: Expanding this interface gap slightly weakens the bond between the model and any necessary supports, allowing them to snap off effortlessly - Wall Loops increased to 3 - Initial Layer Speed reduced to 35 mm/s: Slowing down the first layer establishes a solid foundation and guarantees perfect bed adhesion - Avoid Crossing Walls enabled - Wall Generator set to Arachne

Теги

elastic bandgliderplanejetlauncherairplaneflying toyoutdoor funtoy planeaerodynamicaviationkids toylauncher gliderflightstemstem planea1mini
