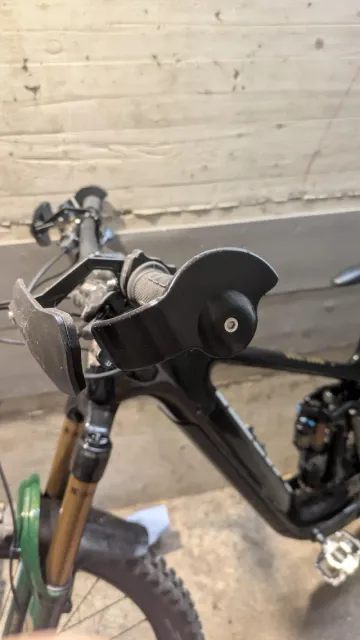

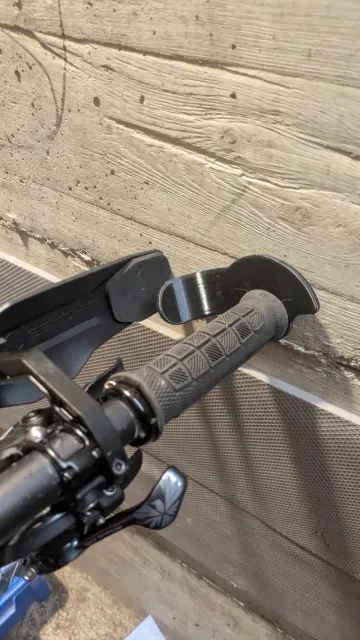

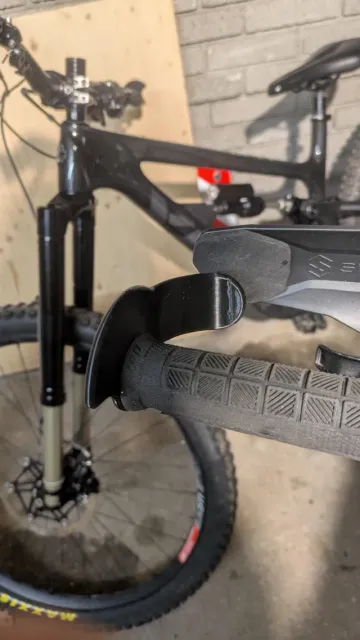

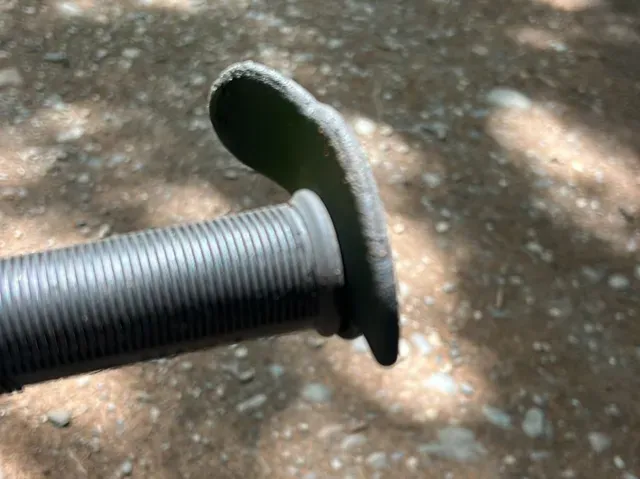

Worldcup MTB Bar Ends Handguard Grip

Gravity MTB Handguard Bar Ends – World Cup Inspired🚀🚀

These MTB handguard bar ends are built for riders who want more control, more support and more confidence on steep, rough and fast terrain.

The shape is designed to support the outside of your hand while riding, helping you keep your hands in a consistent position on the grips. This can make it easier to push the bike into corners, reduce hand fatigue and add extra protection against branches, bushes and side impacts.

This design was developed from real gravity riding experience and tested by a rider who has achieved a Top 11 result at a UCI Enduro World Cup. The goal was simple: create a compact, strong and ergonomic hand support for downhill, enduro and bike park use.

Features🚲

- Ergonomic outer hand support - Helps keep your hands in the correct position - Designed for downhill, enduro, freeride and bike park riding - Can help reduce hand fatigue on long rough descents - Adds extra protection for the outside of the hand and pinky finger - Smooth rounded shape to reduce the chance of catching on branches - Compact gravity-focused design - Made for functional printing and real-world testing Printing recommendations⚙️

For best results, print with a tough material and strong layer adhesion.

Recommended materials:

- PETG for easy and tough prototypes - TPU for a more flexible impact-resistant version - PETG-CF for a stiffer version - PA6-CF race ready Mounting🛠️

-  M5 screw 40-50mm - M5 Nut / M5 heat press insert - washer You need to print a Barend, Squeeze and Endthread

Recommended:

- Barends PETG-CF - Squeeze Cylinder TPU95A - Endthread PETG-CF/PETG

(LOCK) Open End Grip:

Use the Lock Files

print the inner lock squeeze zylinder in tpu

print an thread end (heatpress or nut)

(NONE LOCK) Closed End Grip:

Use the none l ock Files

drill a 5mm hole in the grip end

print the inner none lock squeeze zylinder in tpu

print an thread end (heatpress or nut)

Raceteams or Privateers feel free to contact me on Insta: jonathanlaucher to get more info or custom versions
