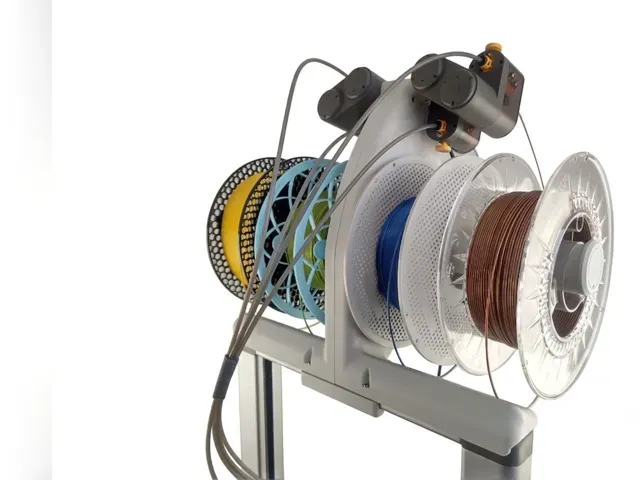

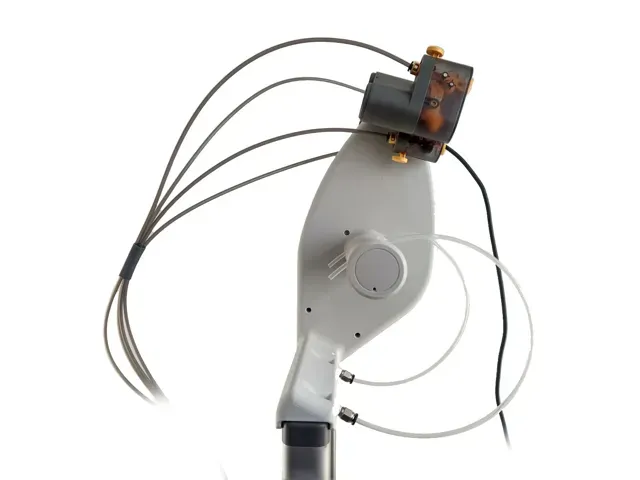

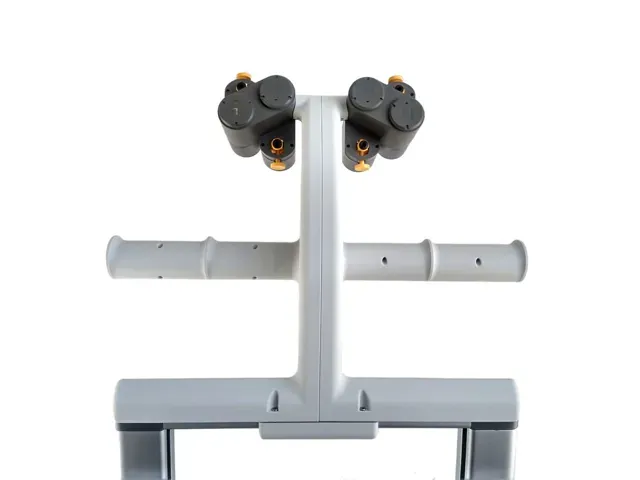

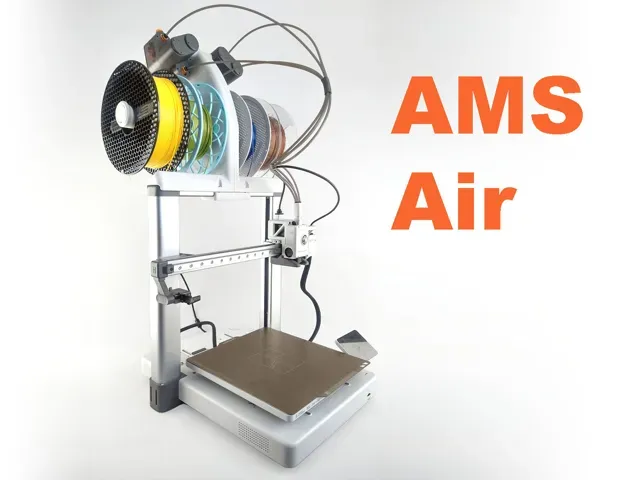

AMS Air - Top mount AMS for A1 and A2L

Caution: I am almost certain that this will also fit the A2L , see below

I wanted a clean way to have four spools on top of my A1 printer and the top mount wasn't for me.

So I designed my own!

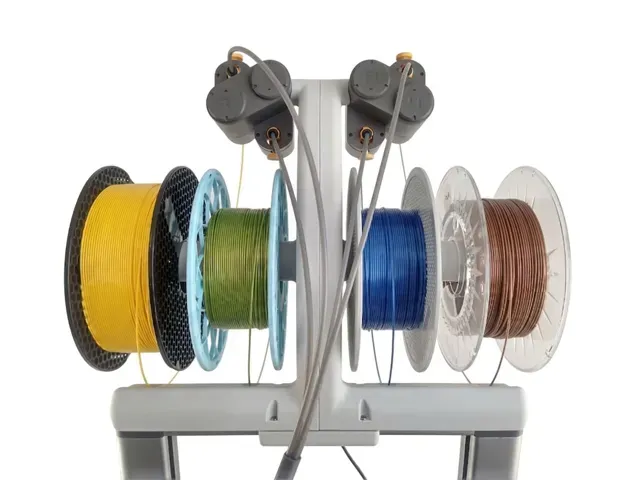

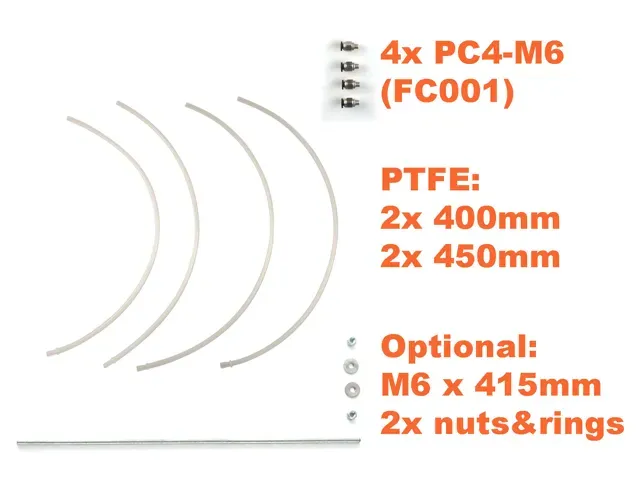

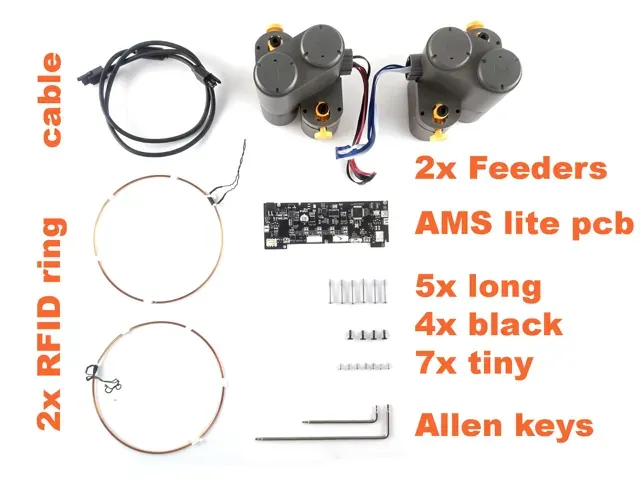

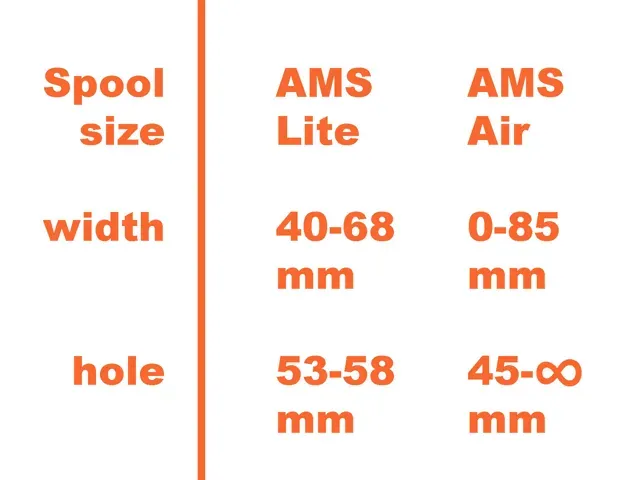

- The AMS Air fits a much wider range of spools - The AMS Air will not drop any spools on your bed during printing - The center two spools have RFID readers - The AMS Air fits within the footprint of the A1 - The AMS Air can also be used as an external spool holder for TPU That said, you do need to disassemble an AMS Lite, but you can always reverse this process. The AMS Air only uses screws from the AMS Lite, the only parts you need extra are four PTFE tubes and pneumatic couplings.

For disassembly of the AMS Lite, see the Bambu Wiki:

https://wiki.bambulab.com/en/ams/maintenance/ams-lite-com

https://wiki.bambulab.com/en/ams/maintenance/ams-lite-body

For assembly see the provided PDF

To replace the center spools you need to temporarily lift off the outer spool but you do not have to retract it fully!

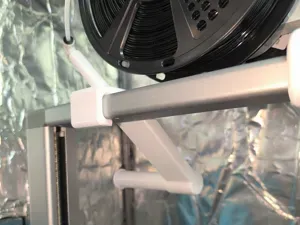

For the A2L: the AMS Air will fit on the top tube, but the cable can be on the shorter side. You can pull it to the side but the best solution would be to get an extension cable.
