Nesting Birdhouse , 32mm hole entrance

Magnetic Nesting Birdhouse | Removable Door | 32mm Bird Entrance

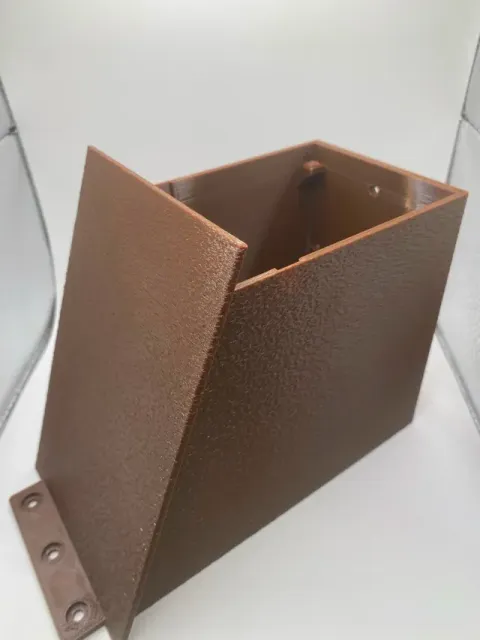

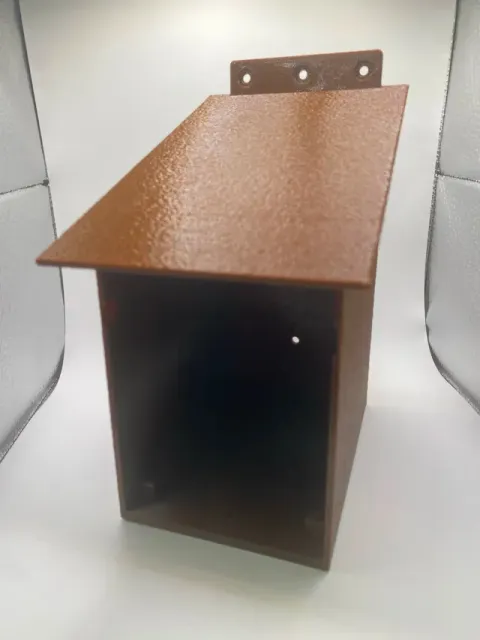

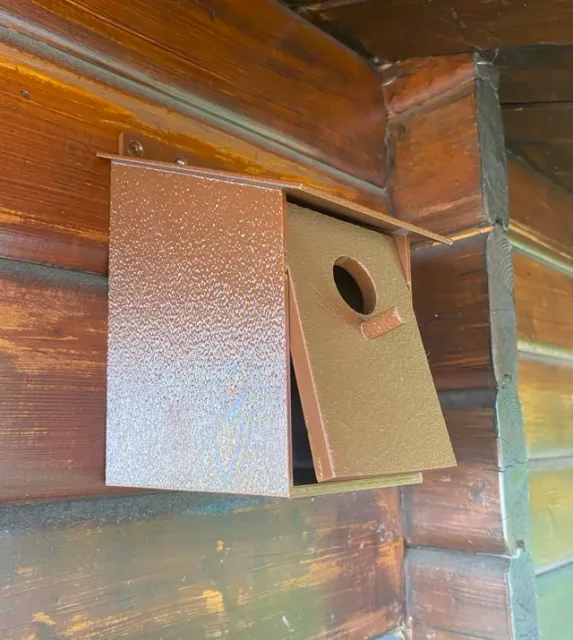

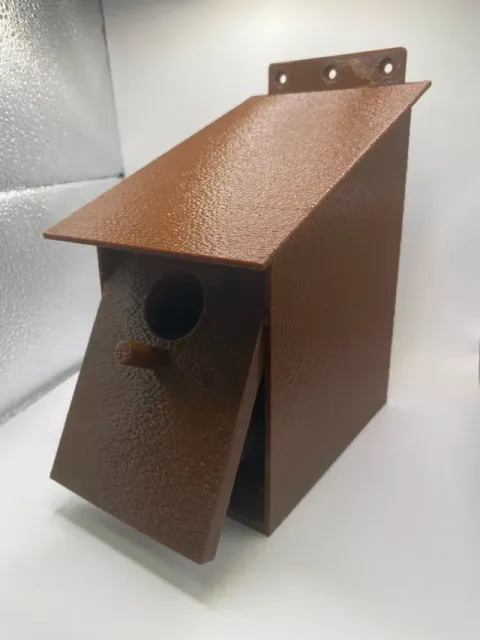

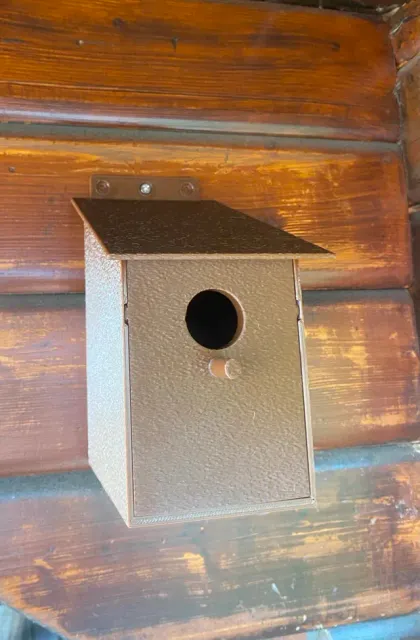

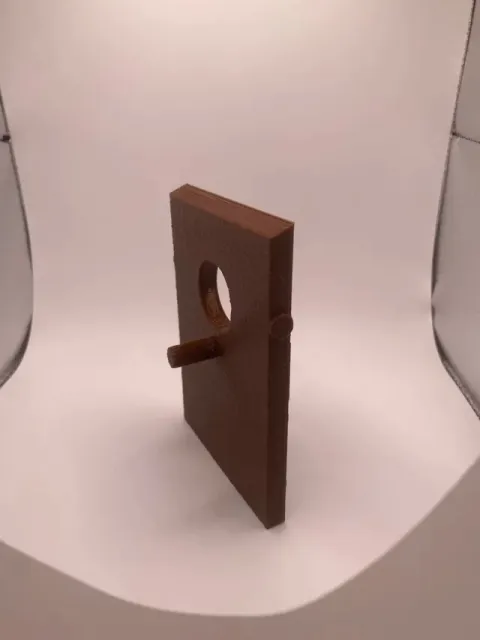

Give your garden birds a safe and durable nesting place with this modern 3D printed birdhouse. Designed for easy maintenance, the front access door swings open and is securely held closed with embedded magnets, making seasonal cleaning quick and tool-free.

The model is designed specifically for PETG and features a Fuzzy Skin exterior, giving it a natural wood-like appearance while helping to disguise layer lines.

🐦 Features

- 32 mm bird entrance with integrated perch - Hinged, removable front access door secured with magnets - Easy access for annual cleaning and inspection - Designed for outdoor use when printed in PETG - Fuzzy Skin exterior for a realistic wood-like finish - Rear wall-mount slot for easy installation - Designed with minimal support material to reduce waste and print time 📏 Dimensions

Specification Size

Length 170 mm

Width 100 mm

Overall Height 220 mm

Front Height 130 mm

Bird Entrance 32 mm

🧲 Magnets

The birdhouse requires only 4 neodymium magnets :

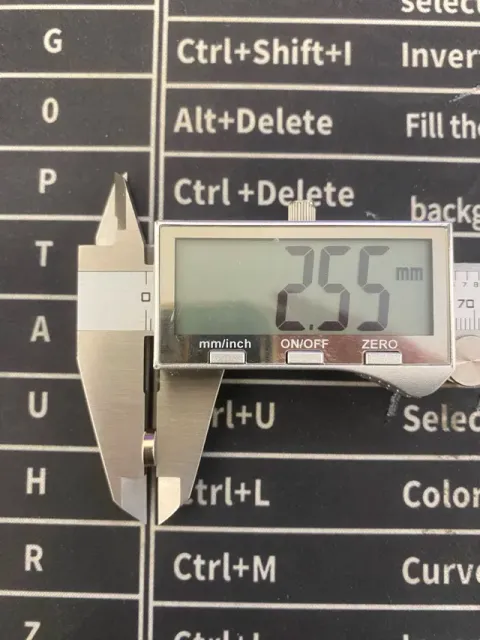

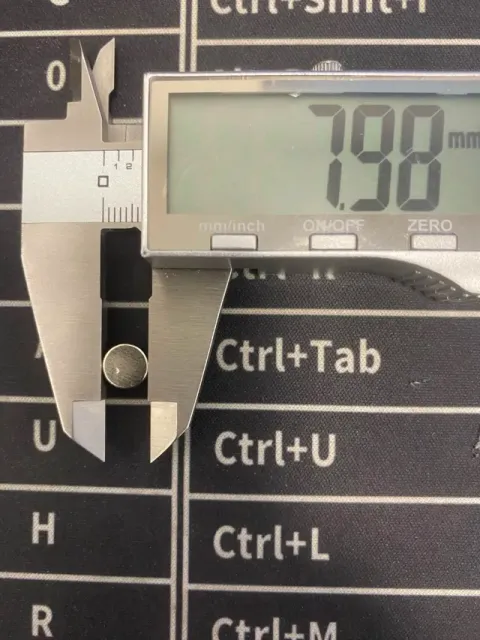

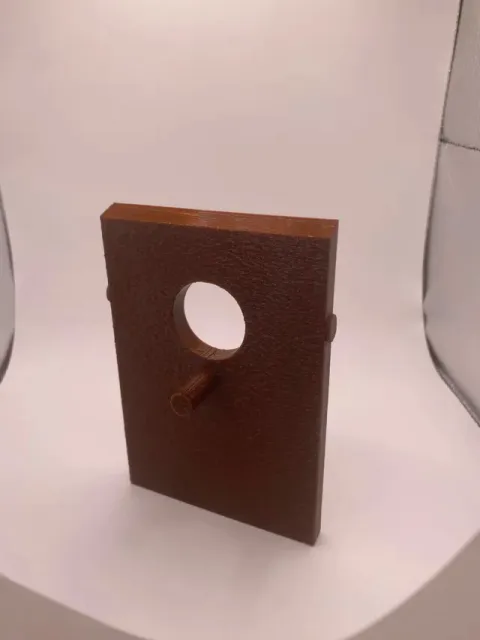

- 2 magnets in the removable door - 2 magnets in the birdhouse body Magnet size: 8 mm × 2.5 mm

The magnets in the door are designed with a snug interference fit and generally do not require glue .

The magnets in the birdhouse body may benefit from a small drop of CA (super) glue, as the print head can occasionally lift a magnet while sealing the pocket during printing.

Tip: Before inserting the magnets, check the polarity so the door closes correctly.

🖨️ Printing

Recommended material: PETG

The supplied 3MF slicer project includes:

- ✔ Optimized print orientation - ✔ Support blockers already configured - ✔ Two programmed pauses for magnet installation - ✔ Minimal support material For the cleanest supported surfaces, I printed the model using PLA Support as the support interface with PETG as the model material. This provides an excellent finish on the supported surfaces and allows the supports to separate easily.

Printer Settings

- Optimized for a 0.6 mm High Flow nozzle . - The model can also be printed with other nozzle sizes by adjusting the slicer settings to suit your printer. - Fuzzy Skin enabled on the exterior surfaces for a natural wood-like appearance. 🔧 Assembly

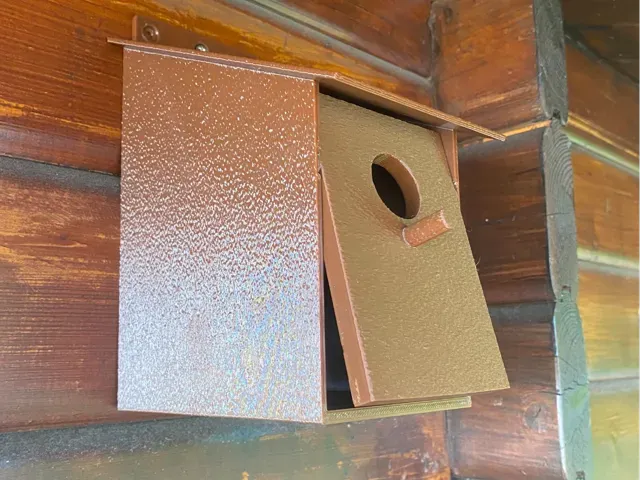

- Print the model using the supplied 3MF file. - At the first programmed pause , insert the 2 magnets into the removable door . - Resume the print. - At the second programmed pause , insert the 2 magnets into the birdhouse body . - Check that the magnet polarity is correct before resuming the print. - If desired, apply a small drop of CA (super) glue to the body magnets. - Resume the print to complete the birdhouse. Once completed, the front door swings open for easy seasonal cleaning while remaining securely closed by the magnetic catch.

🐤 Suitable For

The 32 mm entrance is suitable for many small cavity-nesting birds, including:

- Great Tit - Blue Tit - House Sparrow - Nuthatch (Suitable species may vary depending on your region.)

💡 Notes

- PETG is highly recommended for long-term outdoor durability and weather resistance. - The design has been optimized to use as little support material as possible while maintaining excellent print quality. - Clean the birdhouse after each nesting season to provide a healthy nesting environment for future occupants. - If you print one, I'd love to see your results! Please upload a photo of your finished birdhouse. - If you enjoy this model, a Like, Rating, Download, or Boost is always appreciated. Your support helps me create more free designs for the community. Happy printing, and enjoy watching your new feathered visitors! 🐦😊
