Extension Legs for DREO DR-HTF007 Tower Fan

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC
Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы
3MFSTL
  • 3 Лайки
  • 6 Загрузки
  • 12 Напечатали
  • 11 В подборках
  • 0 Бусты
  • 5 Комментарии
  • 0 Просмотры

Автор:Tyler B

Опубликована

Описание

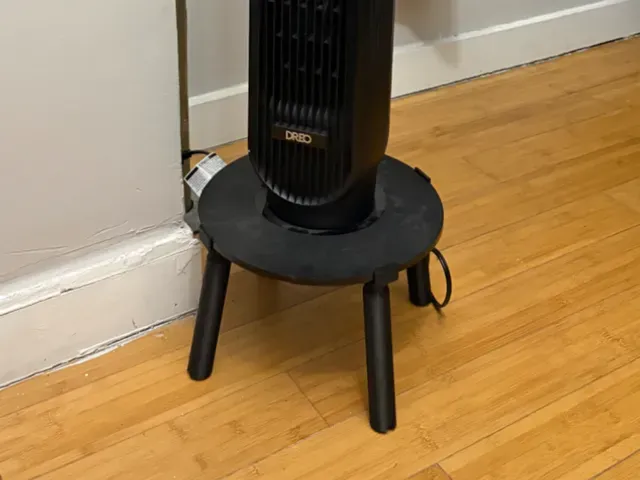

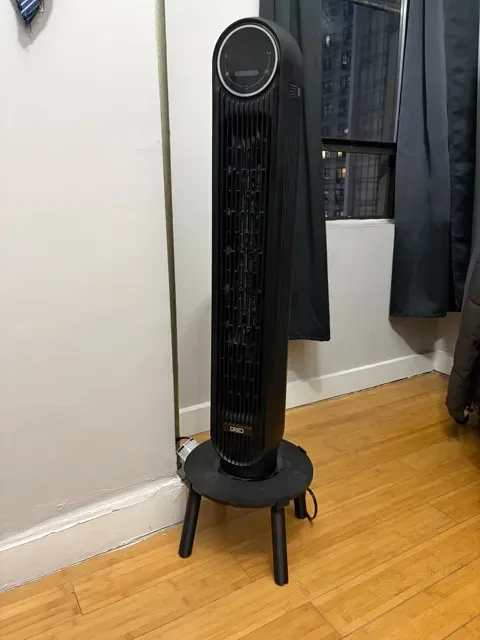

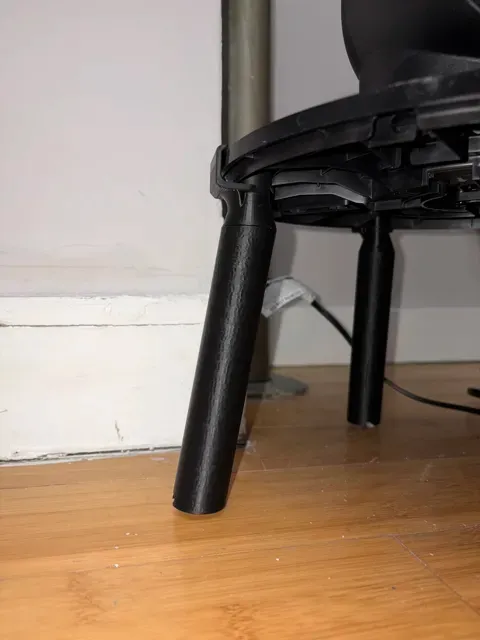

The legs clip onto the base of the fan to add height and throw distance. The legs can be doubled up once to get even more height.

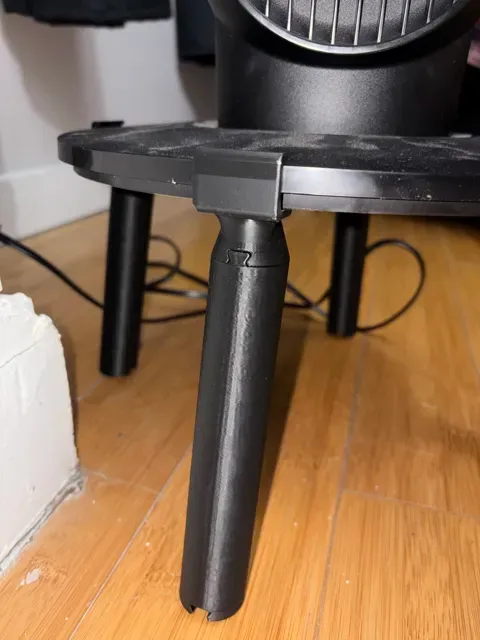

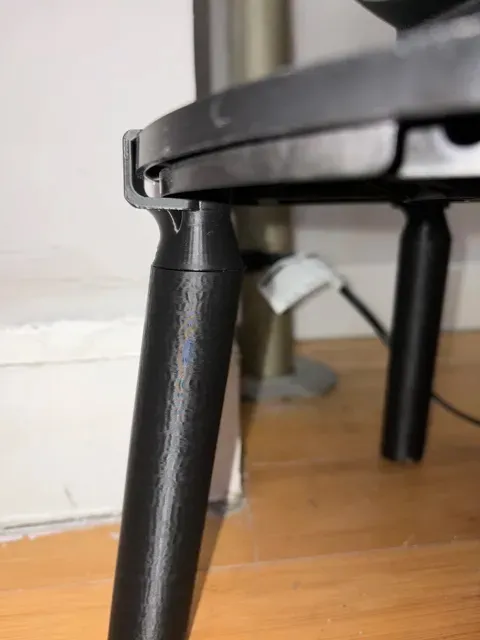

The clip fits over the rubber feet that are already on the fan's base. Then, with very gentle angling and sliding , the clip will snap into place over the top lip of the base.

The clip and legs slide together easily using interlocking joints. The legs have the joint slots on the top and bottom so that more than one leg can be put together to extend the fan even further. However, I recommend two (2) extension legs MAXIMUM . Any longer and the legs will bend too much and might snap.

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 5% infill
