Funsicle (Polygroup) Bayswater Pump Port Adapters
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC-SA
- Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
- Форматы
- 3MF
- 2 Лайки
- 0 Загрузки
- 2 Напечатали
- 1 В подборках
- 0 Бусты
- 0 Комментарии
- 0 Просмотры
Описание
My dad bought a Funsicle pool. Funsicle is made by Polygroup. Polygroup's claim to fame is being one of the largest artificial Christmas tree manufacturers on the planet. This should tell you everything you need to know about the included pump.
The bundled filter does technically move water. Whether what it's doing qualifies as "filtration" is a philosophical debate I'll leave to people with more patience than me.

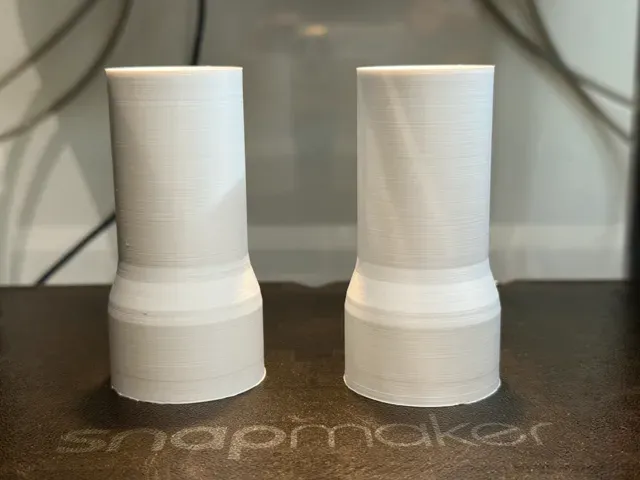

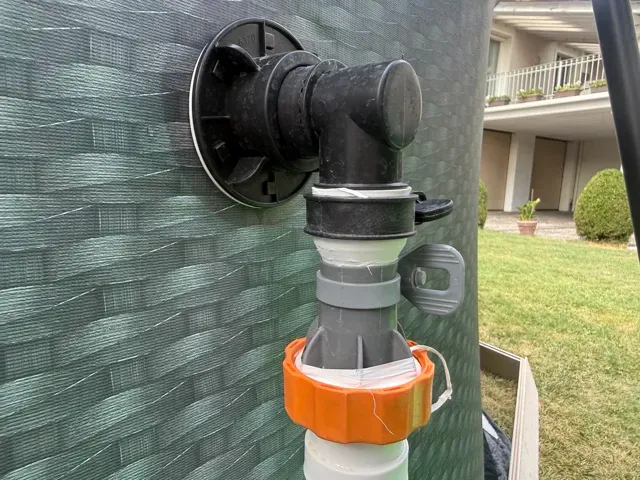

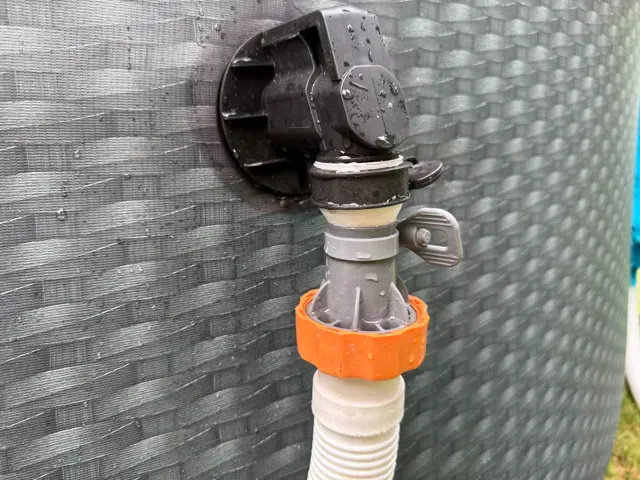

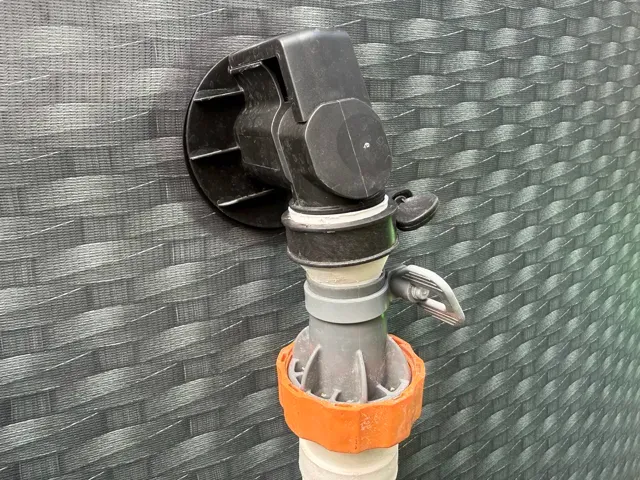

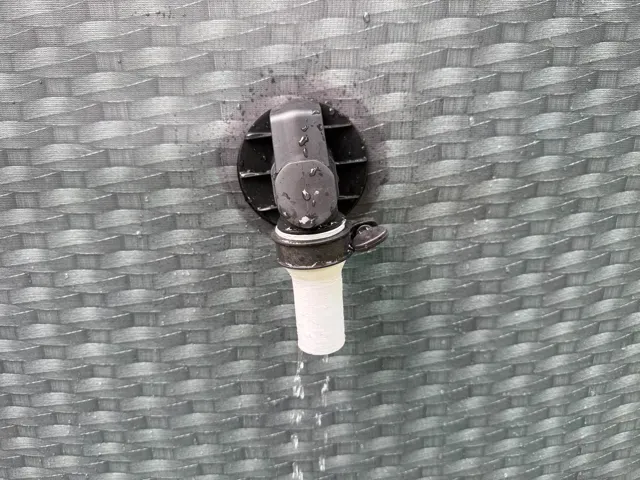

He already had a decent Bayswater pump. The Funsicle wall fittings, naturally, speak a proprietary dialect of "round tube." So I designed two adapters: one for the inlet port, one for the outlet port.
Why PP? Polypropylene is chemically inert to chlorinated water and pool chemicals, doesn't embrittle under UV the way PLA does, and won't dissolve into your dad's pool over a summer. It's the correct material. Full stop.
PP printing is a blood sport. Bed adhesion is genuinely hard, warping is real, and your first few attempts may go directly into the bin. I suggest PP. I will not be held responsible for your calluses. If you absolutely can't make PP work, ASA or PETG with a rubber gasket seal is an acceptable compromise. PLA in a chlorinated environment is not.
Note on files: The published 3MF is for Bambu printers, because Polygroup isn't the only company that likes proprietary lock-in. The Snapmaker U1 3MF is in the additional files, alongside the rest of the adult equipment.
Руководства и профили печати
Профили печати и шаги
0.16mm layer, 2 walls, 15% infill 0.16mm layers on PP with a 20mm no-gap brim, because PP will leave the plate the moment you stop paying attention.
Bed adhesive: Magigoo PP. Not optional. Not "any glue stick will do." Magigoo PP. If you're skipping this and wondering why your print is curling off the plate at layer 3, that's between you and your choices.
The brim is wide and gapless by design: PP warps at the perimeter first, and a thin brim is just decorative at that point. Peel it off clean after cooling; the part threads will thank you.
