Parametric Gear Generator (single & Double Gears)

# ⚙️ Ultimate Parametric Gear Generator (Involute & Double/Step Gears)

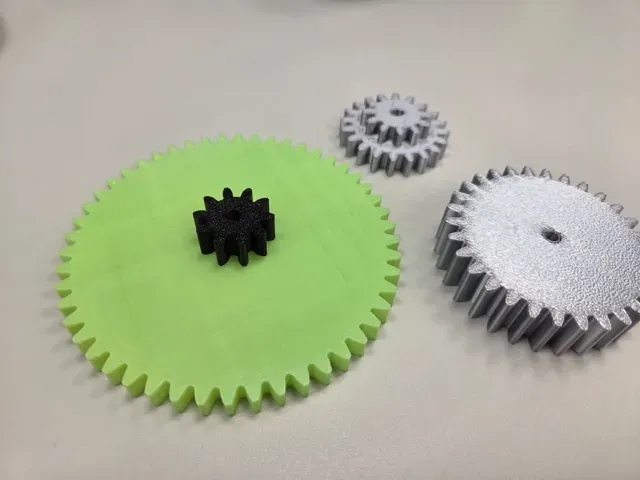

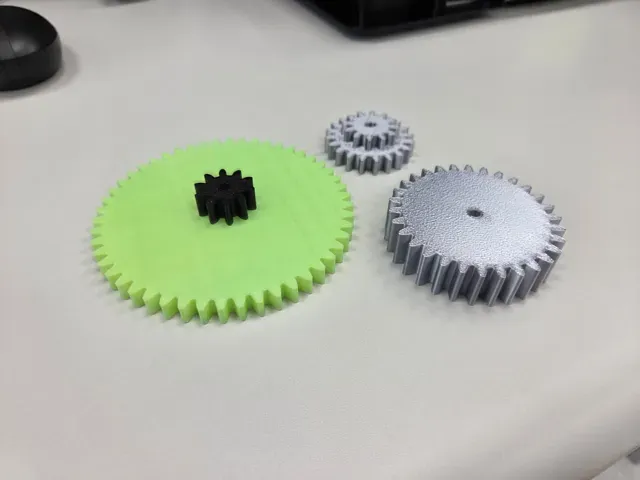

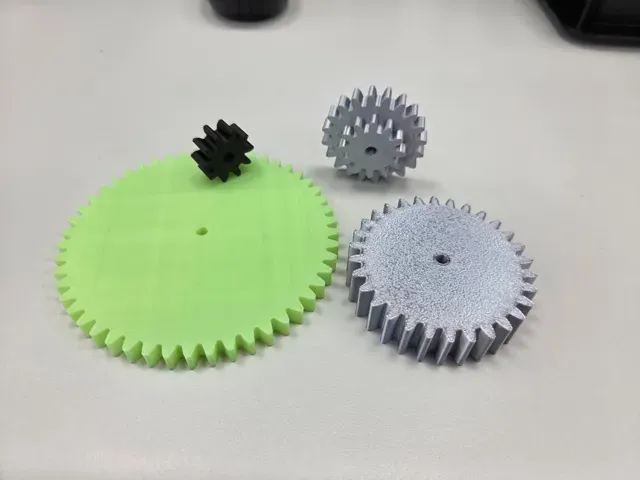

This is a highly precise, fully parametric **Spur Gear and Double/Step Gear Generator** designed specifically for 3D printing and mechanical engineering.

Using the **MakerWorld Customizer**, you can create custom gears directly in your browser without any CAD knowledge! It uses true mathematical **involute tooth geometry**, ensuring smooth rotation, low friction, and maximum durability for your custom gearboxes, robotics, or RC projects.

---

### 🚀 Key Features

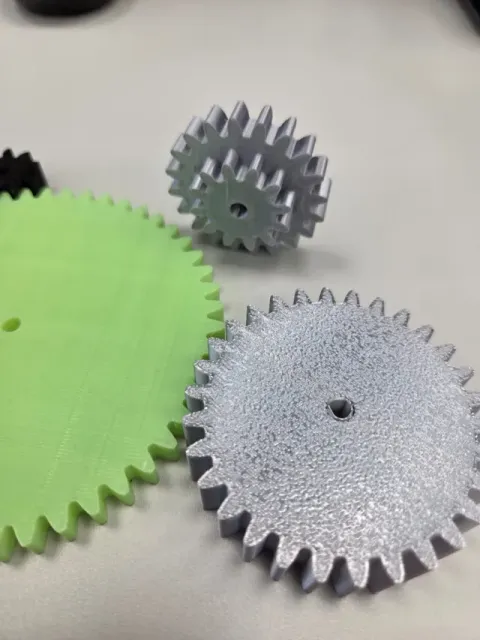

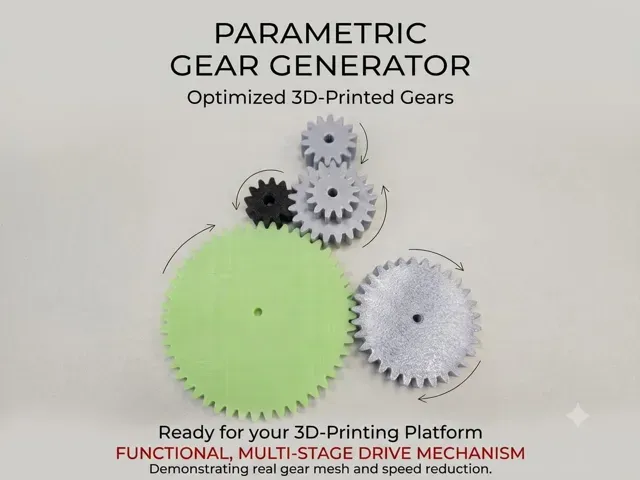

* **True Involute Teeth:** Mathematically correct tooth profiles that roll smoothly without jamming. * **Double / Step Gear Option:** Easily stack two custom gears on a single shaft. Perfect for compound gear trains and high-reduction gearboxes! * **D-Cut / D-Shaft Support:** Toggle a flat side (D-cut) inside the bore to perfectly fit NEMA stepper motors or RC motors. * **Fully Parametric:** Adjust Module (size), Tooth Count, Gear Thickness, and Shaft Diameter with simple sliders. * **No External Libraries:** 100% standalone OpenSCAD script, perfectly compatible with the MakerWorld cloud compiler.

---

### 🔧 How to Customize Your Gear

1. Click on the **Open in Customizer** button on MakerWorld. 2. **Gear 1 (Base):** Set your desired tooth count, thickness, and Module (defines tooth size, standard is 2.0). 3. **Gear 2 (Step Gear):** Check `z2_aktiv` to add a secondary gear on top, or uncheck it for a standard single gear. 4. **Bore & Axis:** Set your shaft diameter. If you use a D-shaft motor, check `d_cut_aktiv` and define the flat width. 5. Click **Generate** and download your 3D-printable `.STL` file!

---

### 🖨️ Recommended Print Settings

* **Material:** PETG, ABS, ASA, or Nylon for functional parts. PLA is fine for prototyping or low-load toys. * **Wall Loops:** 4 to 6 walls (perimeters) for maximum tooth strength. * **Infill:** 40% - 100% (Gyroid recommended). * **Top/Bottom Layers:** 5 layers. * **Cooling:** Keep it balanced to ensure great layer adhesion on the teeth.
