ToughBuilt StackTech - Mount buddy

Boost Me If you like my work, feel free to show your appreciation. Thanks!

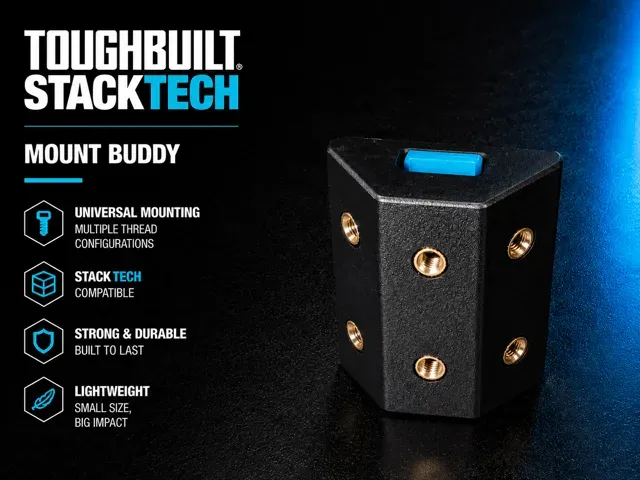

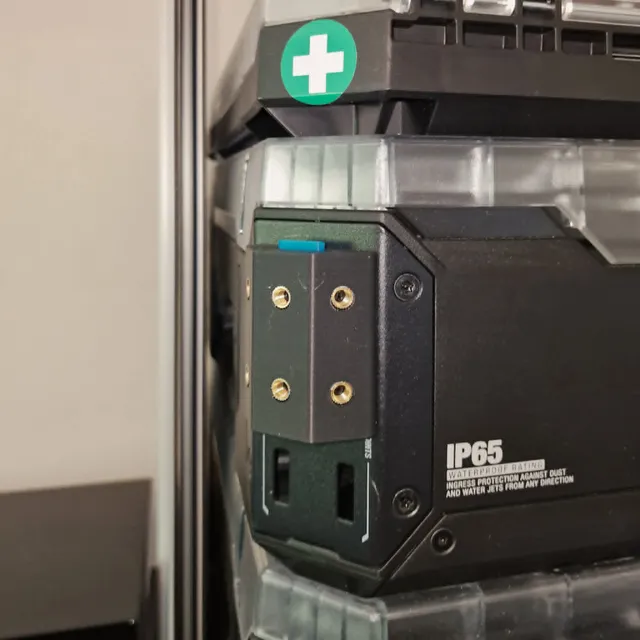

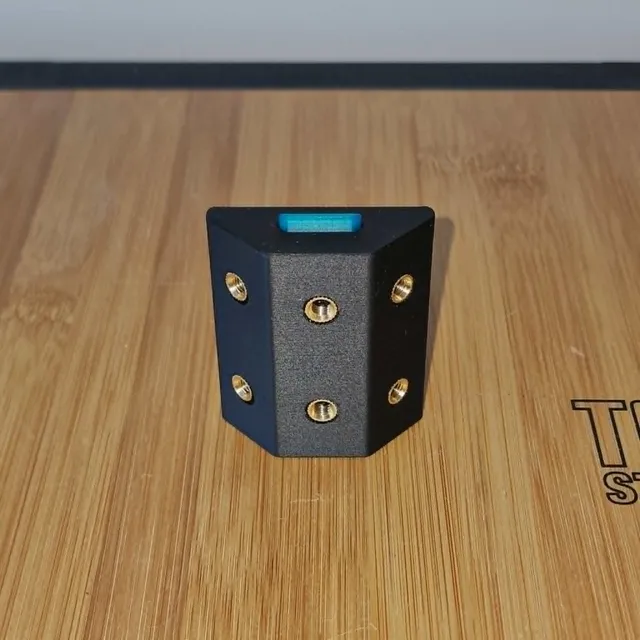

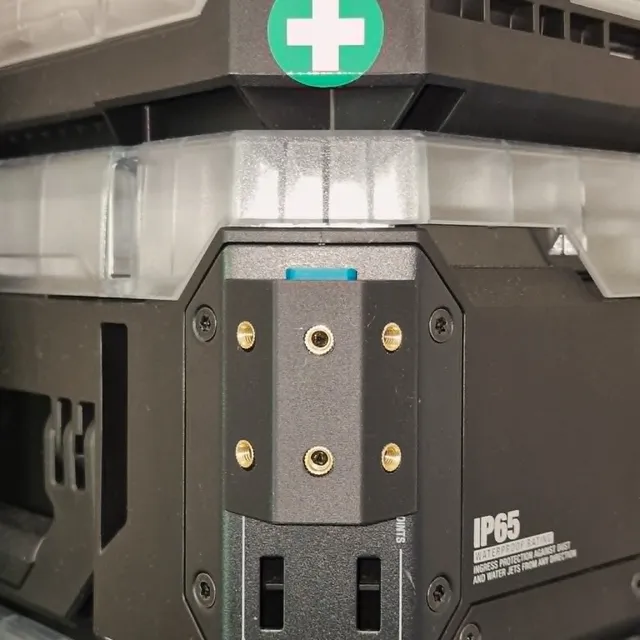

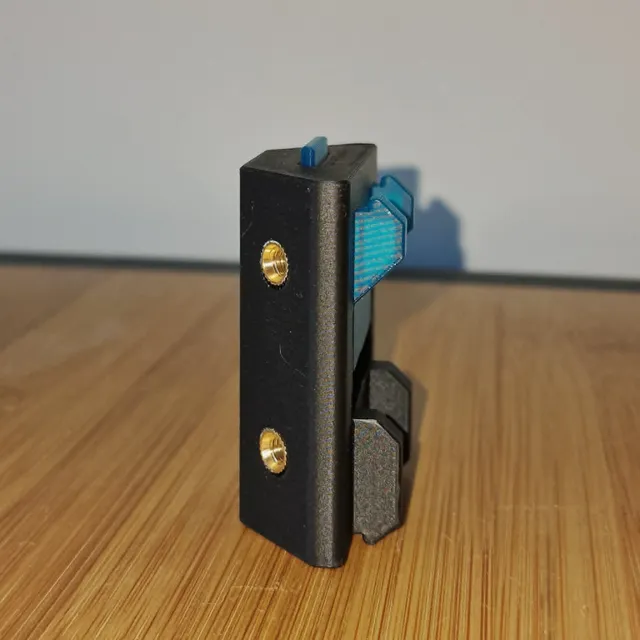

🔗 Detachable mounting buddy!

A sturdy and easily removable solution to adding accessoiries to your Toughbuilt rails! I've included print profiles for both M4 & M5 threaded inserts.

🔩 Required hardware for one piece

For the M4 version:

- 6x M4x5mm threaded inserts - 1x 0.3x4x20 Compression spring For the M5 version:

- 6x M5x5mm threaded inserts - 1x 0.3x4x20 Compression spring

⚙️ Assembly

The provided print profiles will be enough for two mounting buddies. Remove or add to your needs.

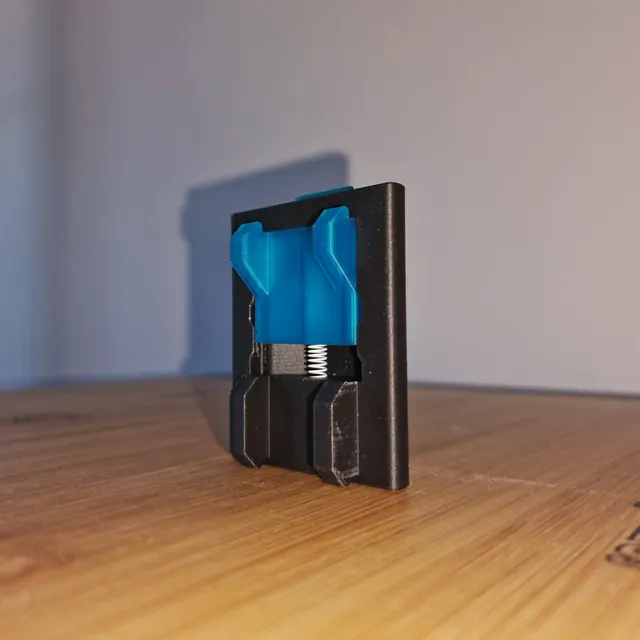

- Put the spring into the reserved hole on the bottom of the slider.

- Lay the pushing pin in the main body with the small part to the top and push it through.

- Press in the spring to its minimum length and put the slider into the main body where the cutouts meet the sliders.

- Release the slider and enjoy!
