Описание

Tired of the original box design taking up too much space?

✨✨✨ If you print it and are happy, I would be grateful if you could rate, like, and boost my print. This motivates me to design more inserts! I spent many hours designing this. Thank you!✨✨✨

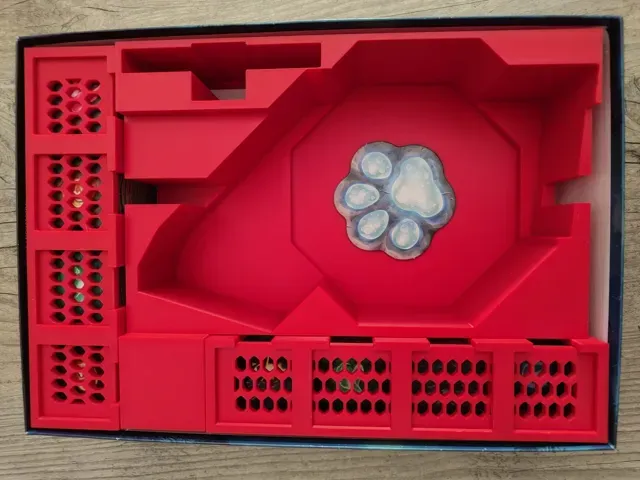

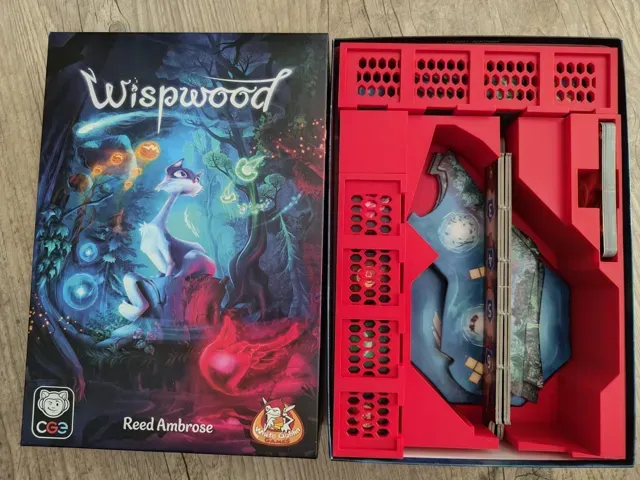

This 3D printed insert keeps your Wispwood components perfectly organized and easily accessible so you can spend less time sorting and more time lighting up the forest. 🐾🔥

Key Features:

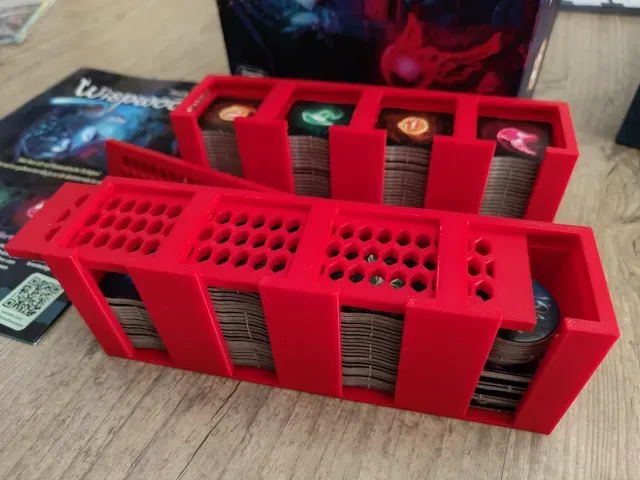

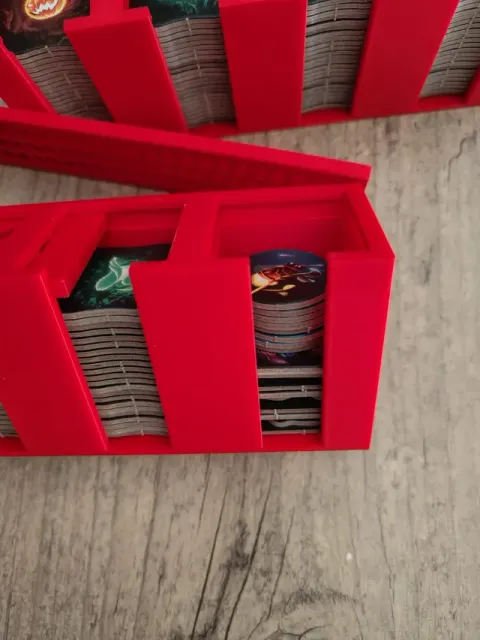

- 🧩 Perfect Fit: Extra space included for promos! Designed perfectly for un-sleeved cards. (Sleeved cards will fit extra height-wise, but may stick out slightly in the width if you don't mind). - 🚫 Anti-Wander: Vertical storage friendly with secure sliding lids. Shake the box, and nothing will fly around! Ideal for people low on storage space, hehe. :-) - 📦 Tile Trays: 3 removable trays that can be taken straight to the table for fast setup. - 🪟 Special Window: Tray 2 features a smaller window in one row specifically for the round cardboard pieces so they don't stick out. Printing & Fit Details:

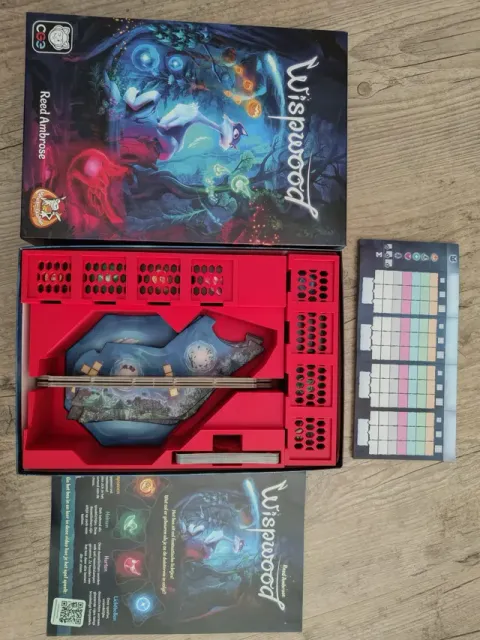

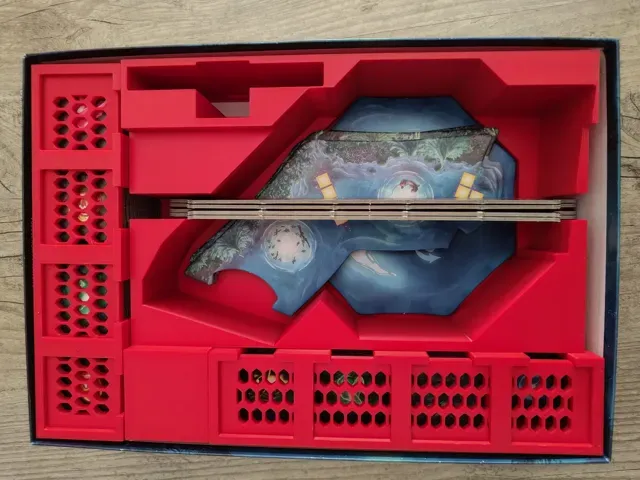

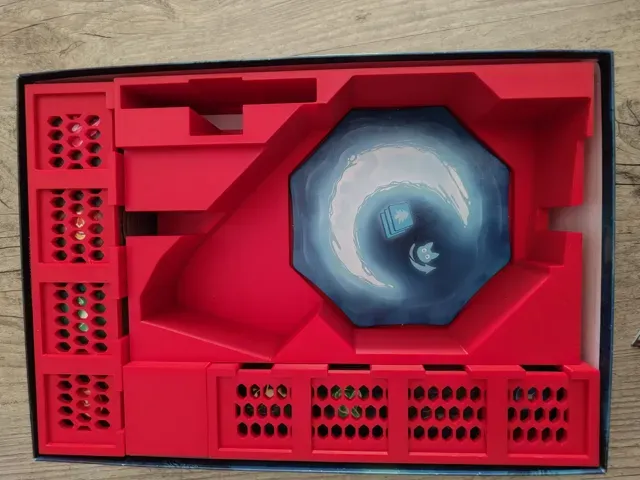

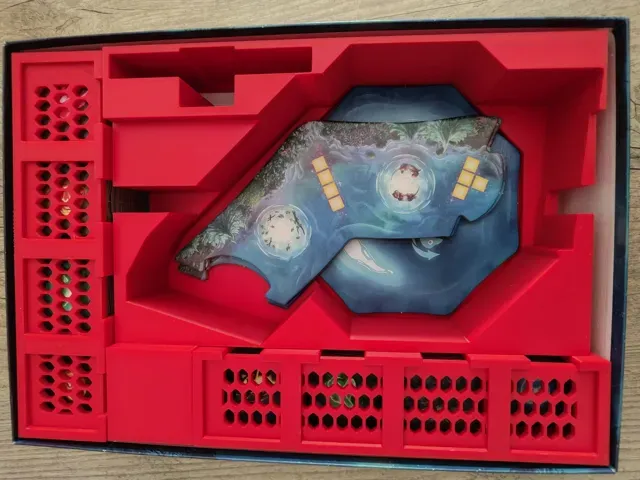

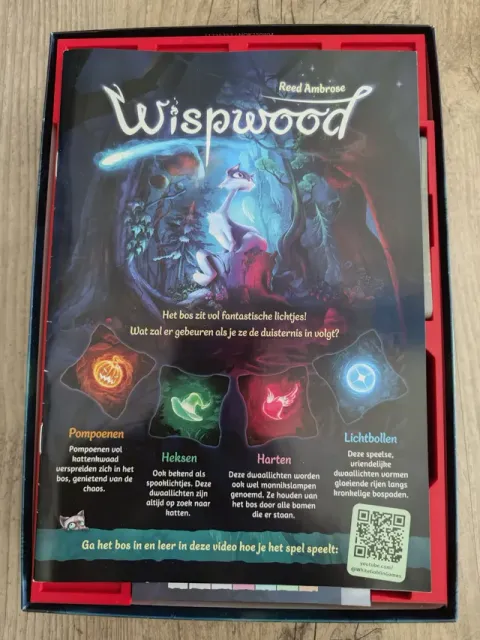

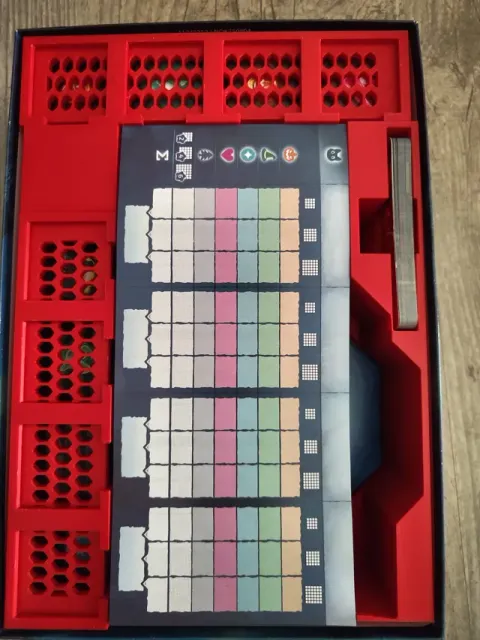

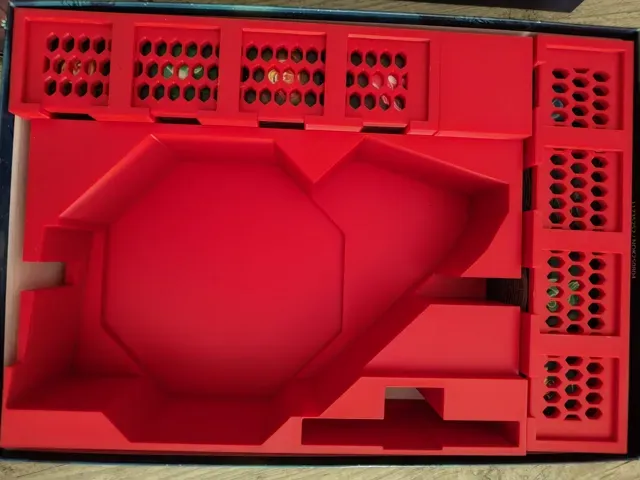

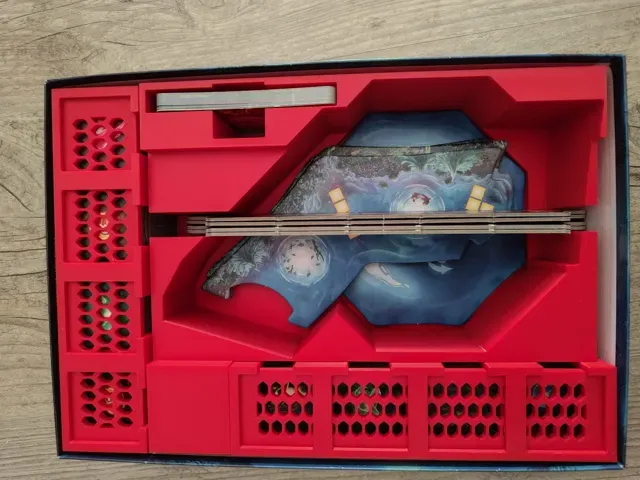

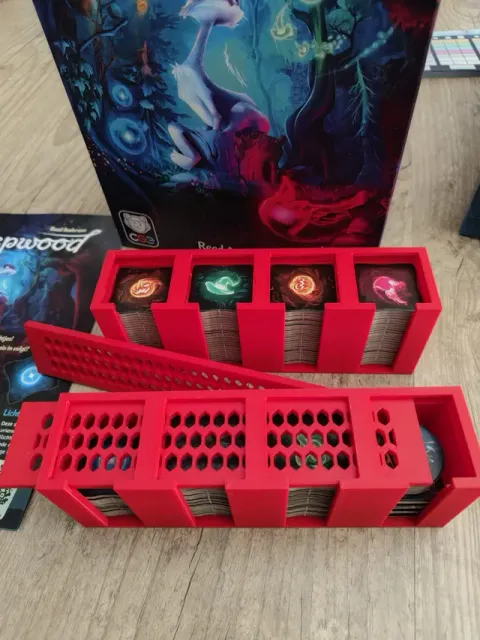

- Print just 3 parts. The tile trays need support for the sliding tray. Remove when the print has cooled down. - Designed around an internal box dimension of approximately 180(/190)×260(/270) mm (accounting for slightly slanted box walls), so it fit really easily without forcing the cardboard walls. - The long cardboard grid pieces hold the big cardboard pieces down, so no lid is needed. The scorepad fits on top. + the manual. No lid lift. - Fits the box easily with no forcing needed. (The box seems wider at the top but is smaller at the bottom so I redesigned till I got this perfect fit.) - If you just want the cardboard box trays they are 180x44x63 with a sliding lid. Box 2 has a row with smaller window for the round cardboard pieces. Boost Me ✨✨✨ If you print it and are happy, I would be grateful if you could rate, like, and boost my print. This motivates me to design more inserts! I spent many hours designing this. Thank you!✨✨✨

Designed for the Dutch version published by White  Goblin Games, CGE Designed around an internal box dimension of approximately 180×260 mm (accounting for slightly slanted box walls), so it fit really easily without forcing the cardboard walls.

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 15% infill You get 4 plates.

-Plate 1: plate with the large pieces for the middle.

The option to print the tile boxes separate or together:

The tile boxes need supports for the sliding tray.

-Plate 2 with the regular box for the tiles (separate print)

-Plate 3 with the tile box, where row 4 has a slightly smaller windows so the round coins don't stick out (separate print)

-Plate 4: plate with the two boxes together if you want to print them at once, IGNORE THIS IF YOU ALREADY PRINTED THEM SEPARATELY
